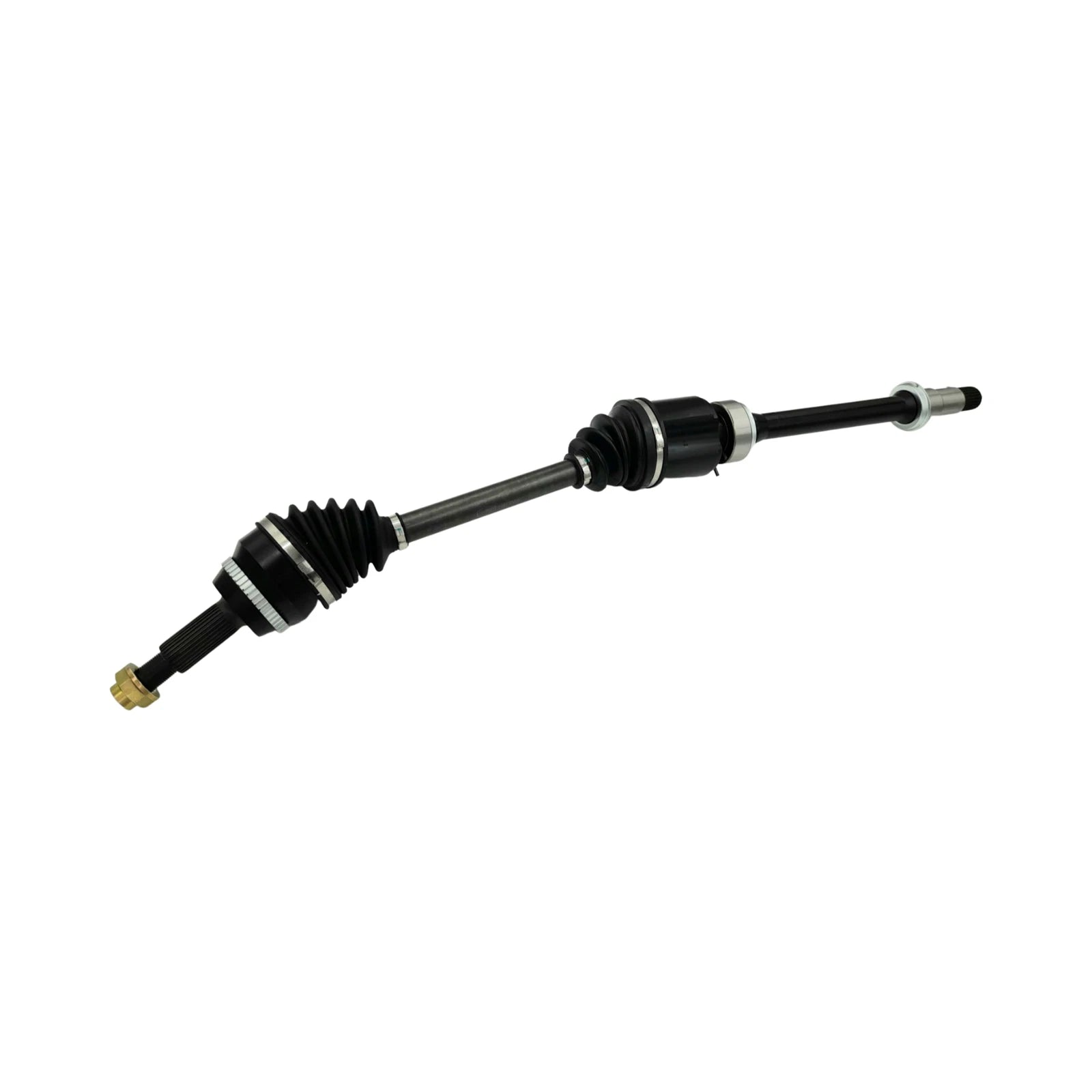

Right Front CV Axle Drive Shaft for Toyota Aurion, Camry Hybrid, Lexus ES300h

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft for CVT/automatic FWD applications. Designed as a direct replacement unit with a compressed length of 978mm. For the longer 1026mm shaft, please refer to part number CVA1169.

COMPATIBLE VEHICLES

• Toyota Aurion 10/2006–03/2012 GSV40R 3.5L 2GRFE 24V DOHC VVT (including Sportivo, Touring, Prodigy, Presara, AT-X, White Limited Edition)
• Toyota Aurion 04/2012–12/2017 GSV50R 3.5L 2GRFE 24V DOHC VVT (including Sportivo, Touring, Prodigy, Presara, AT-X)
• TRD Aurion 2006–2007 GSV40R 3.5L 2GRFE 24V DOHC VVT supercharged
• Toyota Camry Hybrid 2012–2017 AVV50R 2.5L 2ARFXE 16V DOHC VVT (including Altise, Atara, S, SL, H, HL)
• Lexus ES300h 2013–2018 AVV60R 2.5L 2ARFXE 16V DOHC VVT (including Luxury and Luxury Hybrid variants)
• Daihatsu Altis Hybrid 2012–2017 AVV50R 2.5L 2ARFXE 16V DOHC VVT

WHAT'S INCLUDED

• 1 x complete right-hand CV axle shaft assembly

FEATURES & CONSTRUCTION

• Manufactured to OEM specifications for fitment and performance
• Heat-treated chrome steel components for durability and long service life
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Molybdenum grease for smooth operation at varying angles, speeds and high RPM

SPECIFICATIONS

• Compressed length: 978mm
• Outer/wheel side spline count: 30T
• Inner/diff side spline count: 24T
• Inboard joint type: Tripod

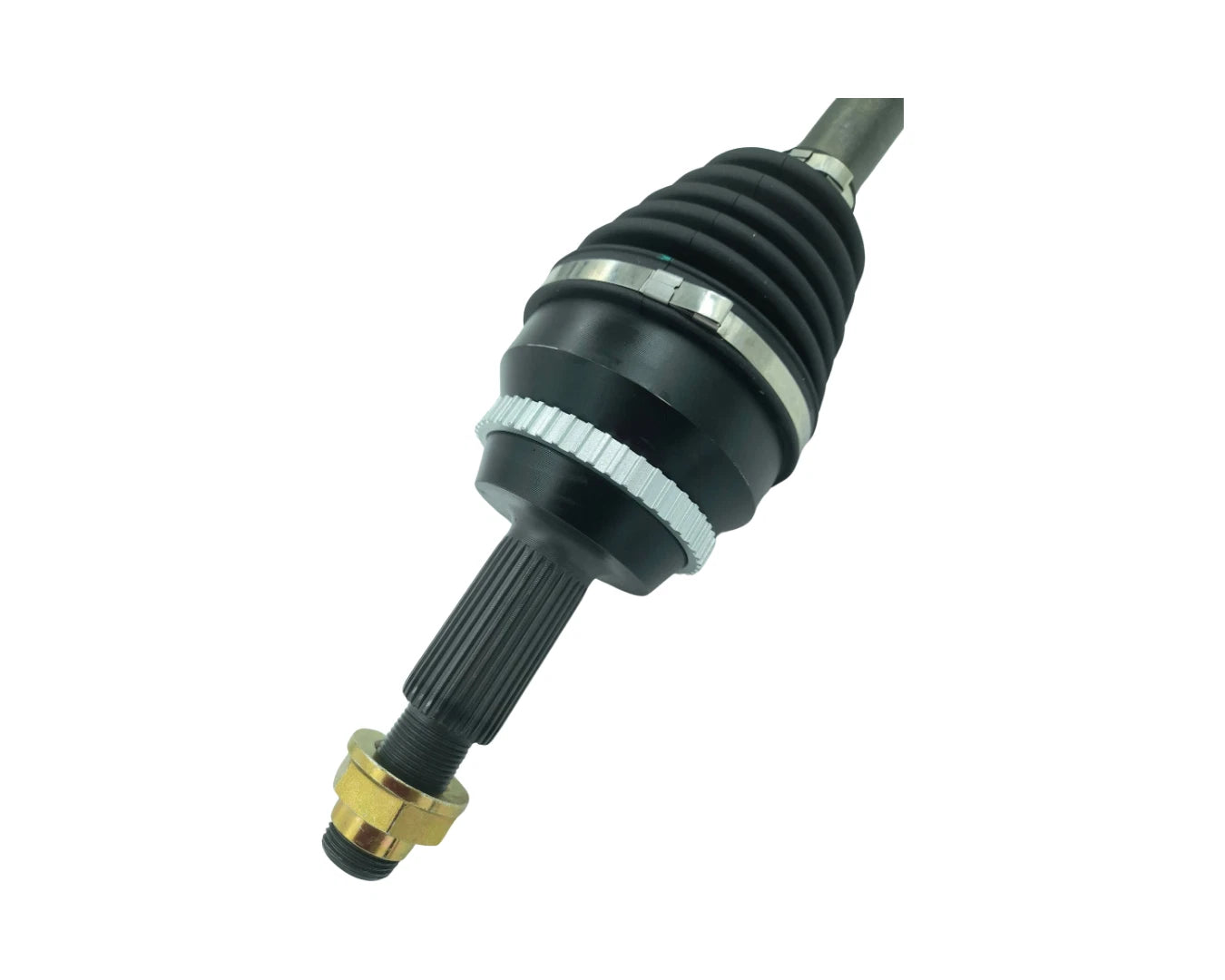

• Outboard joint type: Ball
• ABS ring teeth: 48

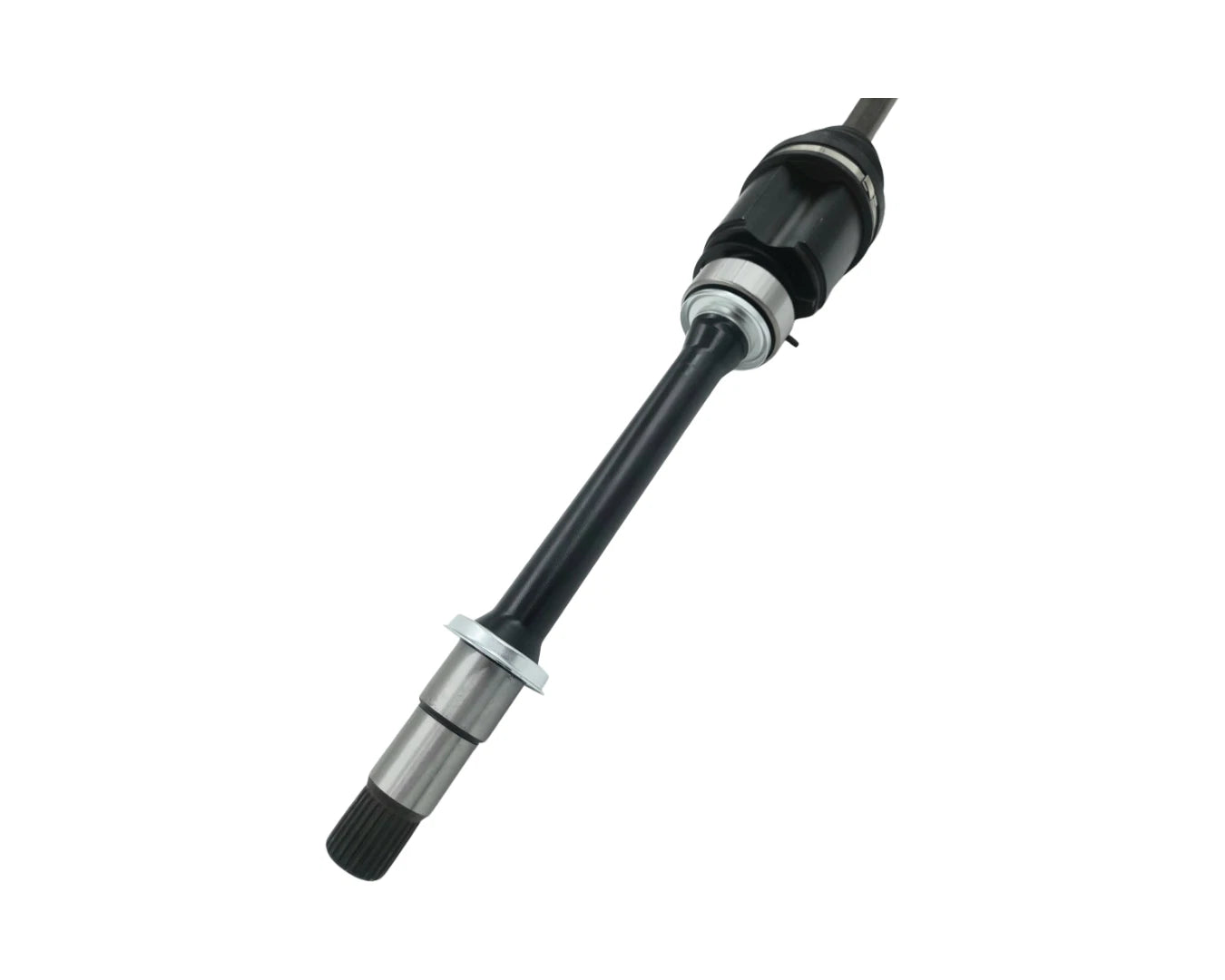

• Bearing outer diameter on extension shaft: 72mm
• Extension shaft bearing width: 23mm

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase
