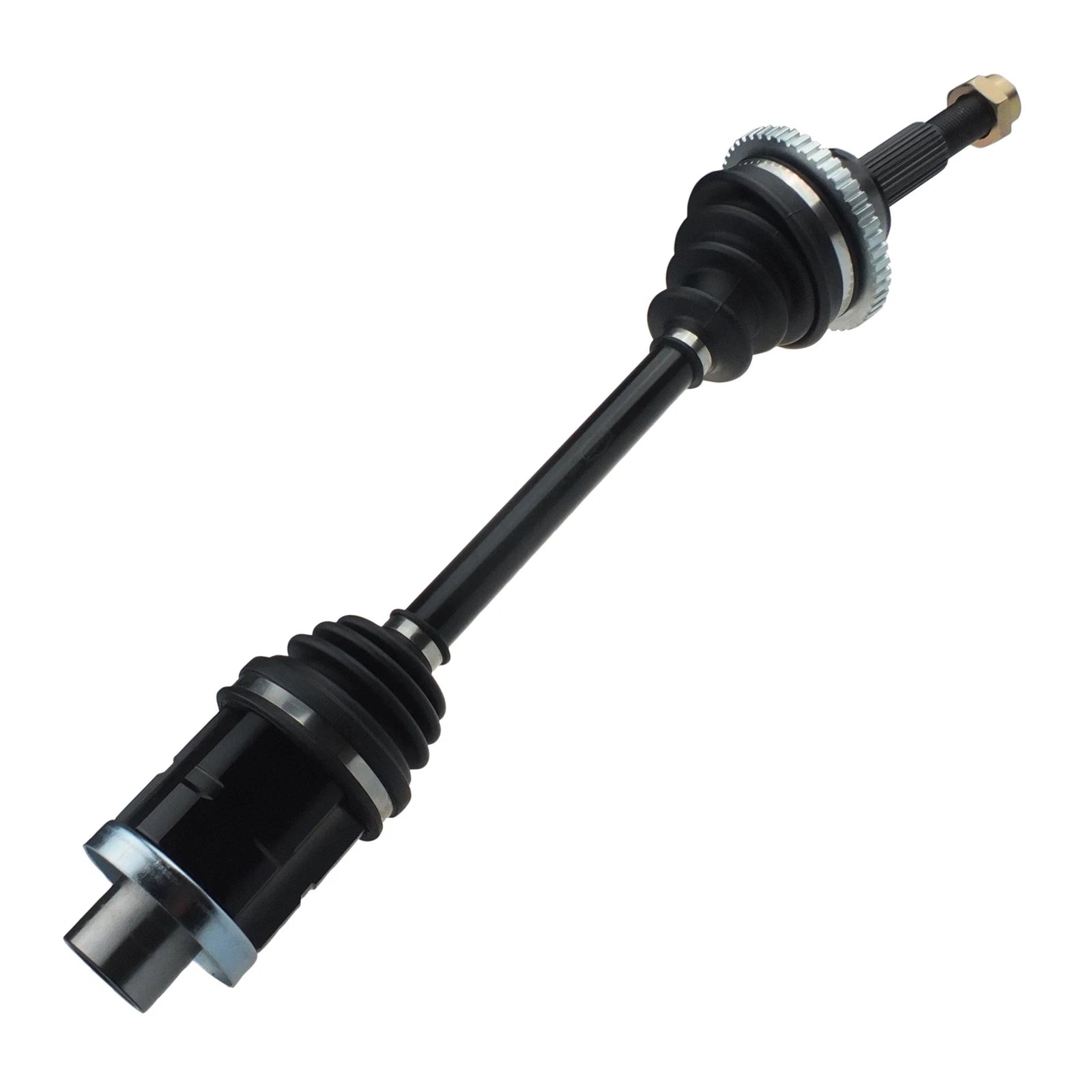

Right Front CV Axle Drive Shaft for Ford Territory AWD 2004–2016
A$186.19
PRODUCT OVERVIEW Right hand front CV axle drive shaft designed for Ford Territory AWD variants, built to OEM specifications for reliable driveline performance. FITMENT Territory TS, TX, Ghia SX (2004–2005)...
Guaranteed Fitment
Fast Shipping
Product Details
PRODUCT OVERVIEW
Right hand front CV axle drive shaft designed for Ford Territory AWD variants, built to OEM specifications for reliable driveline performance.
FITMENT
- Territory TS, TX, Ghia SX (2004–2005) 4.0L Barra AWD
- Territory SY (2005–2011) 4.0L Barra AWD
- Territory Turbo SY (2006–2011) 4.0L Barra 245T AWD
- Territory SZ (2011–2016) 2.7L 276DT Diesel AWD
Position: Front axle, right hand (passenger) side on AWD models.
WHAT YOU GET
- 1 x complete front right CV drive shaft assembly
FEATURES & BENEFITS
- Manufactured to OEM specifications for direct fit and correct operation
- Heat-treated chrome steel construction to maximise strength and service life
- High-quality neoprene dust boots with stainless steel clamps to resist contamination
- Filled with molybdenum (moly) grease for smooth operation at varying angles and speeds
- Supplied fully assembled and ready to install
SPECIFICATIONS
- Position: Front, right hand side
- Drivetrain: AWD
- Length (compressed): 620 mm
- Spline count (outer / wheel side): 28
- Spline count (inner / diff side): 28
WARRANTY
- CV driveshaft: 12 month / 20,000 km warranty
- CV boots: 3 month warranty from date of purchase
Warranty applies to the driveshaft only and excludes damage caused by improper installation, misuse, or accident.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Ford | Territory | 2019 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2016 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2015 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2014 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2013 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2012 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2011 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2011 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2011 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2010 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2010 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2009 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2009 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2008 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2008 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2007 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2007 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2006 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2006 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2005 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 182kW BARRA 182 | 3984cc 182kW (Petrol) |
PRODUCT OVERVIEW
Right hand front CV axle drive shaft designed for Ford Territory AWD variants, built to OEM specifications for reliable driveline performance.
FITMENT
- Territory TS, TX, Ghia SX (2004–2005) 4.0L Barra AWD
- Territory SY (2005–2011) 4.0L Barra AWD
- Territory Turbo SY (2006–2011) 4.0L Barra 245T AWD
- Territory SZ (2011–2016) 2.7L 276DT Diesel AWD
Position: Front axle, right hand (passenger) side on AWD models.
WHAT YOU GET
- 1 x complete front right CV drive shaft assembly
FEATURES & BENEFITS
- Manufactured to OEM specifications for direct fit and correct operation
- Heat-treated chrome steel construction to maximise strength and service life
- High-quality neoprene dust boots with stainless steel clamps to resist contamination
- Filled with molybdenum (moly) grease for smooth operation at varying angles and speeds
- Supplied fully assembled and ready to install
SPECIFICATIONS
- Position: Front, right hand side
- Drivetrain: AWD
- Length (compressed): 620 mm
- Spline count (outer / wheel side): 28
- Spline count (inner / diff side): 28
WARRANTY
- CV driveshaft: 12 month / 20,000 km warranty
- CV boots: 3 month warranty from date of purchase
Warranty applies to the driveshaft only and excludes damage caused by improper installation, misuse, or accident.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Ford | Territory | 2019 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2016 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2015 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2014 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2013 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2012 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2011 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2011 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2011 | SZ SUV 2.7 V6 TDCi 4x4 | AWD Diesel 2.7L 6cyl 140kW 276DT | 2720cc 140kW (Diesel) | |
| Ford | Territory | 2010 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2010 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2009 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2009 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2008 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2008 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2007 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2007 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2006 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 190kW BARRA 190 | 3984cc 190kW (Petrol) | |
| Ford | Territory | 2006 | SX,SY SUV 4.0 Turbo AWD | AWD Petrol 4.0L 6cyl 245kW BARRA 245T | 3984cc 245kW (Petrol) | |
| Ford | Territory | 2005 | SX,SY SUV 4.0 AWD | AWD Petrol 4.0L 6cyl 182kW BARRA 182 | 3984cc 182kW (Petrol) |
