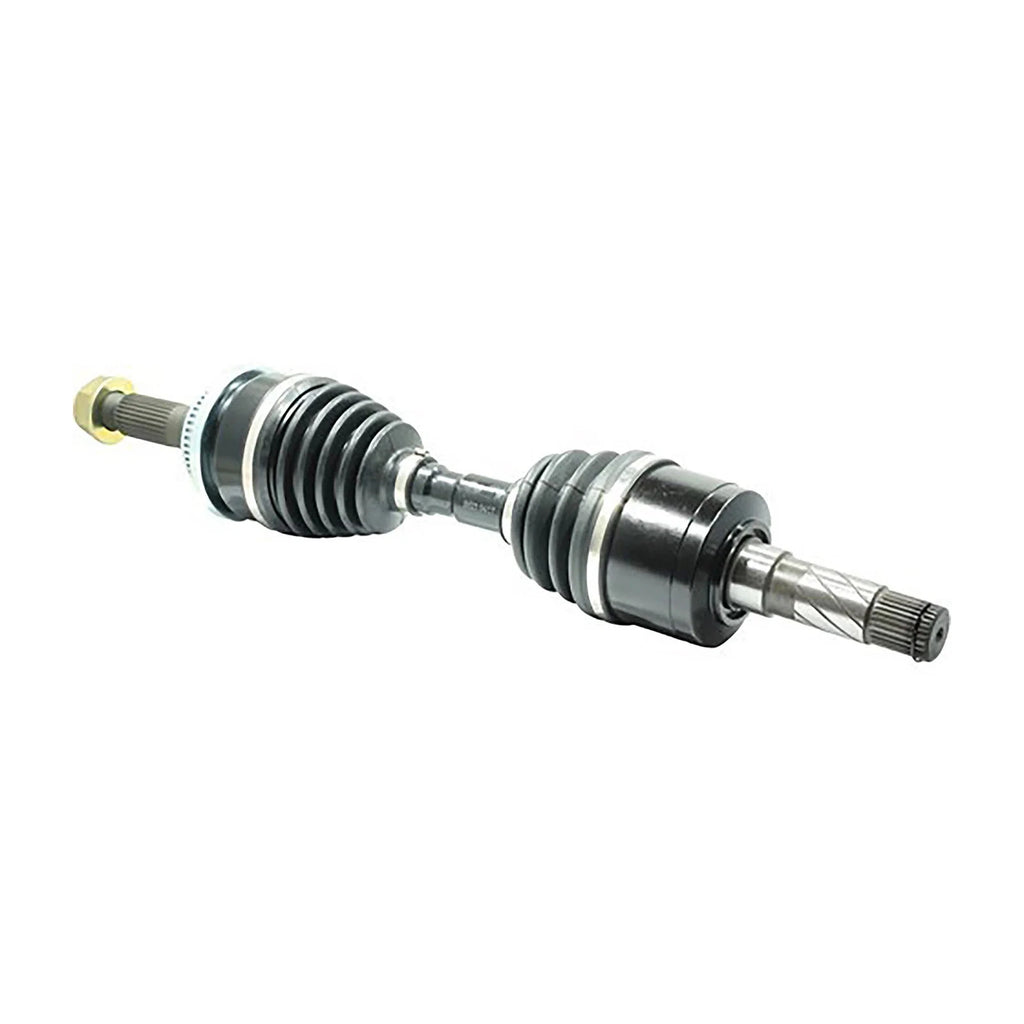

Right Front CV Drive Shaft for Ford Courier PG PH & Mazda Bravo 11/2002-2006
A$214.10
PRODUCT OVERVIEW Right-hand CV drive shaft engineered to meet OEM specifications for selected Ford Courier PG/PH and Mazda Bravo B2500/B4000 4WD models from 11/2002-2006 (models without free wheeling hubs). KEY...
Guaranteed Fitment
Fast Shipping
Product Details
PRODUCT OVERVIEW
Right-hand CV drive shaft engineered to meet OEM specifications for selected Ford Courier PG/PH and Mazda Bravo B2500/B4000 4WD models from 11/2002-2006 (models without free wheeling hubs).
KEY FEATURES
- Built to OEM standards using heat-treated chrome steel for maximum durability
- High-quality neoprene dust boots with stainless steel clamps to reduce contamination
- Molybdenum grease for smooth operation at varying angles, speeds and high RPM
- Supplied as a complete right-hand CV shaft assembly, ready to install
SPECIFICATIONS
- Position: Right hand (front)
- ABS ring: 44 tooth
- Spline (wheel end): 26 tooth
- Spline (diff side): 26 tooth
- Overall length: 600 - 625 mm
- CV seal size: 35 mm
VEHICLE COMPATIBILITY
- Ford Courier PG PH 4WD 2.5L Diesel (11/2002 - 2006)
- Ford Courier PG PH 4WD 4.0L Petrol (11/2002 - 2006)
- Mazda Bravo B2500 2.5L Diesel (11/2002 - 2006), models without free wheeling hubs
- Mazda Bravo B4000 4.0L Petrol (11/2002 - 2006), models without free wheeling hubs
Always confirm spline counts, ABS tooth count and dimensions against your original shaft before purchase.
WARRANTY
- CV driveshaft: 12 months / 20,000 km (whichever occurs first)
- CV boots: 3 months from date of purchase
Warranty applies to manufacturing defects only and is subject to correct installation and application.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Ford | Courier | 2006 | PH Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WL-T | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2006 | PH Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2006 | PH Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 82kW WLAT (12 V) | 2499cc 82kW (Diesel) | |
| Ford | Courier | 2006 | PH Ute 2.5 TD All-wheel Drive | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2006 | PH Ute 2.6 All-wheel Drive | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2006 | PH Ute 4.0 i 4x4 | AWD Petrol 4.0L 6cyl 154kW 1V | 4009cc 154kW (Petrol) | |
| Ford | Courier | 2005 | PH Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WL-T | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2005 | PH Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2005 | PH Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 82kW WLAT (12 V) | 2499cc 82kW (Diesel) | |
| Ford | Courier | 2005 | PH Ute 2.5 TD All-wheel Drive | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2005 | PH Ute 2.6 All-wheel Drive | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2005 | PH Ute 4.0 i 4x4 | AWD Petrol 4.0L 6cyl 154kW 1V | 4009cc 154kW (Petrol) | |
| Ford | Courier | 2004 | PG Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2004 | PG Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2004 | PG Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2004 | PG Ute 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2004 | PH Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WL-T | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2004 | PH Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2004 | PH Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 82kW WLAT (12 V) | 2499cc 82kW (Diesel) | |
| Ford | Courier | 2004 | PH Ute 2.5 TD All-wheel Drive | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) |
PRODUCT OVERVIEW
Right-hand CV drive shaft engineered to meet OEM specifications for selected Ford Courier PG/PH and Mazda Bravo B2500/B4000 4WD models from 11/2002-2006 (models without free wheeling hubs).
KEY FEATURES
- Built to OEM standards using heat-treated chrome steel for maximum durability
- High-quality neoprene dust boots with stainless steel clamps to reduce contamination
- Molybdenum grease for smooth operation at varying angles, speeds and high RPM
- Supplied as a complete right-hand CV shaft assembly, ready to install
SPECIFICATIONS
- Position: Right hand (front)
- ABS ring: 44 tooth
- Spline (wheel end): 26 tooth
- Spline (diff side): 26 tooth
- Overall length: 600 - 625 mm
- CV seal size: 35 mm
VEHICLE COMPATIBILITY
- Ford Courier PG PH 4WD 2.5L Diesel (11/2002 - 2006)
- Ford Courier PG PH 4WD 4.0L Petrol (11/2002 - 2006)
- Mazda Bravo B2500 2.5L Diesel (11/2002 - 2006), models without free wheeling hubs
- Mazda Bravo B4000 4.0L Petrol (11/2002 - 2006), models without free wheeling hubs
Always confirm spline counts, ABS tooth count and dimensions against your original shaft before purchase.
WARRANTY
- CV driveshaft: 12 months / 20,000 km (whichever occurs first)
- CV boots: 3 months from date of purchase
Warranty applies to manufacturing defects only and is subject to correct installation and application.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Ford | Courier | 2006 | PH Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WL-T | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2006 | PH Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2006 | PH Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 82kW WLAT (12 V) | 2499cc 82kW (Diesel) | |
| Ford | Courier | 2006 | PH Ute 2.5 TD All-wheel Drive | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2006 | PH Ute 2.6 All-wheel Drive | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2006 | PH Ute 4.0 i 4x4 | AWD Petrol 4.0L 6cyl 154kW 1V | 4009cc 154kW (Petrol) | |
| Ford | Courier | 2005 | PH Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WL-T | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2005 | PH Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2005 | PH Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 82kW WLAT (12 V) | 2499cc 82kW (Diesel) | |
| Ford | Courier | 2005 | PH Ute 2.5 TD All-wheel Drive | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2005 | PH Ute 2.6 All-wheel Drive | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2005 | PH Ute 4.0 i 4x4 | AWD Petrol 4.0L 6cyl 154kW 1V | 4009cc 154kW (Petrol) | |
| Ford | Courier | 2004 | PG Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2004 | PG Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2004 | PG Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2004 | PG Ute 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2004 | PH Platform/Chassis 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 86kW WL-T | 2500cc 86kW (Diesel) | |
| Ford | Courier | 2004 | PH Platform/Chassis 2.6 i 4x4 | AWD Petrol 2.6L 4cyl 92kW G6 | 2606cc 92kW (Petrol) | |
| Ford | Courier | 2004 | PH Ute 2.5 TD 4x4 | AWD Diesel 2.5L 4cyl 82kW WLAT (12 V) | 2499cc 82kW (Diesel) | |
| Ford | Courier | 2004 | PH Ute 2.5 TD All-wheel Drive | AWD Diesel 2.5L 4cyl 86kW WLAT (12 V) | 2500cc 86kW (Diesel) |
