Runva 4.5X 24V ATV Winch 4500lb with Synthetic Rope 45X24VD

PRODUCT OVERVIEW

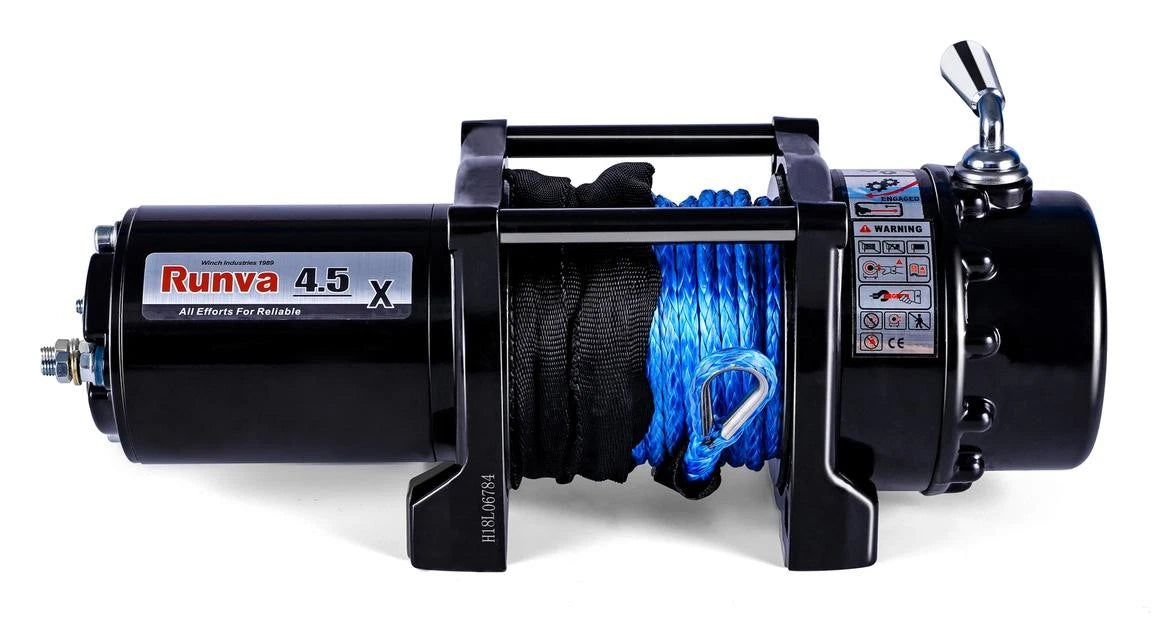

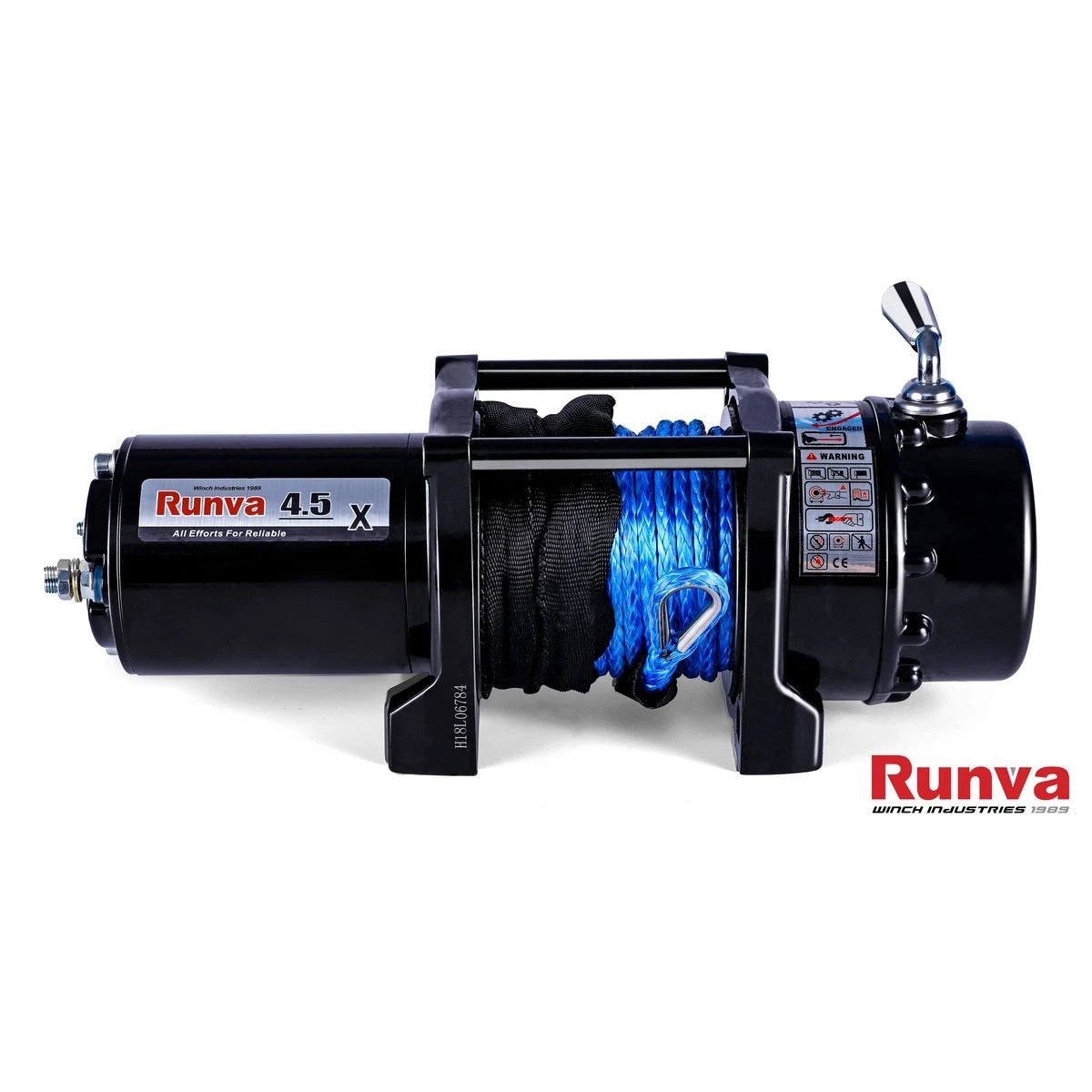

The Runva 4.5X ATV Winch 45X24VD is a compact, heavy-duty 24V winch designed for reliable vehicle recovery in demanding off-road conditions. A fully sealed construction protects internal components from dirt and moisture, while the high-strength synthetic rope delivers a rated line pull of 4,500lb (2,041kg).

KEY FEATURES

• Rated line pull of 4,500lb (2,041kg) for ATV and light utility recovery tasks
• 24V permanent magnet motor (2.9kW / 3.9HP) for strong, consistent performance
• Full steel planetary gear train with 172:1 ratio for smooth, controlled operation
• Automatic load-holding brake for secure load control on inclines
• Synthetic rope, 6mm x 14.5m, for reduced weight and safer handling
• Watertight, sealed construction to resist dust, mud and moisture
• Black powder coat finish for enhanced corrosion resistance

WHAT'S INCLUDED

• Runva 4.5X 4500lb 24V winch (black)
• Synthetic rope (6mm x 14.5m) pre-fitted to drum
• 250A solenoid
• 2.3m rocker switch ATV handle mounting kit
• 2.3m handheld remote control
• Y connector
• Aluminium hawse fairlead or stainless steel roller fairlead (as supplied)
• 1/4" hook and 2 ton 1/2" shackle
• Mounting plate
• 2 x 2.3m battery leads (200A)
• 2 ton snatch block
• 2 ton 1" x 2m tow strap
• Rope/protective sleeve

TECHNICAL SPECIFICATIONS

• Rated line pull: 4,500lb (2,041kg)
• Motor: permanent magnet, 24V, 2.9kW / 3.9HP
• Gear train: full steel planetary
• Gear ratio: 172:1
• Brake: automatic load holding
• Rope: synthetic, 6mm x 14.5m
• Drum size: 45mm x 93mm
• Mounting bolt pattern: 96mm x 129mm
• Overall dimensions: 378mm (L) x 126mm (W) x 165mm (H)
• Remote controls: 2.3m handheld remote and rocker switch
• Battery leads: 2 x 2.3m leads (200A)
• Finish: black powder coat
• Net weight: 11kg
• Gross weight (with packaging): 12kg
• Warranty: limited lifetime (manufacturer conditions apply)

FITMENT NOTICE

No specific vehicle compatibility data is provided for this winch. Confirm mounting space, bolt pattern and electrical requirements before installation on your ATV or application.
