Runva EWL9500 12V 9,500lb 4x4 Winch with Synthetic Rope EWL950012VD

PRODUCT OVERVIEW

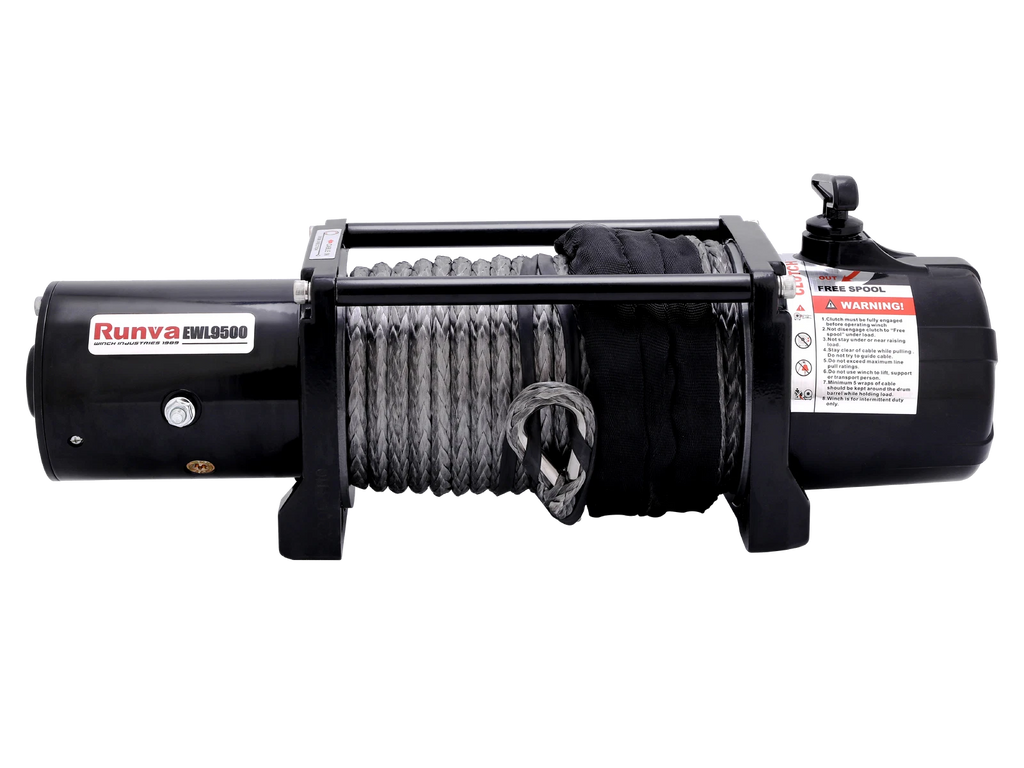

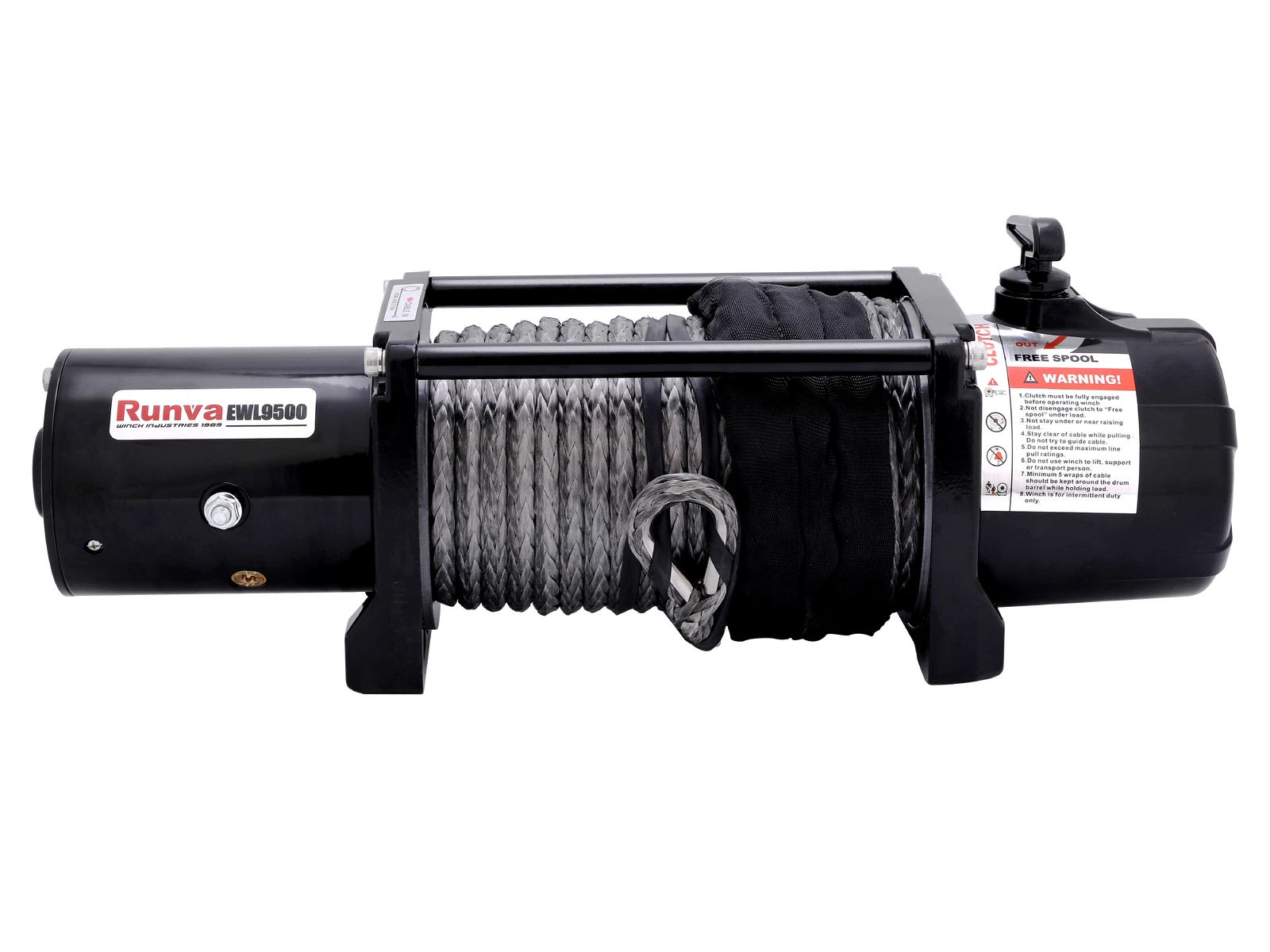

The Runva EWL9500 is a robust entry-level 4x4 recovery winch designed for reliable performance on a budget. Delivering a 9,500lb (4,309kg) rated line pull and powered by a 12V 4.6kW/6.1Hp motor, it provides strong pulling capability for off-road recovery and general utility use.

This model features a synthetic rope for reduced weight and safer handling compared to traditional steel cable. A screw cone automatic load-holding brake located in the drum helps maintain control under load, while the full steel three-stage planetary gearbox ensures smooth, efficient power transfer.

KEY FEATURES

• 9,500lb (4,309kg) rated line pull capacity
• 12V 4.6kW / 6.1Hp electric motor
• Full steel 3-stage planetary gear train
• 184:1 gear ratio for strong, controlled pulling
• Screw cone automatic load-holding brake in drum
• Synthetic rope for lighter weight and easier handling
• Sliding ring gear clutch with rotatable gearbox for flexible mounting
• Heavy-duty handheld and wireless remote controls included
• Black powder coat finish for corrosion resistance

TECHNICAL SPECIFICATIONS

• Rated Line Pull: 9,500lb (4,309kg)
• Motor: 12V, 4.6kW / 6.1Hp
• Gear Train: Full steel 3-stage planetary
• Gear Ratio: 184:1
• Clutch Type: Sliding ring gear
• Clutch Handle Position: Gearbox can be rotated
• Brake: Automatic load-holding in drum
• Cable Type: Synthetic rope
• Cable Size: 10mm x 25m
• Drum Size: 63mm x 226mm
• Mounting Bolt Pattern: 254mm x 114.3mm
• Overall Dimensions (L x W x H): 542mm x 160mm x 199mm
• Remote Control: Heavy-duty handheld + wireless
• Battery Leads: 2 x 1.8m heavy-duty leads
• Finish: Black powder coat
• Warranty: Limited 5-year electrical and lifetime mechanical warranty
• Model: EWL950012VD

APPLICATION & FITMENT

This is a universal 12V electric winch commonly used on 4x4 vehicles, off-road trucks, and utility rigs. No specific vehicle compatibility is supplied; ensure adequate mounting space and confirm suitability with your bull bar or winch mount before purchase.

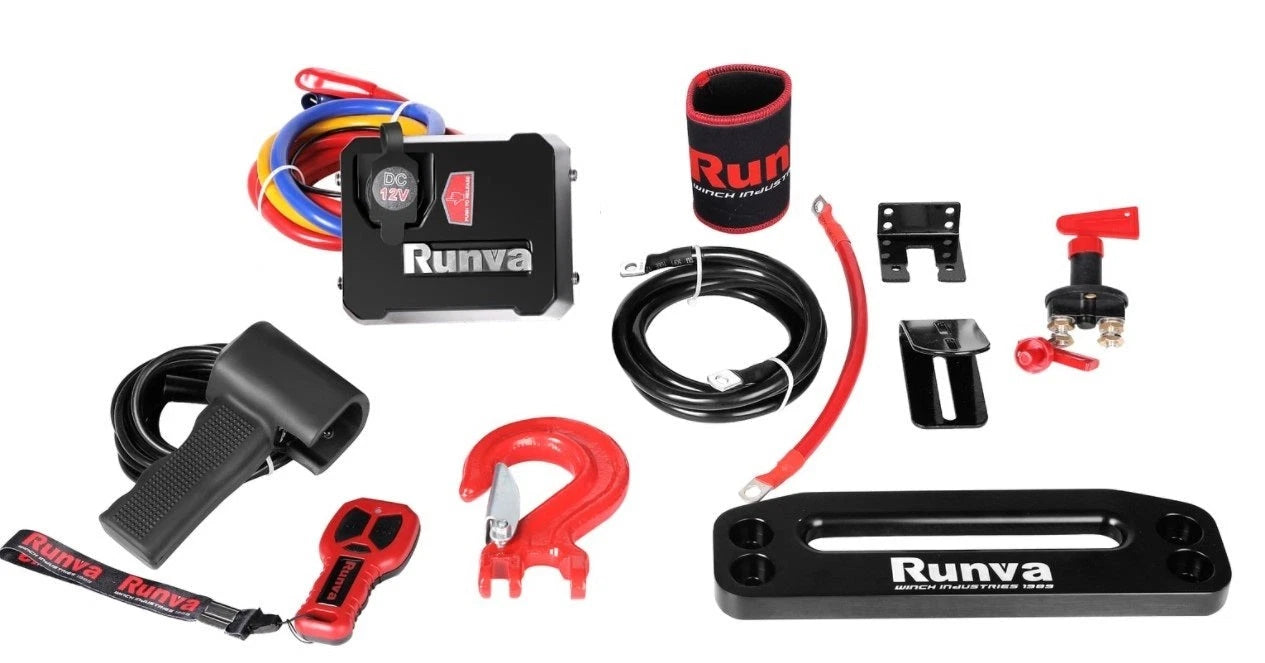

INCLUDED COMPONENTS

• Runva EWL9500 12V winch assembly
• Synthetic rope (10mm x 25m) pre-fitted or supplied
• Heavy-duty handheld remote control
• Wireless remote control
• Battery leads – 2 x 1.8m heavy-duty cables
• Mounting hardware (as supplied by manufacturer)

NOTES

• Professional installation is recommended for correct mounting and wiring.
• Always use appropriate rated recovery equipment and follow safe winching practices.
