Single Power Window Switch 7 Pin for Hyundai ix35 LM 2009-2015

PRODUCT OVERVIEW

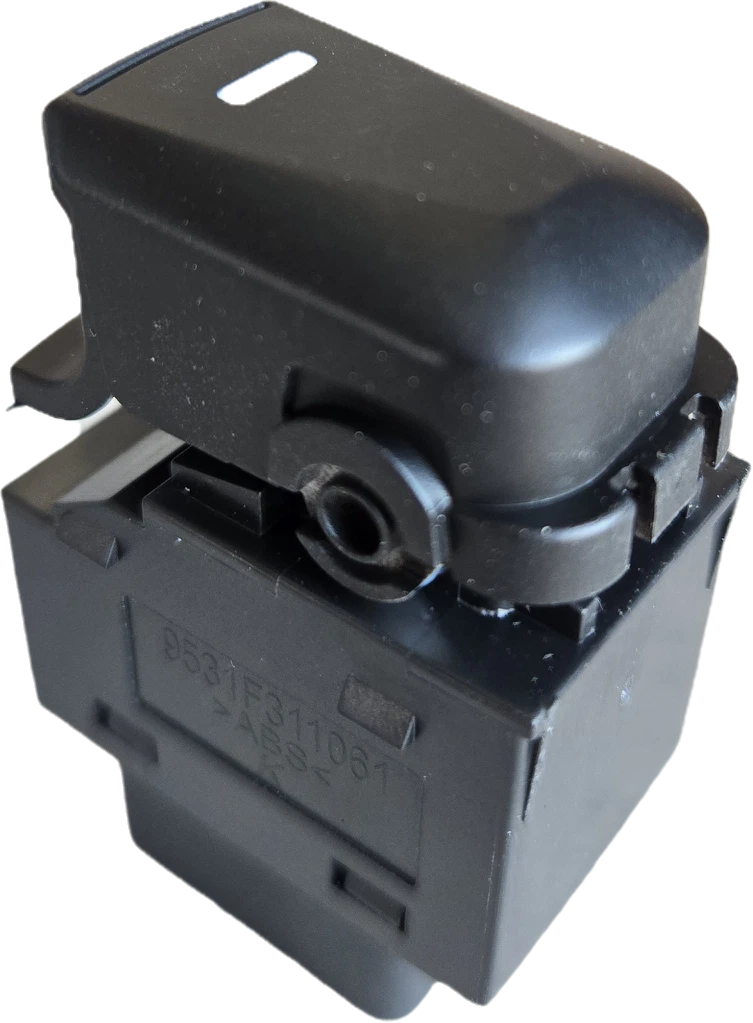

This single electric power window switch is a high-quality aftermarket replacement designed for Hyundai ix35 LM models. It is suitable for multiple door positions and features a 7-pin connector for reliable operation.

KEY FEATURES

• Electric power window switch
• 7-pin connector
• Brand new, high-quality aftermarket unit
• Suitable for multiple door positions (front left, rear left, rear right)
• Direct replacement for specified OEM part numbers

SPECIFICATIONS

• Product: Window switch
• Operating mode: Electric
• Placement on vehicle: Front left / rear left / rear right

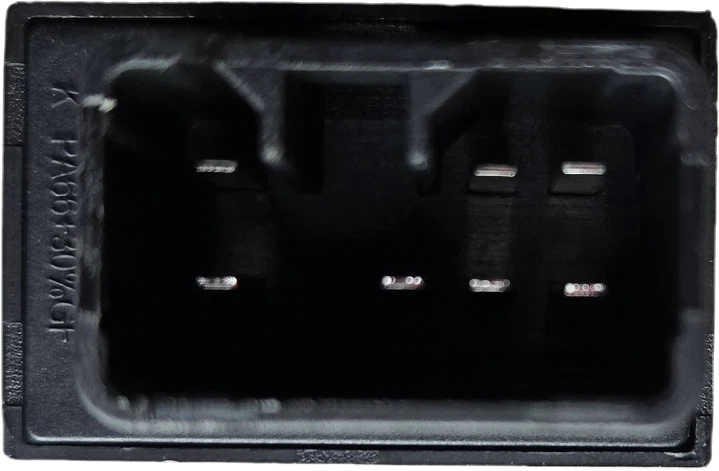

• Number of pins: 7 pins
• Condition: Brand new
• Part specs: High-quality aftermarket
• MPN / Item No.: 101682H
• Ref. OEM numbers: 93580-2S000, 935802S000
• Warranty: 3 months (part only)
• Quantity supplied: 1 piece

FITMENT

• Hyundai ix35 LM (11/2009 - 05/2015)

Before purchasing, visually match this switch and connector with the original part in your vehicle and confirm the OEM reference numbers.

ANTI-PINCH FUNCTION RESET (WHERE APPLICABLE)

If used with a window regulator motor that has an anti-pinch function, the motor may require resetting after installation. Do not operate or test the motor before it is installed in the door.

• Install the motor and connect it with the one-touch window switch.
• Pull the switch up; the window should travel fully to the top.
• If the window drops after reaching the top, carry out the reset procedure below.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it still drops, repeat the steps until successful.

IMPORTANT NOTES

• Images are for reference; colour or finish may vary slightly due to lighting and screen settings.
• This part is intended as a replacement component and is not manufactured by the vehicle maker.
• Professional installation by a qualified automotive technician is recommended.
