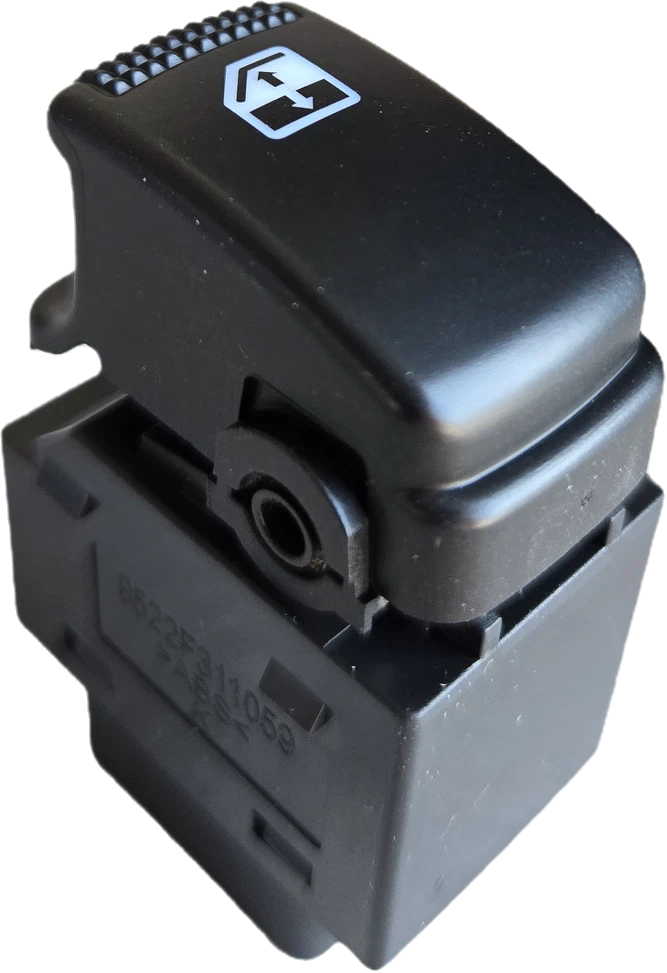

7-Pin Electric Window Switch Front/Rear for Hyundai & Kia 2002-2011

PRODUCT OVERVIEW

This high quality aftermarket 7-pin electric window switch is designed for selected Hyundai and Kia models. It suits multiple door positions and provides reliable operation for power window control.

KEY FEATURES

• Electric power window switch
• Suits front left, rear left and rear right doors (where applicable)
• 7-pin connector configuration
• High quality aftermarket construction
• Brand new replacement part
• Supplied as 1 piece

SPECIFICATIONS

• Product: Window switch
• Operating mode: Electric
• Placement on vehicle: Front left / rear left / rear right

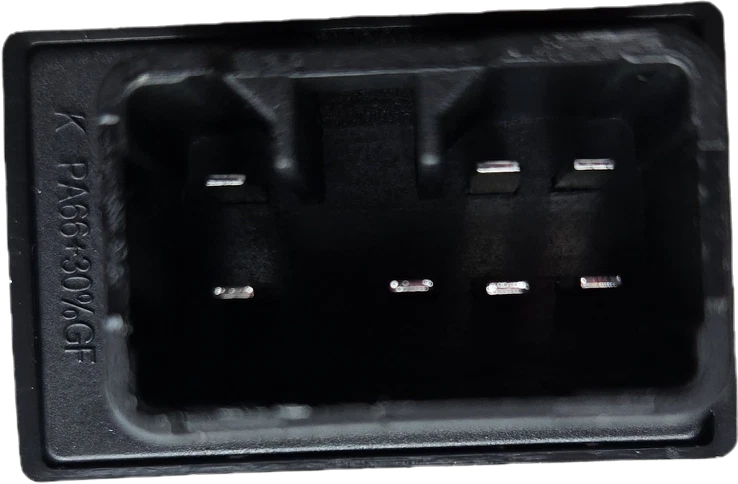

• Number of pins: 7
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 102471H
• Ref. OEM numbers: 93580-2E000, 935802E00
• Manufacturer warranty: 3 months (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

Use the information below as a guide only. Always match the part number and plug/pin configuration with your original switch before purchase.

• Hyundai Getz TB: 05/2002 - 01/2011
• Hyundai Elantra HD: 10/2006 - 05/2011
• Hyundai Tucson JM: 01/2004 - 12/2010
• Kia Sorento BL: 02/2003 - 09/2009
• Kia Sportage KM: 04/2005 - 05/2010

INSTALLATION & ANTI-PINCH RESET

Some vehicles use window regulators with an anti-pinch function. Incorrect handling can cause the window to drop after reaching the top position.

• Do not test the motor before it is fully installed in the door.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up to confirm the window travels fully to the top.
• If the window drops after reaching the top, perform the reset procedure.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is set correctly.

IMPORTANT NOTES

• This part is intended as a replacement component for repair purposes only.
• Images are for reference; actual product colour may vary due to screen and lighting.
• Always compare the connector, pin count and overall design with your original switch before ordering.
• For best results and to protect warranty, installation by a qualified automotive technician is recommended.
