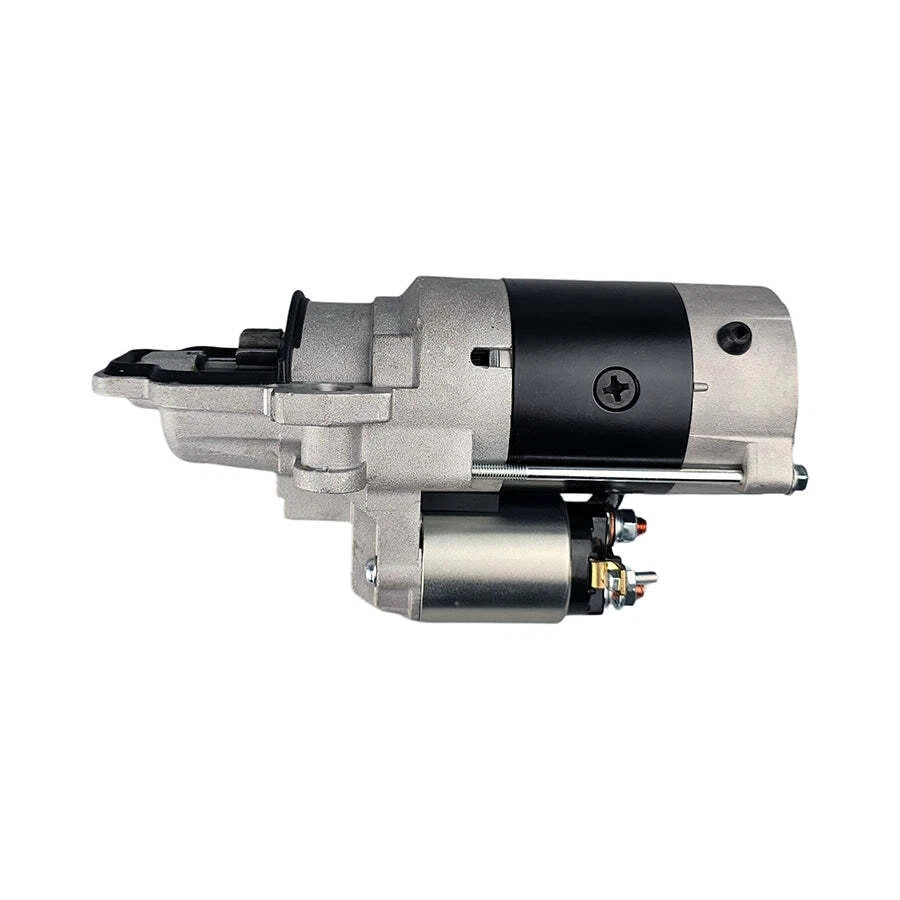

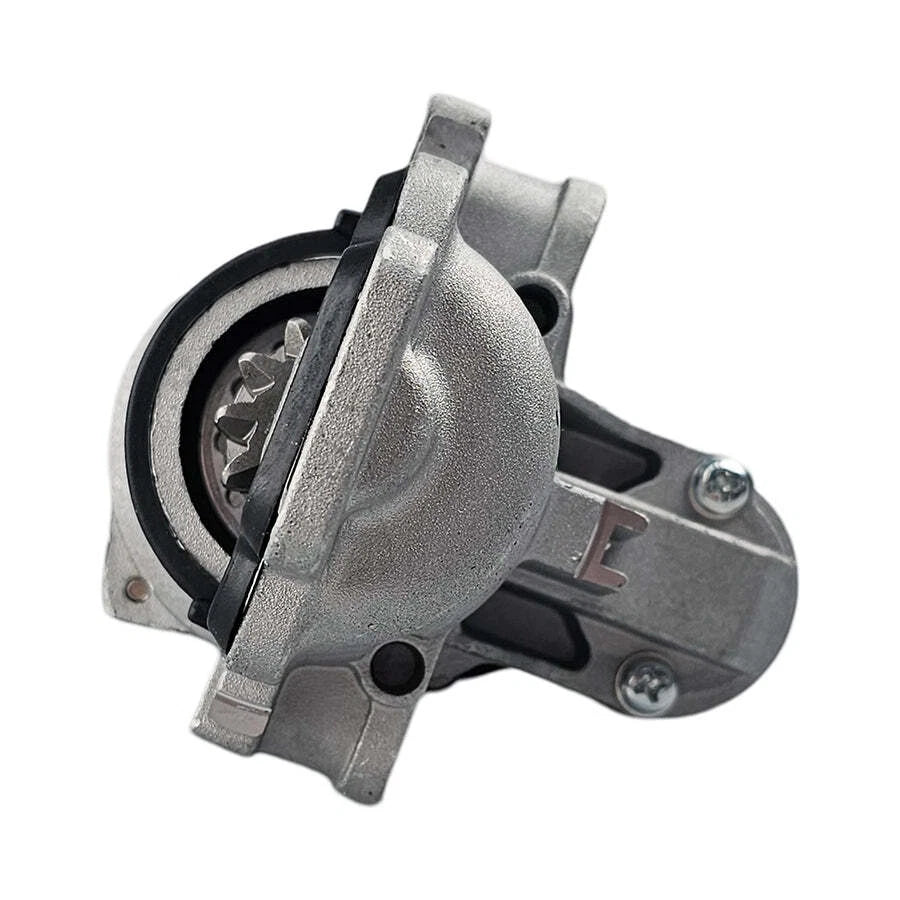

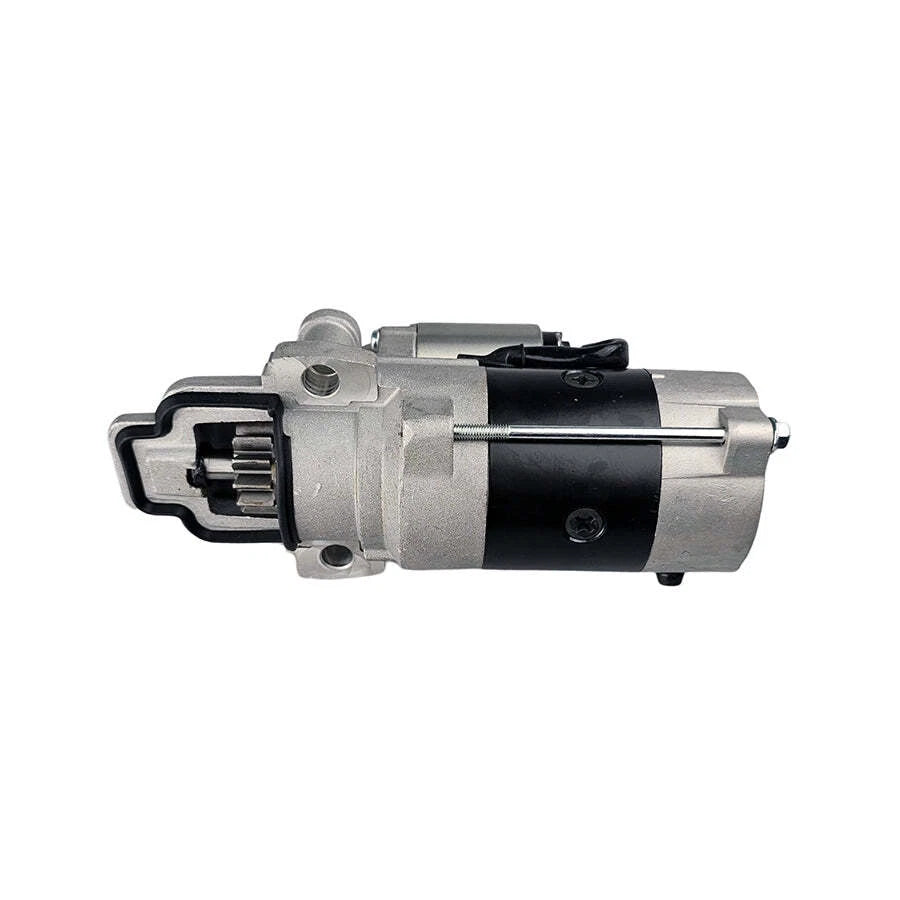

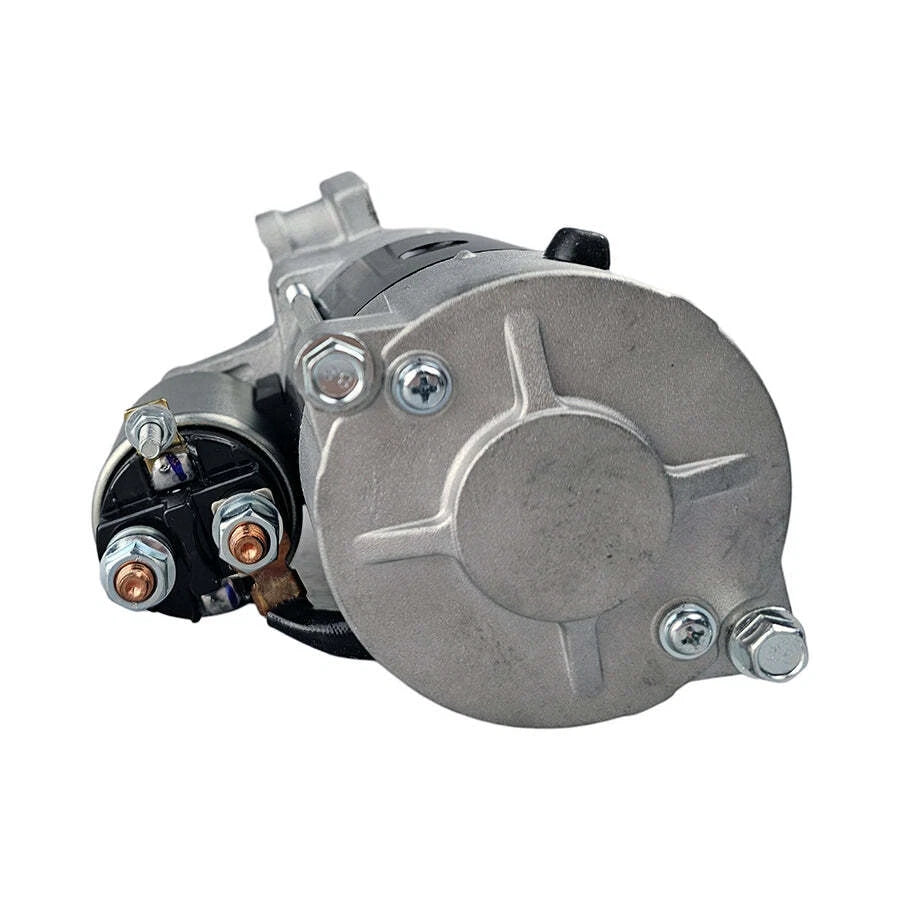

Starter Motor 12V 2.2kW for Ford Ranger PX & Everest UA 3.2L P5AT

PRODUCT OVERVIEW

Brand new 12V 2.2kW starter motor designed for selected Ford Ranger PX, Ford Everest UA and Mazda BT-50 3.2L P5AT diesel applications. Built to stringent international quality standards for reliable cold starts and long service life.

KEY FEATURES

• 12V, 2.2kW high-torque starter motor
• Engineered for 3.2L P5AT 20V DOHC Turbo I/C diesel engines
• Manufactured to ISO/TS16949 quality standards
• Direct replacement unit for compatible applications
• Suitable for a wide range of model variants and trim levels

VEHICLE APPLICATIONS

• Ford Ranger PX1, PX2, PX3 3.2L P5AT 20V DOHC Turbo I/C (07/2011 - 03/2022)
• Ford Everest UA 3.2L P5AT 20V DOHC Turbo I/C (07/2015 - 08/2018)
• Mazda BT-50 UP 3.2L P5AT 20V DOHC Turbo I/C (11/2011 - 07/2020)

Includes a wide range of sub-models and trim levels within the above date ranges. Always confirm specifications and mounting dimensions against your original starter before purchase.

TECHNICAL SPECIFICATIONS

• Voltage: 12V
• Power: 2.2kW
• Pinion teeth: 12
• Pinion at rest: 38mm
• Pinion diameter: 39mm
• Overall length: 205mm
• Mounting bolt holes centre-to-centre: 89mm
• Mounting bolt hole diameter: 11mm
• Flange diameter: 89mm

WHAT'S INCLUDED

• 1 x starter motor (complete unit, ready to install)

WARRANTY & SUPPORT

• 12 month / 20,000 km warranty (whichever occurs first)
• Technical support available for pre-purchase and after-sales queries

Professional installation is recommended. Verify compatibility using your vehicle details and existing starter specifications before ordering.
