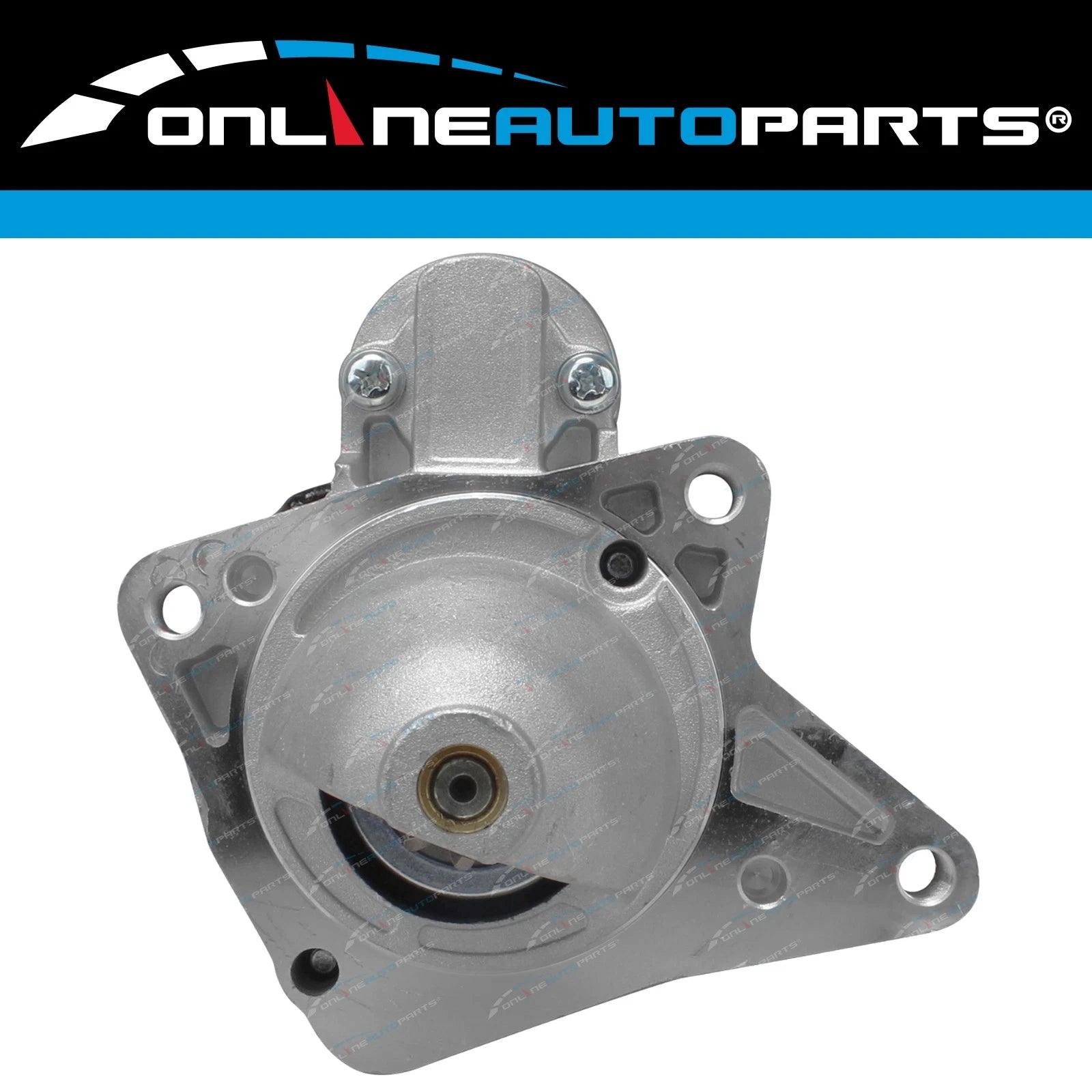

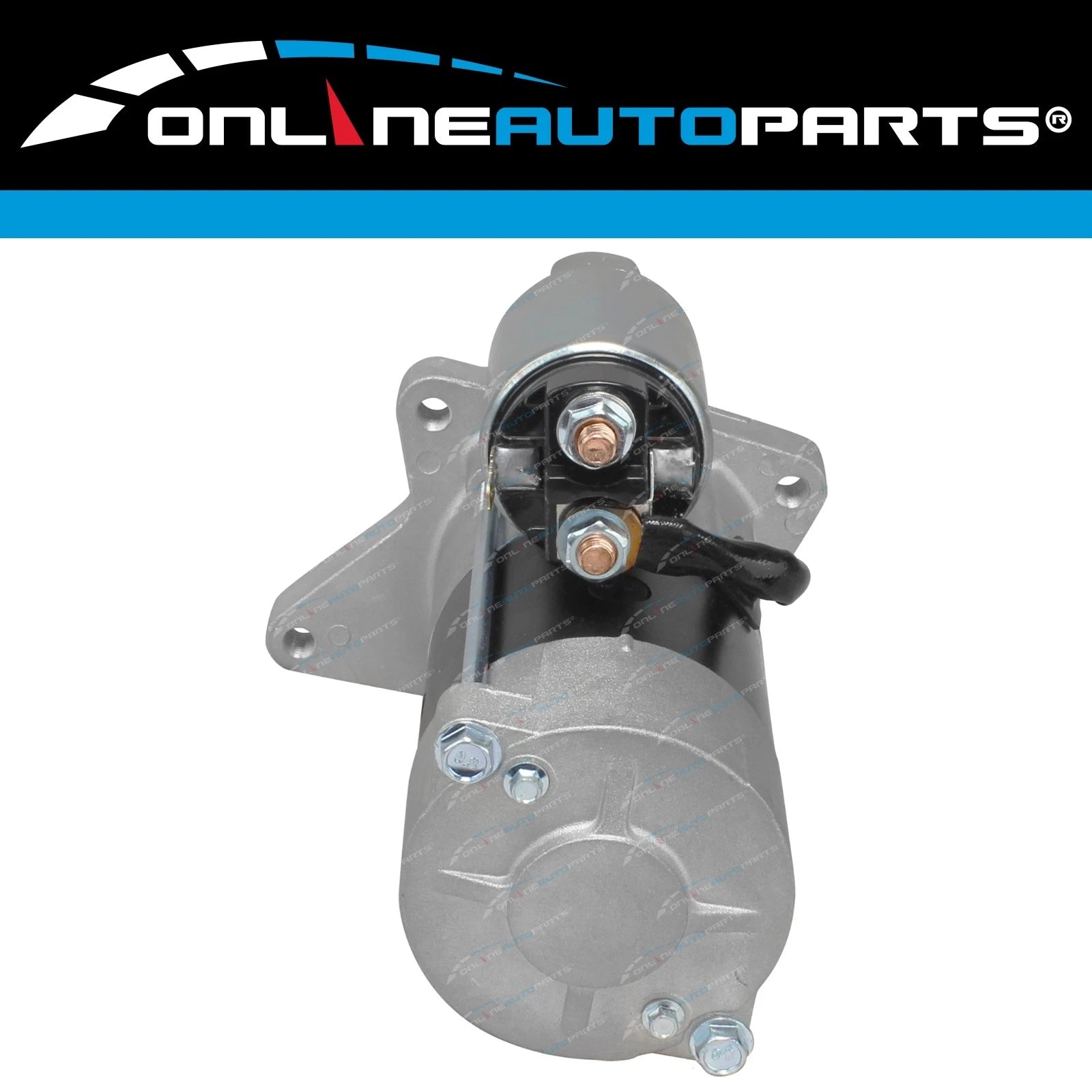

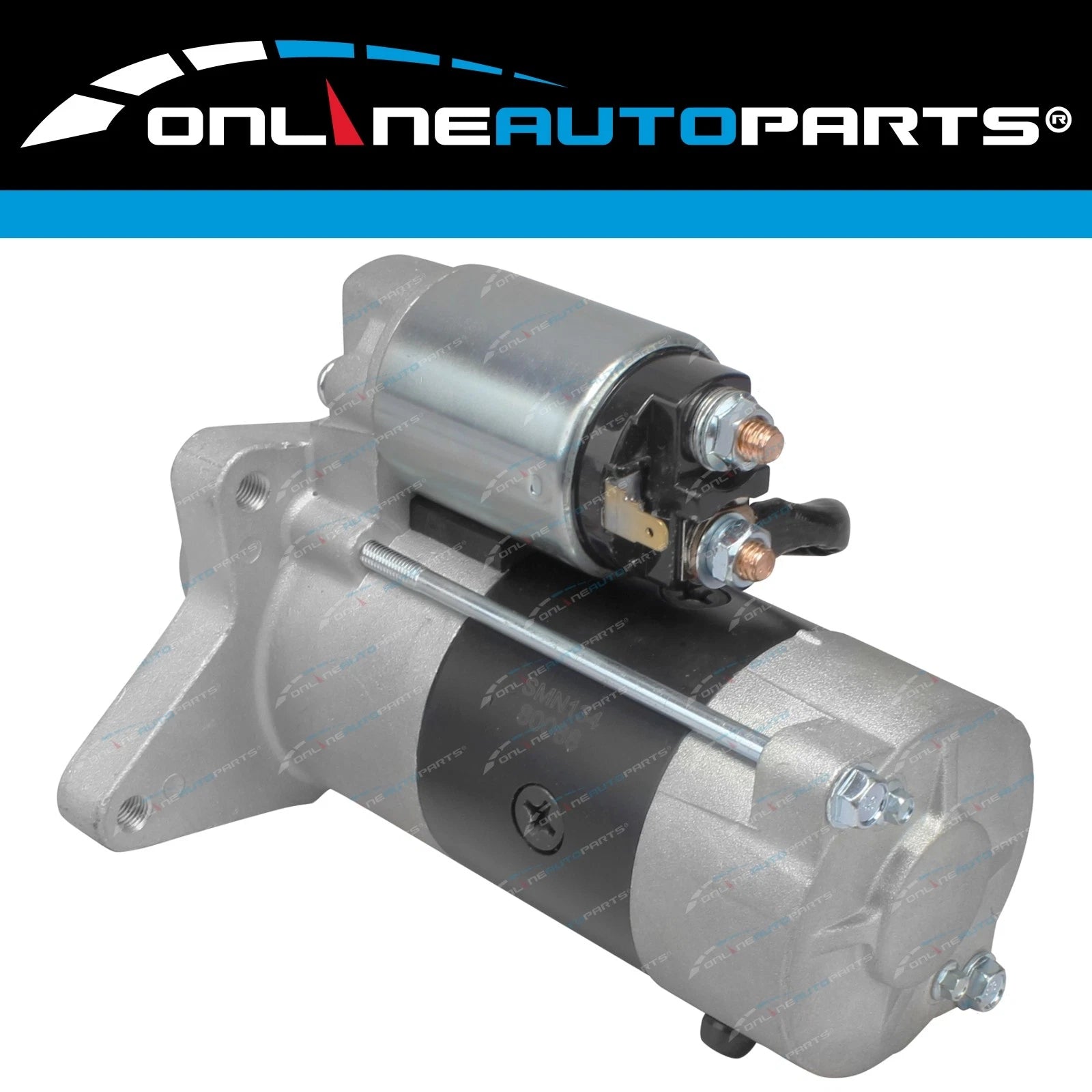

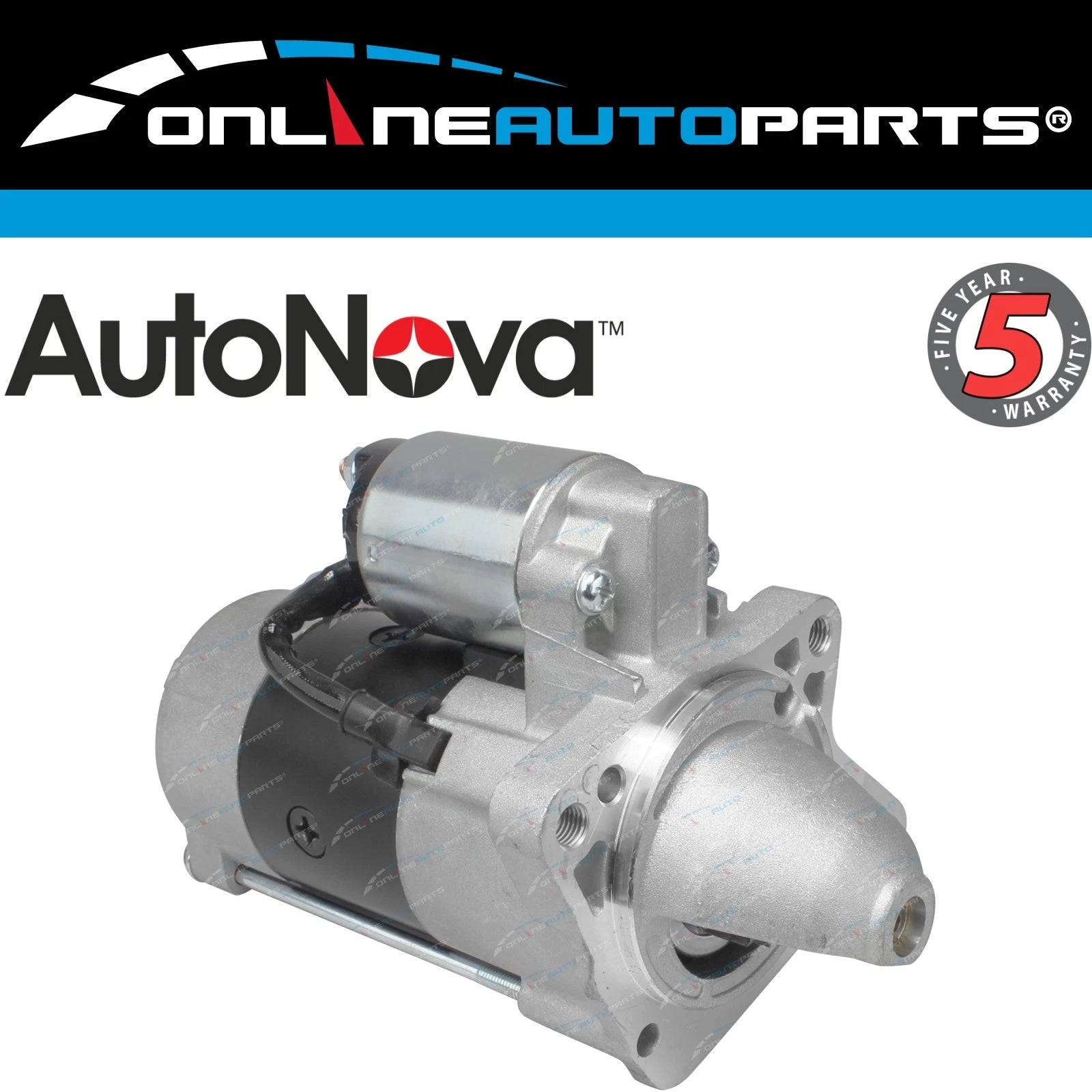

Starter Motor for Ford Ranger PJ PK WLAT 2.5L WEAT 3.0L 2006–2011

PRODUCT OVERVIEW

This 12V starter motor is designed for Ford Ranger PJ/PK models with WLAT 2.5L and WEAT 3.0L diesel engines from 2006 to 2011. It provides reliable engine cranking performance and is built to meet OEM-equivalent specifications.

Reference part numbers: SMN134, ZPN-18390

Important: Please confirm whether your existing starter has 9 or 10 pinion teeth before ordering. This unit is specified as a 10-tooth starter.

KEY FEATURES

• Direct-fit starter motor for Ford Ranger PJ/PK WLAT 2.5L & WEAT 3.0L (2006–2011)
• 12V, 2kW output for strong and consistent starting performance

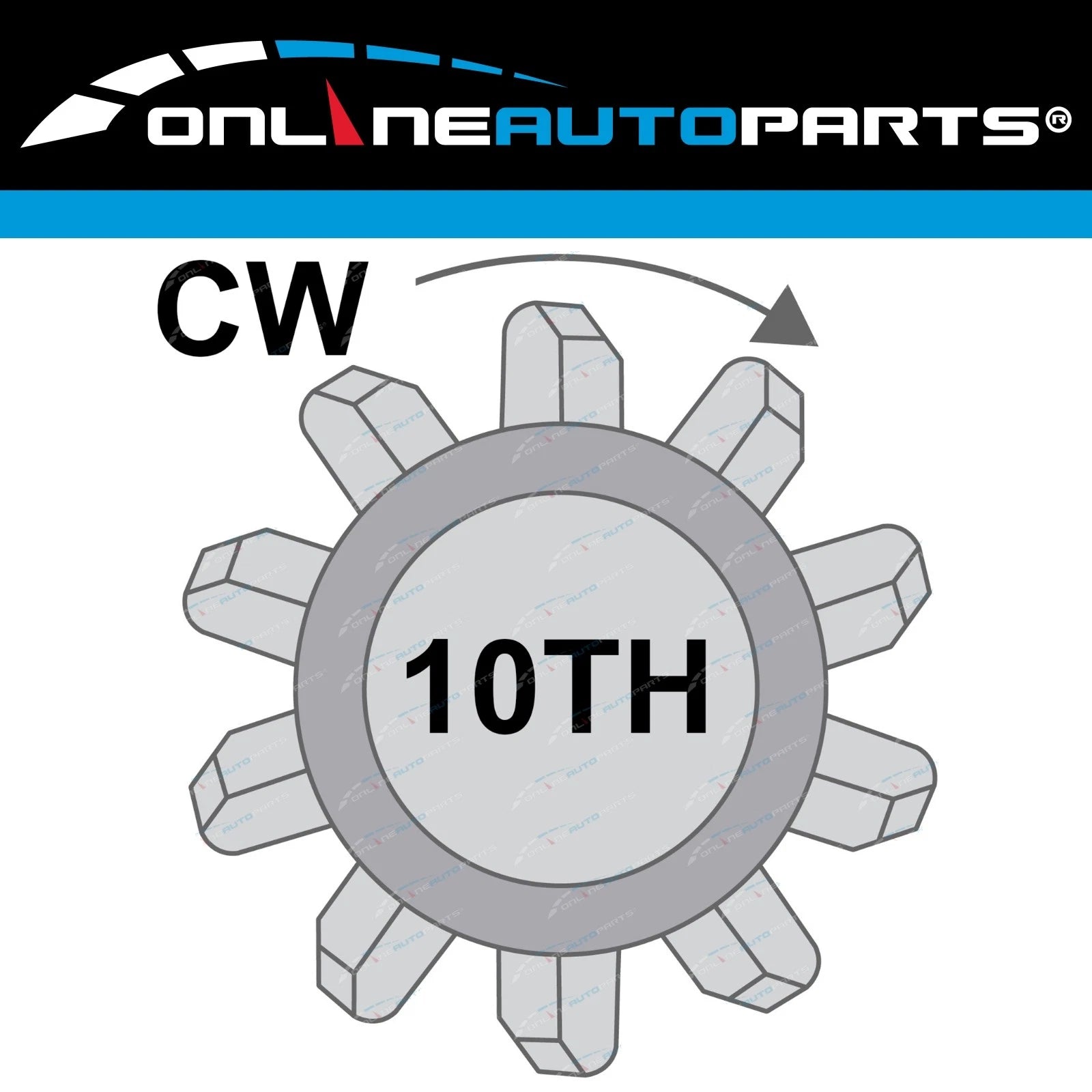

• Clockwise rotation with 10-tooth pinion gear
• Engineered to meet or exceed OEM performance standards
• Suitable replacement when experiencing slow crank or no-start conditions

SPECIFICATIONS

• Voltage: 12V
• Power rating: 2kW
• Rotation: Clockwise
• Pinion teeth: 10
• Pinion diameter: 32mm
• Pinion at rest: 16mm
• Flange diameter: 82mm
• Mounting centre-to-centre: 136 x 94 x 75mm

FITMENT NOTES

This is a vehicle-specific starter motor. Always verify:

• Engine code (WLAT 2.5L or WEAT 3.0L)
• Model series (PJ or PK)
• Build year (2006–2011)
• Pinion tooth count (9 vs 10 teeth on your original unit)

If unsure, compare the specifications and mounting dimensions with your existing starter before purchase.
