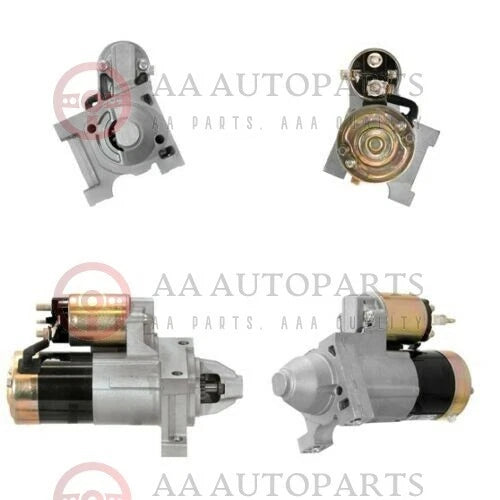

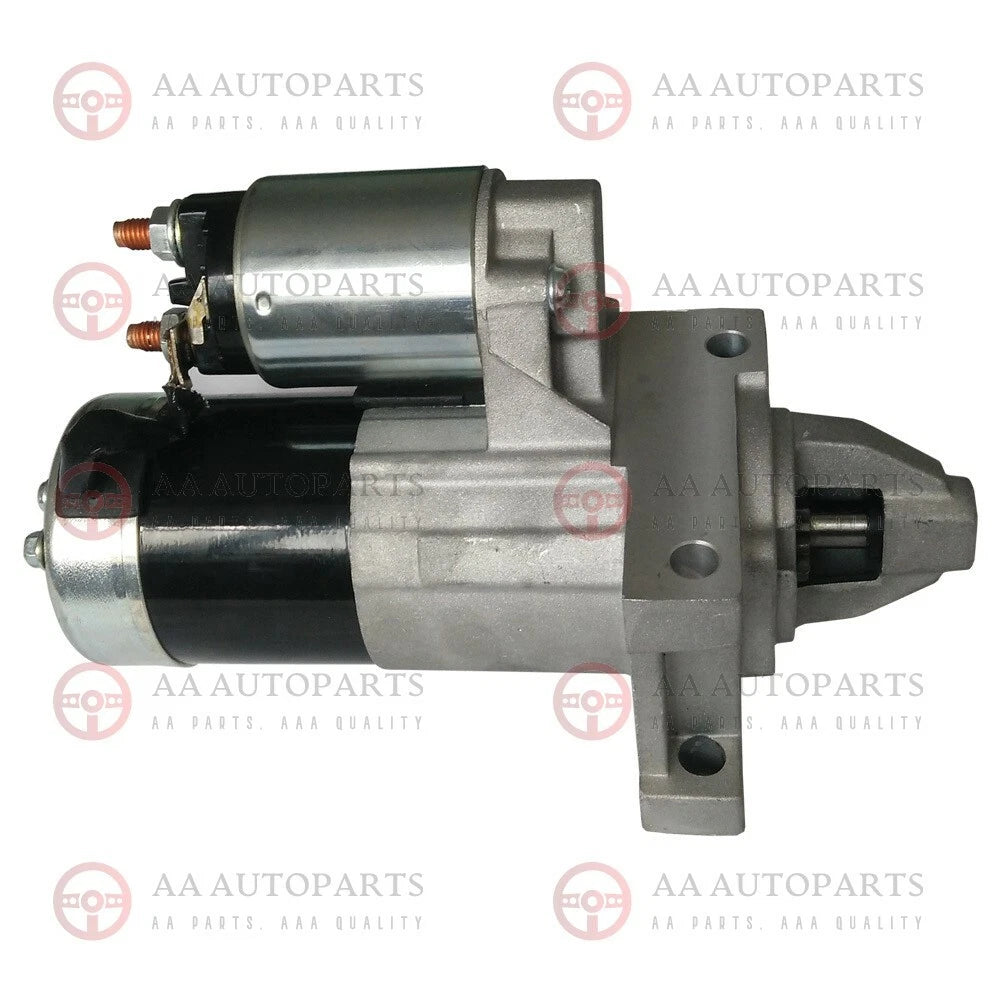

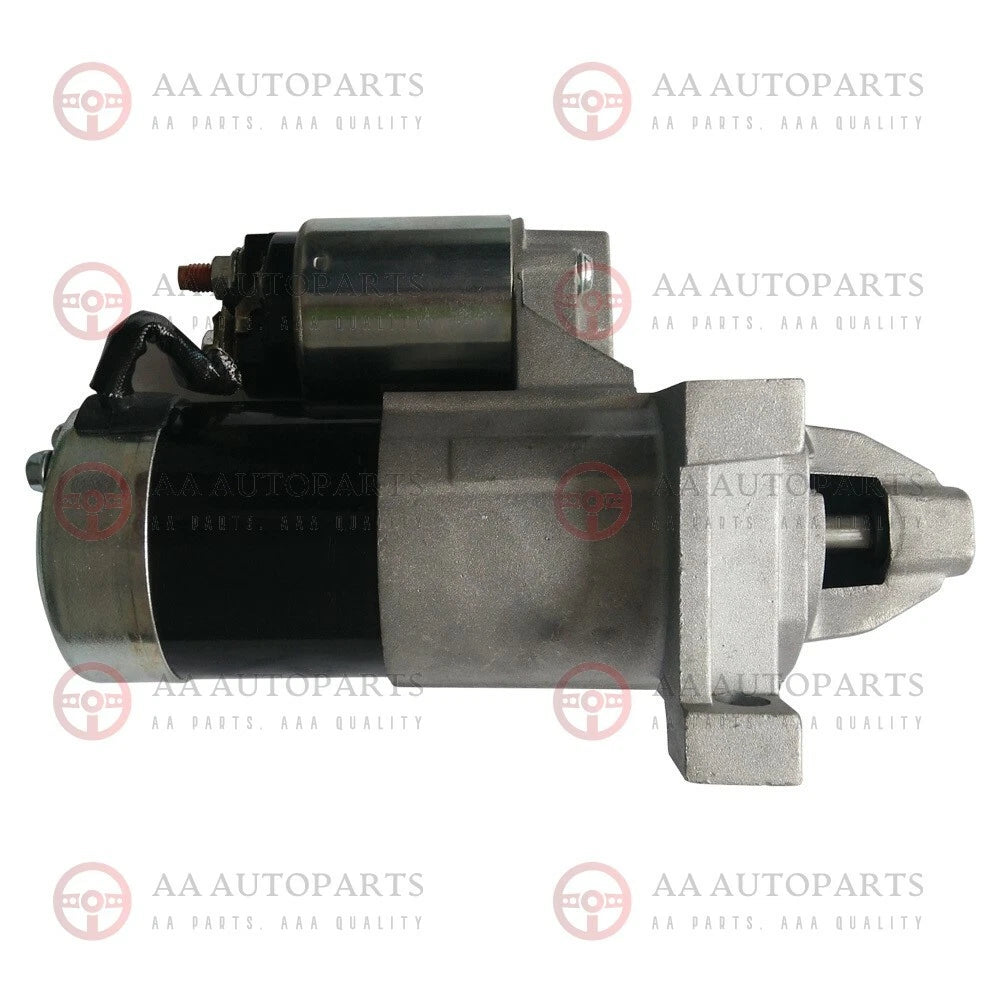

Starter Motor for Holden V8 Gen3 LS1 5.7L VT VX VY VZ VE WH WK WL

PRODUCT OVERVIEW

This aftermarket starter motor is designed for Holden vehicles equipped with the V8 Gen3 LS1 5.7L petrol engine. It provides reliable engine cranking performance as a direct replacement for the original unit.

COMPATIBLE MODELS

Suitable for selected Holden models fitted with a Gen3 V8 LS1 5.7L petrol engine, including (but not limited to):

• Holden Adventra Gen3 V8 5.7L Petrol 2003–2006
• Holden Berlina VZ VE V8 Gen3 5.7L Petrol 2004–2006
• Holden Calais VZ VE V8 Gen3 5.7L Petrol 2004–2006
• Holden Caprice WH WL Gen3 5.7L Petrol 1999–2006
• Holden Commodore VT VX VY VZ VE V8 Gen3 LS1 5.7L Petrol 1999–2006
• Holden Crewman VY Gen3 V8 LS1 5.7L Petrol 2003–2005
• Holden Grange WH WK WL WM LS1 V8 5.7L Petrol 2000–2006
• Holden Maloo VU VY Gen3 V8 5.7L Petrol 2001–2006
• Holden Monaro VZ V8 Gen3 5.7L Petrol 2001–2003
• Holden Statesman WH WK WL V8 LS1 5.7L Petrol 1999–2006

Important: Always verify part number, mounting dimensions and engine details before purchase to confirm compatibility with your vehicle.

TECHNICAL SPECIFICATIONS

• Type: Starter motor
• Voltage: 12 V
• Power rating: 1.4 kW
• Manufacturer Part Number: SMOTOR-HLN001M
• Overall length: 226 mm
• Mounting hole diameter: 8 mm
• Mounting hole-to-hole distance: 64 mm
• Flange diameter: 58 mm
• Nose cone length: 42 mm
• Pinion at rest: 9 mm
• Motor housing diameter: 70 mm
• Pinion size: 28 mm
• Pinion type: 10-tooth

FEATURES & BENEFITS

• Direct replacement design for compatible Holden V8 Gen3 LS1 5.7L applications
• 12 V, 1.4 kW output for strong and consistent engine starting
• Engineered to match original mounting dimensions and pinion engagement
• Suitable for aftermarket repair and replacement use

WARRANTY & RETURNS

• 12-month replacement warranty for manufacturer defects
• Defective, damaged or incorrect items may be refunded or replaced
• Items must be returned in original packaging with all accessories
• Installation costs are not covered

SHIPPING

Orders are dispatched from a Sydney-based warehouse, typically within two business days, unless otherwise stated.

DISCLAIMER

This is an aftermarket replacement part and is not manufactured or endorsed by the original vehicle manufacturer. It is intended for use in repair and service applications only.
