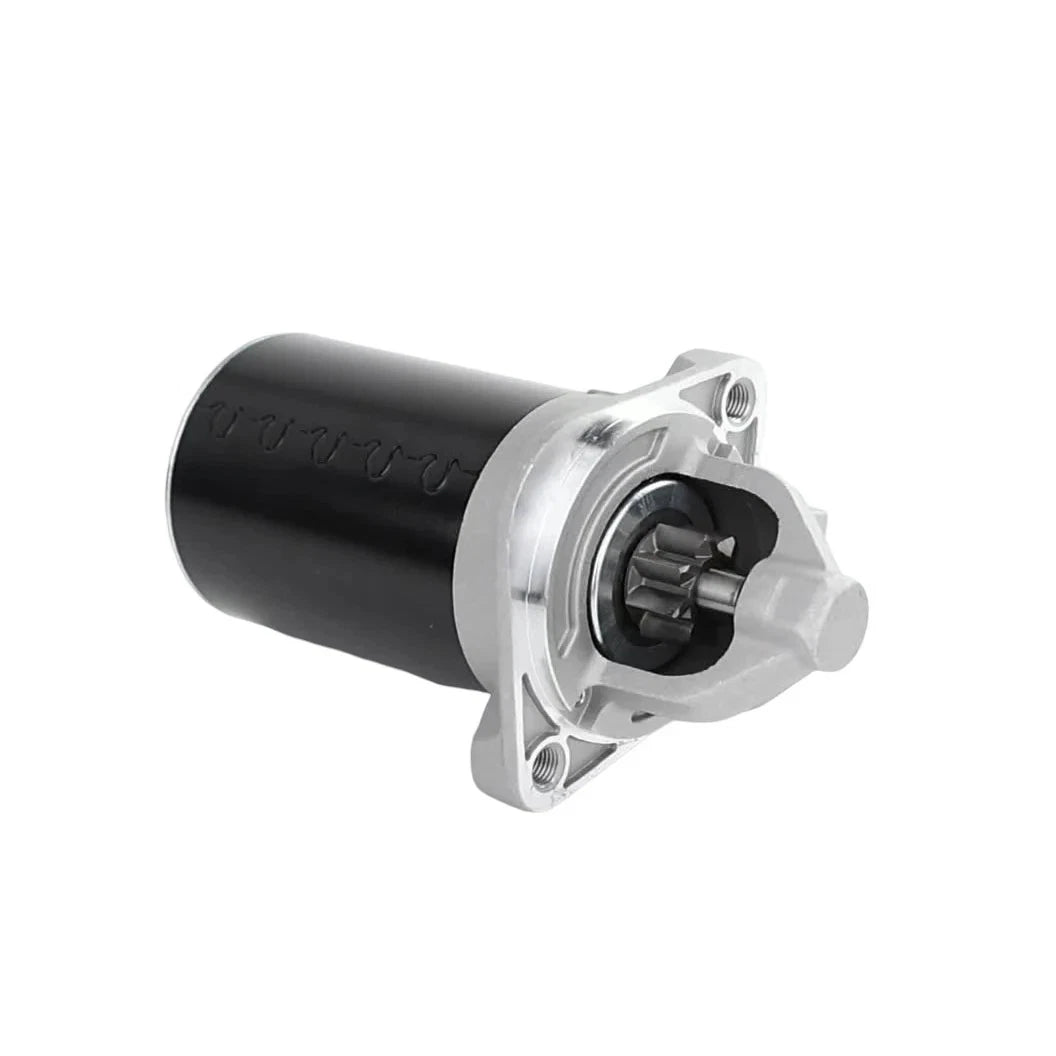

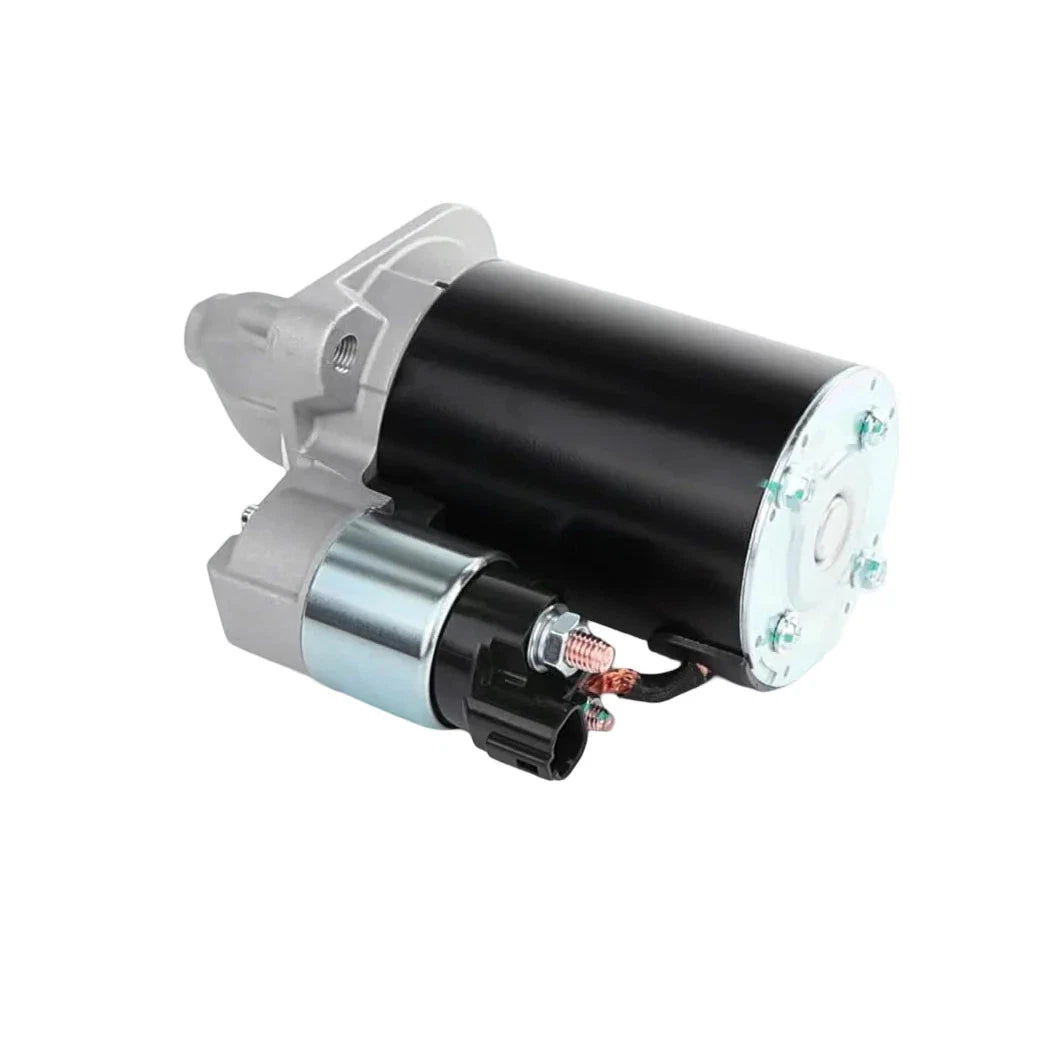

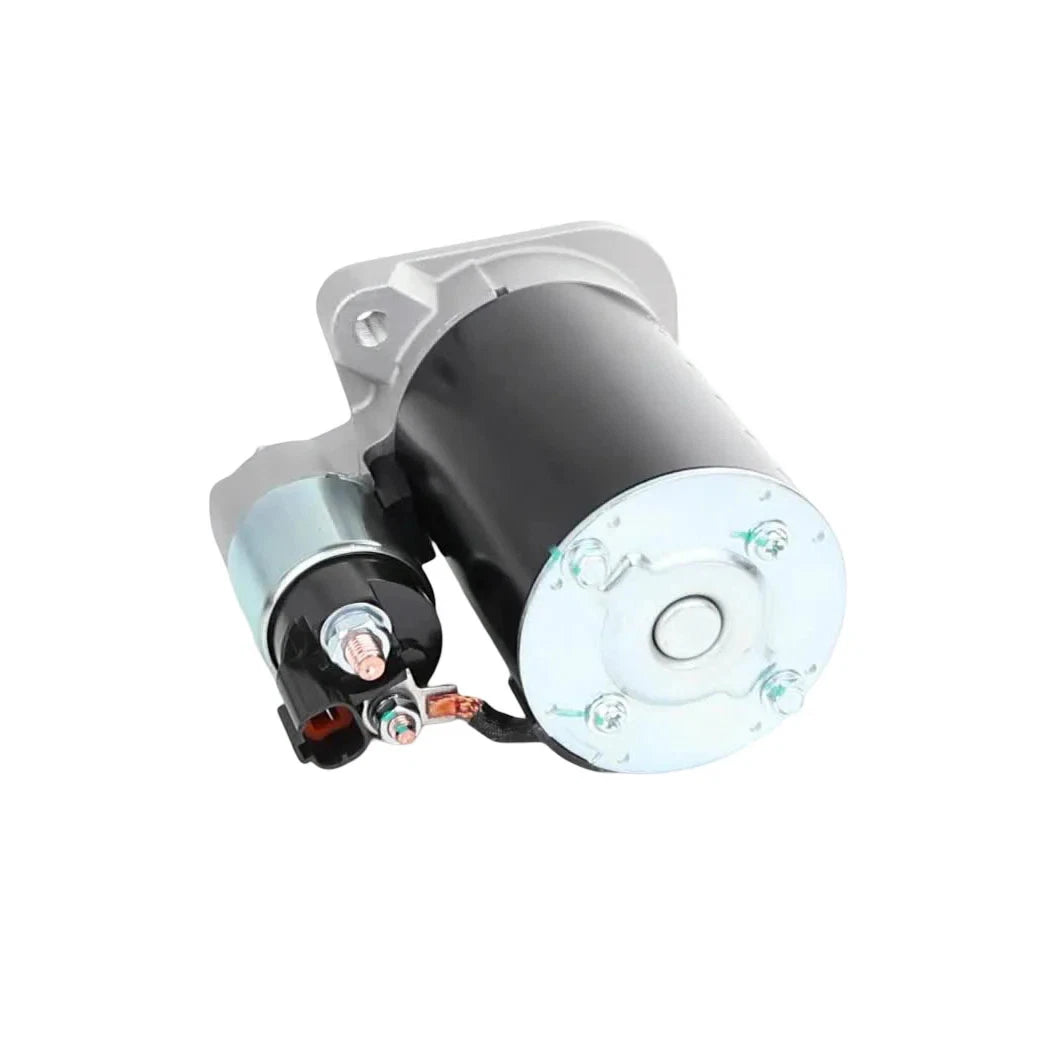

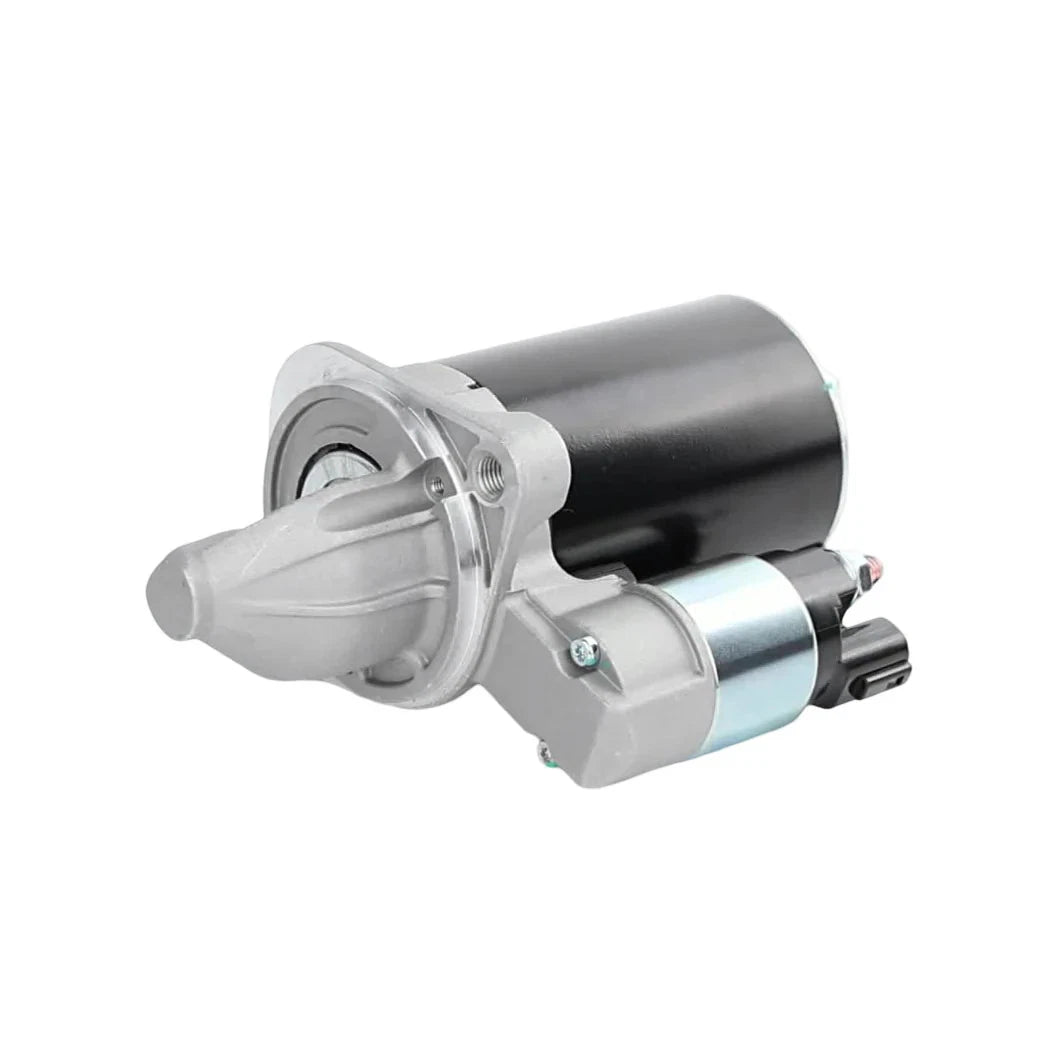

Starter Motor for Hyundai i20 PB GB & i30 FD GD 1.4L 1.6L 8-Tooth 12V

PRODUCT OVERVIEW

This brand new 12V starter motor is designed for selected Hyundai i20 PB/GB and i30 FD/GD/GDe 1.4L and 1.6L petrol models. Built to ISO/TS16949 standards, it provides reliable starting performance and OEM-style fitment. This unit features an 8-tooth pinion and is suitable for automatic transmission applications without stop/start (where applicable). Please confirm the OE part number and tooth count before purchase.

VEHICLE COMPATIBILITY

• Hyundai i20 PB, GB (NZ models) 1.4L G4FA G4LC / 1.6L G4FC FWD (07/2010 - 08/2015)
  8-tooth, automatic transmission, without stop/start – check OE part number
  Includes sub-models Active, Elite, Premium
• Hyundai i30 FD, GD, GDe 1.6L G4FC G4FD FWD (04/2008 - 03/2016)
  8-tooth pinion
  Includes sub-models SX, Tourer 1.6 GDi, Tourer Active 1.6 GDi

This starter uses an 8-tooth pinion. For vehicles that require a 10-tooth pinion, a different starter motor is needed.

SPECIFICATIONS

• Voltage: 12V
• Power rating: 0.9 kW
• Rotation direction: Clockwise
• Pinion teeth: 8T
• Pinion at rest: 22 mm
• Pinion diameter: 28 mm
• Overall length: 180 mm
• Mounting bolt centre-to-centre: 100 mm
• Mounting hole thread: M10 x 1.25
• Flange diameter: 77 mm
• Nose cone length: 57 mm

WHAT'S INCLUDED

• 1 x starter motor

WARRANTY & SUPPORT

This starter motor is supplied with a 12 month / 20,000 km warranty. Professional customer support is available for pre-purchase fitment questions and post-purchase assistance. Always verify specifications, mounting dimensions and pinion tooth count against your original unit before installation.
