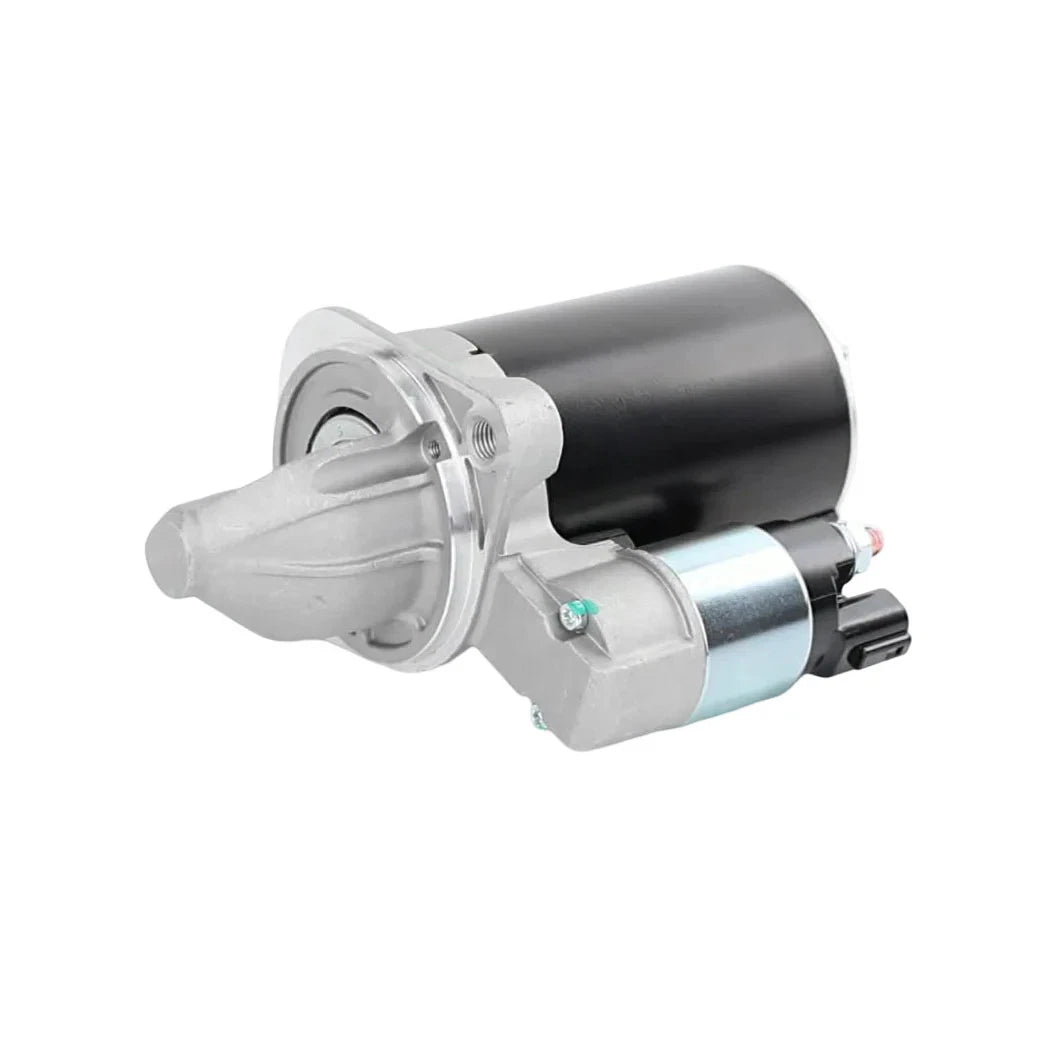

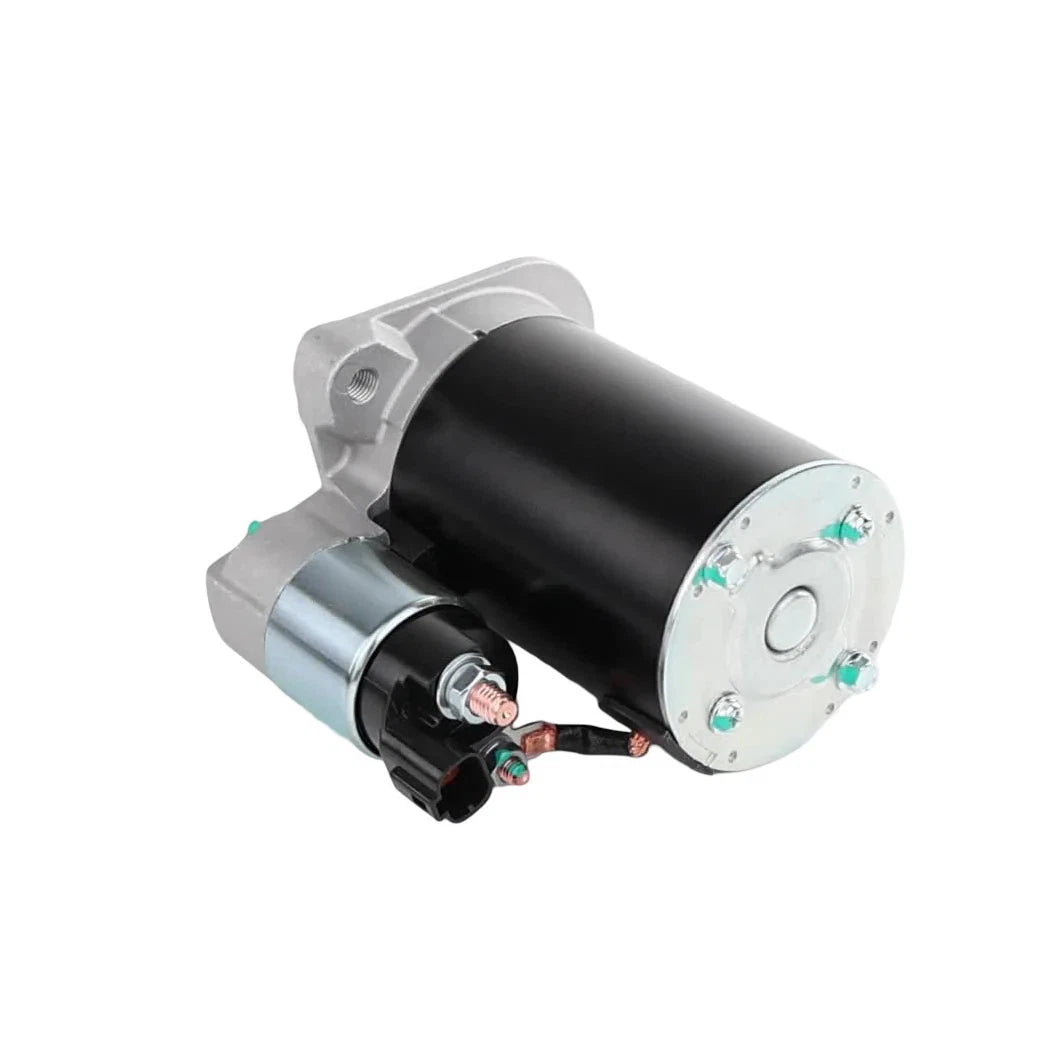

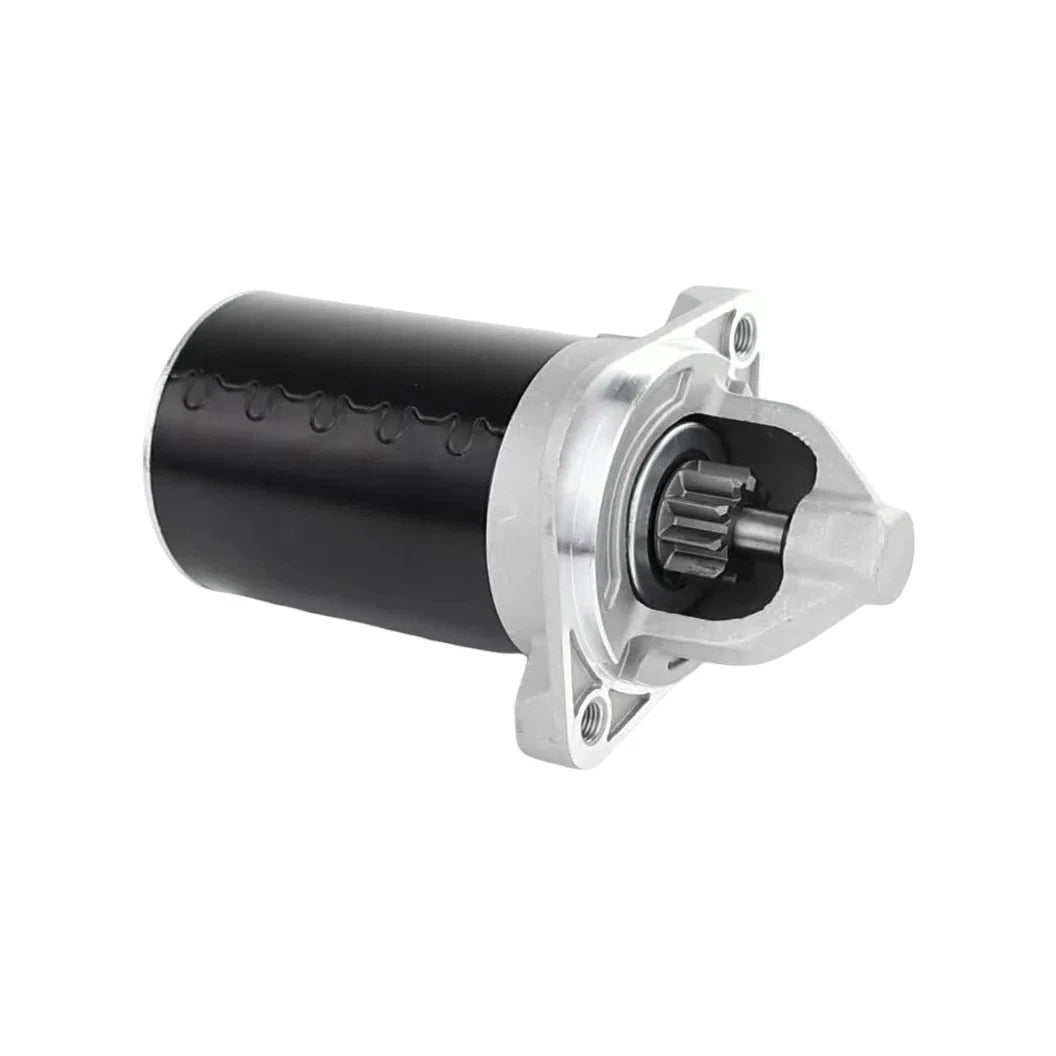

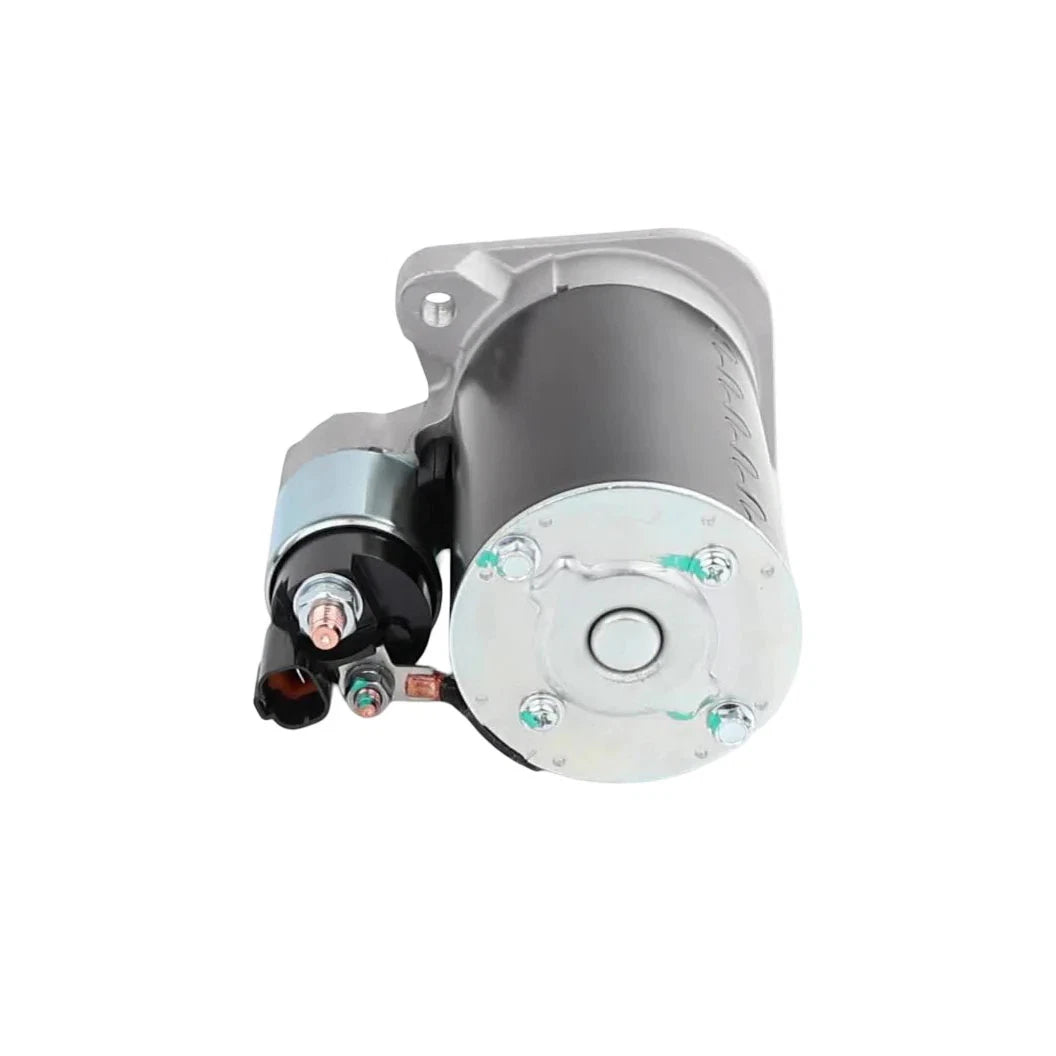

Starter Motor 12V 0.9kW 10-Tooth for Hyundai i20 & Veloster

PRODUCT OVERVIEW

Brand new 12V starter motor designed to deliver reliable starting performance for selected Hyundai i20 and Hyundai Veloster applications using a 10-tooth pinion.

KEY FEATURES

• New unit — not remanufactured
• 10-tooth pinion for compatible Hyundai petrol engines
• Built to stringent international quality standards
• Engineered for consistent cold and hot start performance

VEHICLE DETAILS (REFERENCE ONLY)

Common applications include selected:

• Hyundai i20 PB 1.4L G4FA, 1.6L G4FC / GB 1.4L G4LC (NZ) FWD (07/2010 - 08/2015) — 10-tooth
  Includes sub-models Active, Elite, Premium, Cross, Cross Elite
• Hyundai Veloster FS 1.6L G4FD / JS 2.0L G4NH FWD (02/2012 - 12/2020) — 10-tooth
  Includes sub-models + and Street S.E.

Important: Some vehicles use different tooth counts (8-tooth or 13-tooth). Always confirm by checking your existing starter or OEM part number before purchase.

TECHNICAL SPECIFICATIONS

• Voltage: 12V
• Power: 0.9kW
• Rotation direction: Clockwise
• Pinion teeth: 10T
• Pinion at rest: 22mm
• Pinion diameter: 28mm
• Overall length: 180mm
• Mounting bolt centre-to-centre: 100mm
• Mounting hole thread: M10 x 1.2
• Flange diameter: 77mm
• Nose cone length: 57mm

WHAT'S INCLUDED

• 1 x Starter motor (10-tooth)

WARRANTY & SUPPORT

• 12 month / 20,000km warranty (whichever occurs first)
• Technical support available for pre-purchase and after-sales queries

Always verify starter dimensions, mounting details, pinion tooth count and electrical specifications against your original unit before installation.
