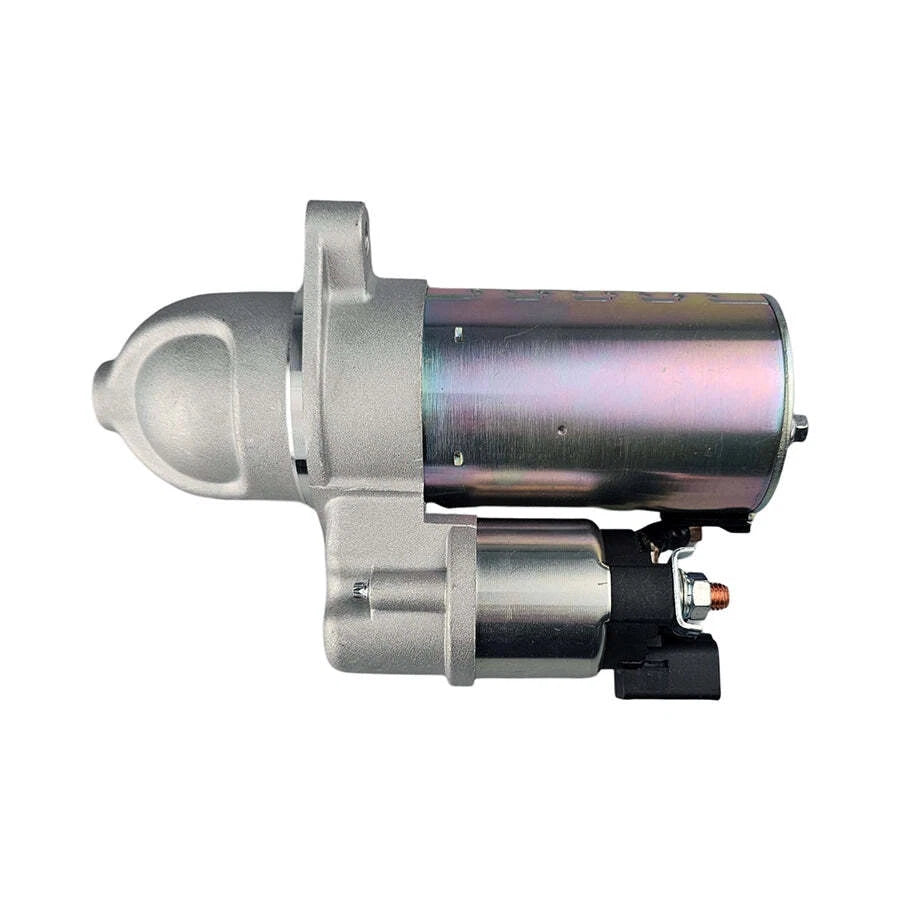

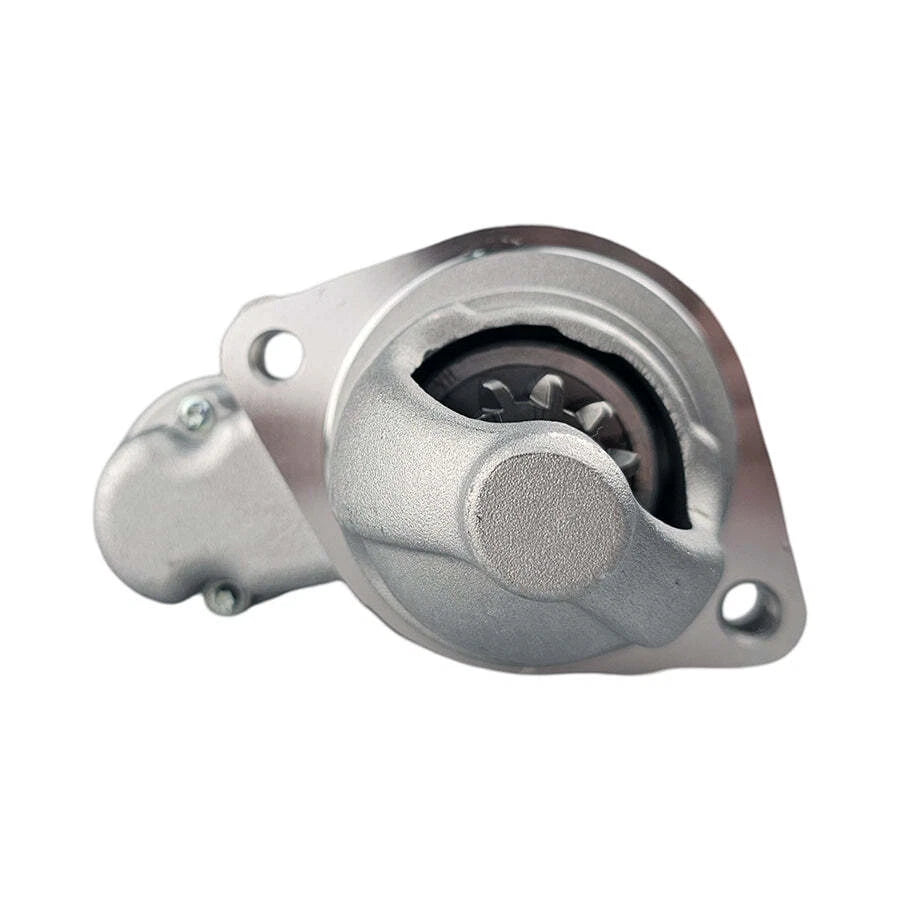

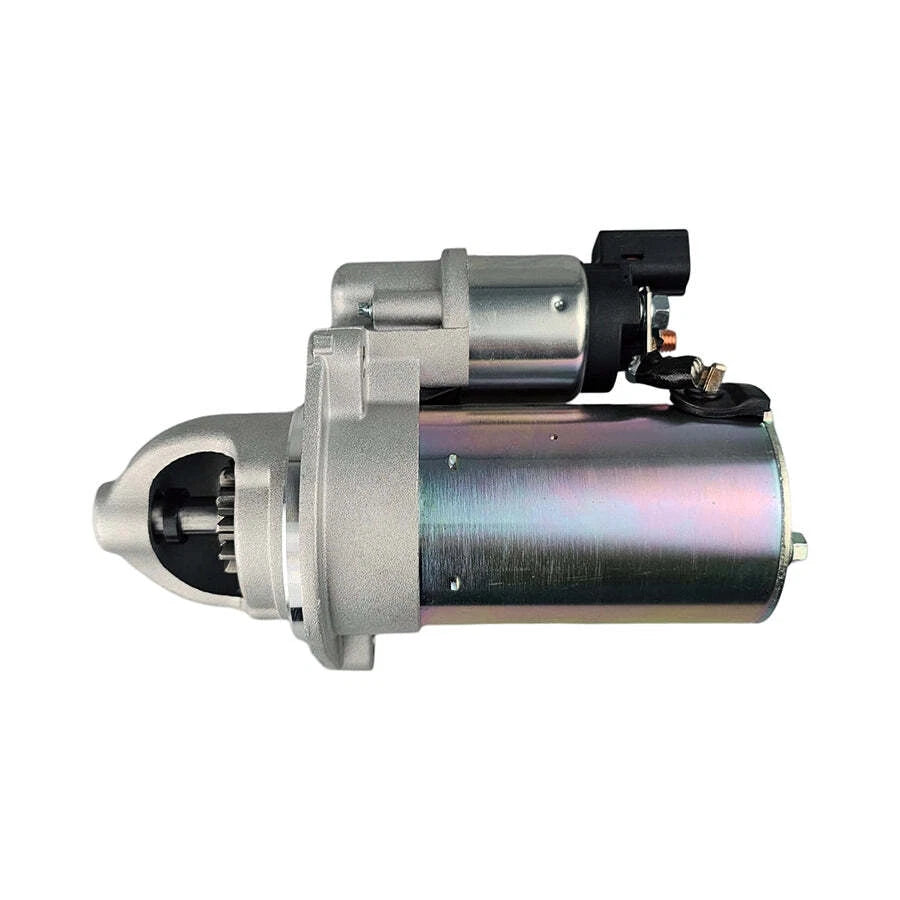

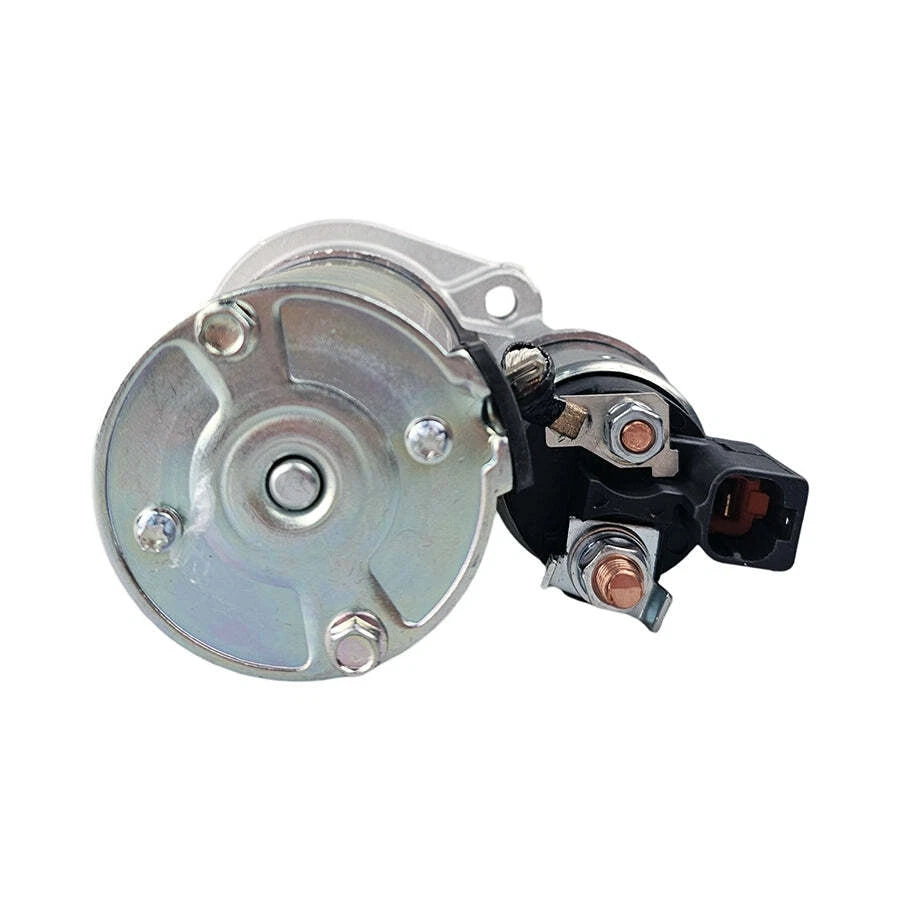

Starter Motor 11 Tooth for Hyundai i45, iLoad, iMax, ix35 2.0L / 2.4L

PRODUCT OVERVIEW

This brand new 11 tooth starter motor is engineered to deliver reliable cranking performance for selected Hyundai petrol engines. Manufactured to ISO/TS16949 quality standards, it provides consistent starting power and long service life.

VEHICLE COMPATIBILITY

• Hyundai i45 YF 2.0L G4KD / 2.4L G4KJ FWD (05/2010 - 01/2013) – models Active, Elite, Premium
• Hyundai iLoad / iMax inc. H1 iMax TQ 2.4L G4KG RWD (02/2008 - 04/2018) – models iLoad, iMax, H1 iMax, 3S Liftback
• Hyundai ix35 LM 2.0L G4KD FWD / 2.4L G4KE G4KJ AWD (02/2010 - 06/2015) – models Active, Elite, SE, Highlander

Please confirm specifications and mounting dimensions against your original unit before purchase.

KEY FEATURES

• Brand new unit (not remanufactured)
• 11 tooth pinion for precise engagement
• Built to ISO/TS16949 quality standards
• Designed for petrol 2.0L and 2.4L Hyundai engines listed

SPECIFICATIONS

• Voltage: 12V
• Power: 1.2 kW
• Rotation direction: Clockwise
• Pinion teeth: 11T
• Pinion at rest: 30 mm
• Pinion diameter: 34 mm
• Overall length: 210 mm
• Mounting bolt centre-to-centre: 94 mm
• Mounting hole: M8 x 1.25
• Flange diameter: 70 mm
• Nose cone length: 68 mm

WHAT'S INCLUDED

• 1 x Starter motor

WARRANTY

• 12 month / 20,000 km warranty (whichever occurs first)

Professional support is available for pre-purchase questions and after-sales assistance to help ensure correct selection and installation.
