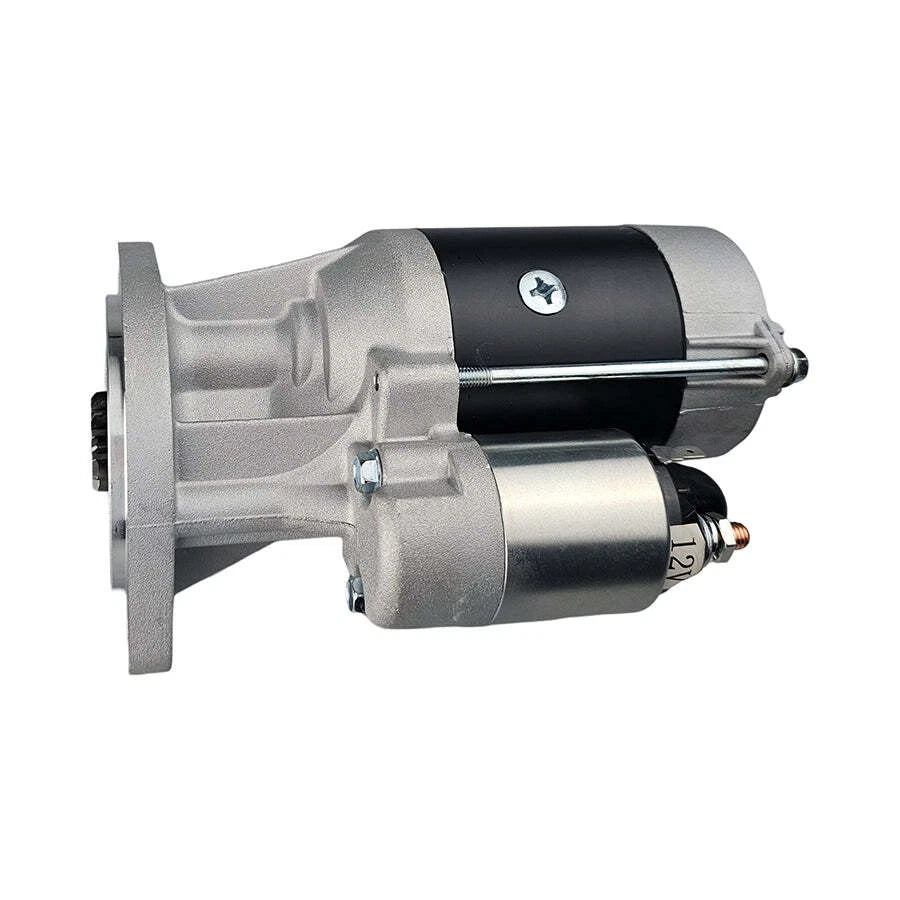

Starter Motor 12V 2.3kW for Isuzu D-Max MU MU-X 3.0L 3.1L Diesel

PRODUCT OVERVIEW

Brand new, high-quality starter motor engineered to meet ISO/TS16949 standards, providing reliable starting performance for selected Isuzu D-Max, MU and MU-X diesel applications.

KEY FEATURES

• Brand new unit (not remanufactured)
• Manufactured to stringent international quality standards (ISO/TS16949)
• Designed for selected Isuzu 3.0L and 3.1L turbo diesel engines
• Clockwise rotation with 9-tooth pinion
• Durable construction for consistent cold-start performance

SPECIFICATIONS

• Voltage: 12V
• Power: 2.3kW
• Rotation direction: Clockwise

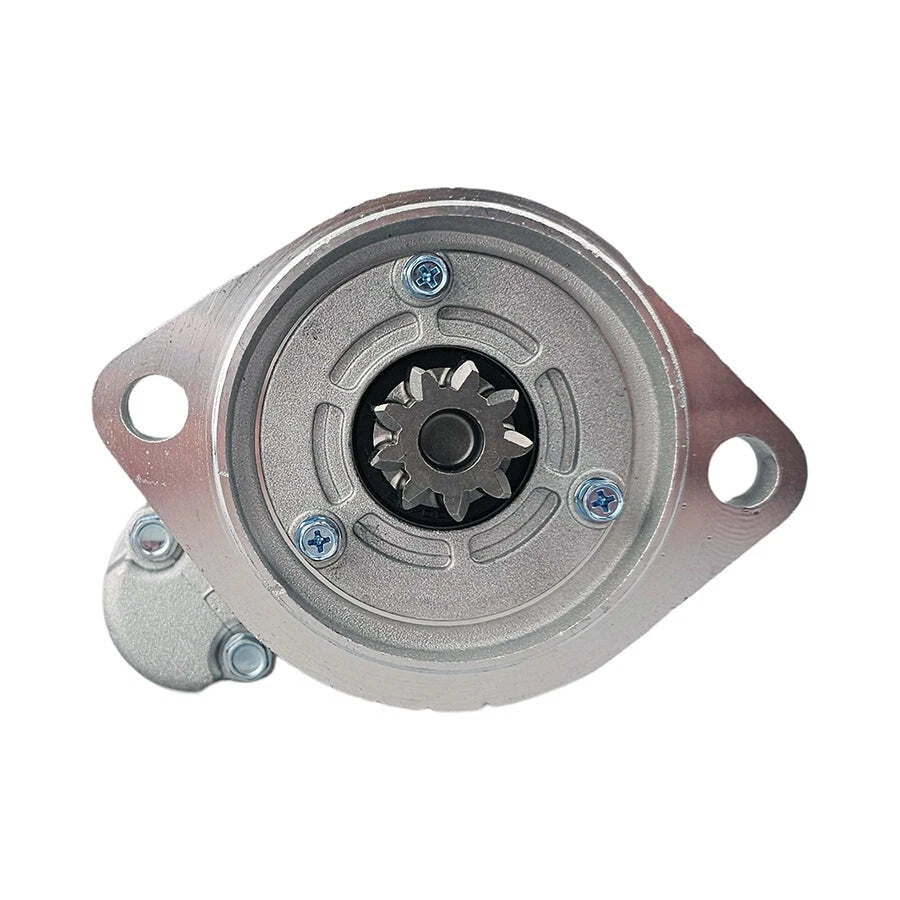

• Pinion teeth: 9T
• Pinion at rest: 10mm
• Pinion diameter: 32mm
• Overall length: 210mm
• Mounting bolt centre-to-centre: 120mm
• Mounting hole diameter: 13mm
• Flange diameter: 95mm
• Nose cone length: N/A

VEHICLE APPLICATION NOTES

Suitable for selected Isuzu diesel applications including:

• D-Max TFR/TFS 3.0L 4JJ1TCX Turbo I/C RWD & 4WD (10/2008 - 06/2020)
• MU (aka Wizard) UCS 3.1L 4JG2T Turbo I/C 4WD (09/1993 - 05/1998)
• MU-X UCR/UCS 3.0L 4JJ1TC Turbo I/C RWD & 4WD (11/2013 - 06/2021)

Model ranges include variants such as SX, EX, LE, LS-M, LS-U, LS-Terrain, X-Runner and Wizard trims. Always confirm by comparing specifications and checking the OE part number on your original starter where possible.

WHAT'S INCLUDED

• 1 x Starter motor

WARRANTY

Supplied with a 12 month / 20,000km warranty, subject to correct installation and use in accordance with manufacturer guidelines.
