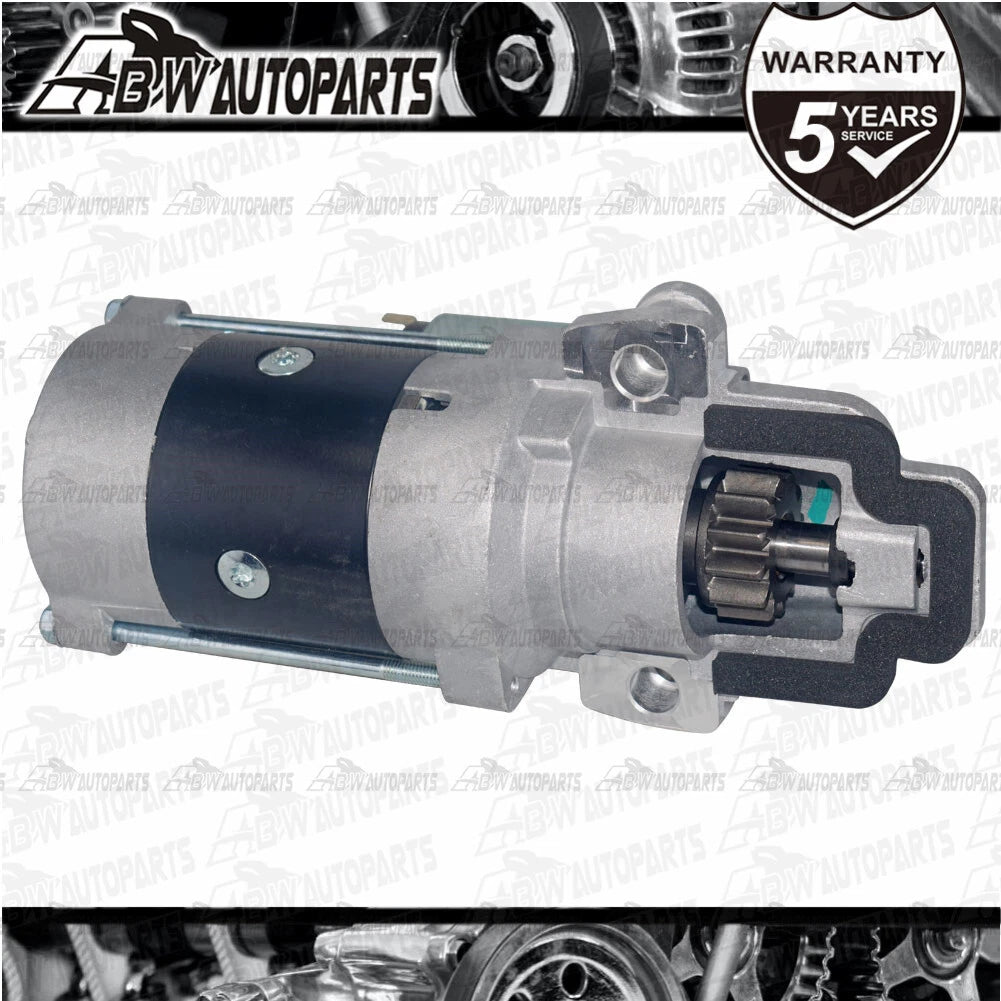

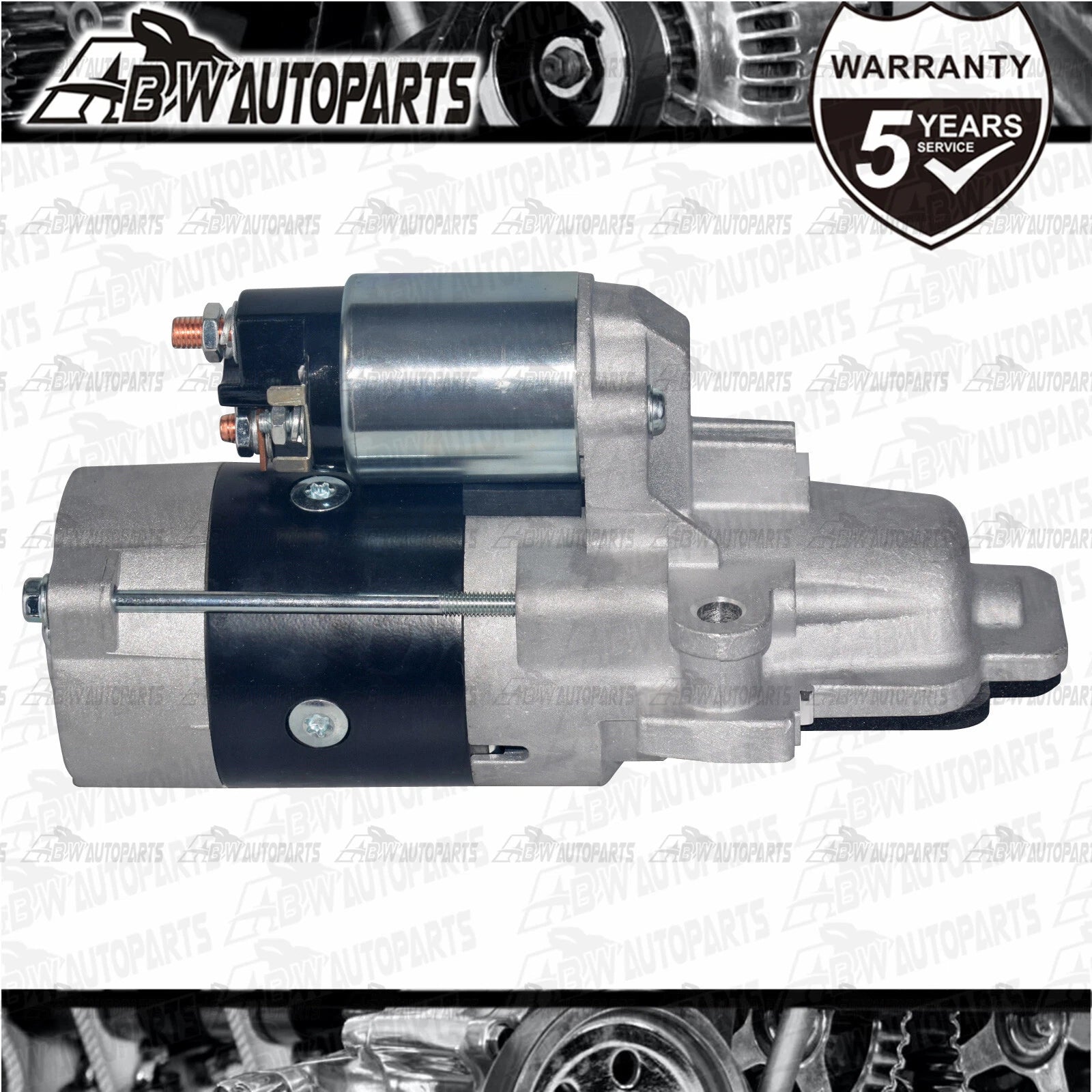

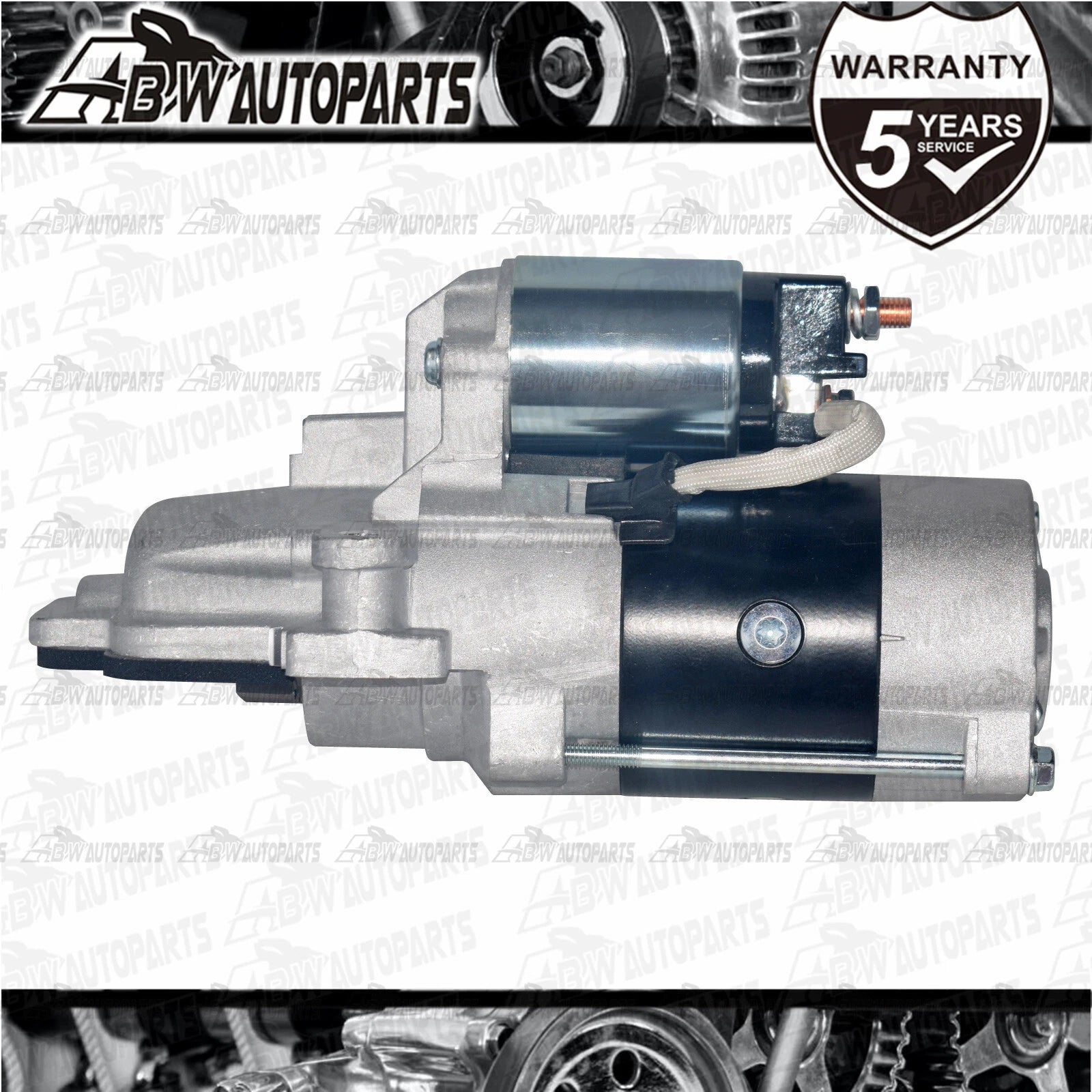

Starter Motor M2T86071 for Mazda BT-50 UP/UR & Ford P5AT 3.2L Diesel

PRODUCT OVERVIEW

Brand new starter motor M2T86071 designed for P5AT 3.2L diesel engines, providing reliable cold-start performance and direct replacement fitment.

COMPATIBLE VEHICLES

• Mazda BT-50 UP / UR with P5AT 3.2L diesel engine (2011–2020)
• Ford Ranger PX1 / PX2 / PX3 with P5AT 3.2L diesel engine (2011–2022)
• Ford Everest UA with P5AT 3.2L diesel engine (2015–2022)

Verify engine code (P5AT) and year range before purchase to ensure correct fitment.

KEY FEATURES

• Brand new unit (not remanufactured)
• Built for P5AT 3.2L common rail diesel applications
• Direct bolt-in replacement for OEM-style starter
• High torque output for reliable starting under load

TECHNICAL SPECIFICATIONS

• Part number: M2T86071
• Voltage: 12V
• Power: 2.2 kW
• Overall length: 205 mm
• Mounting hole diameter: 11 mm
• Mounting holes centre-to-centre: 89 mm
• Flange diameter: 89 mm
• Nose cone length: 82 mm
• Pinion at rest: 38 mm
• Field housing diameter: 80 mm

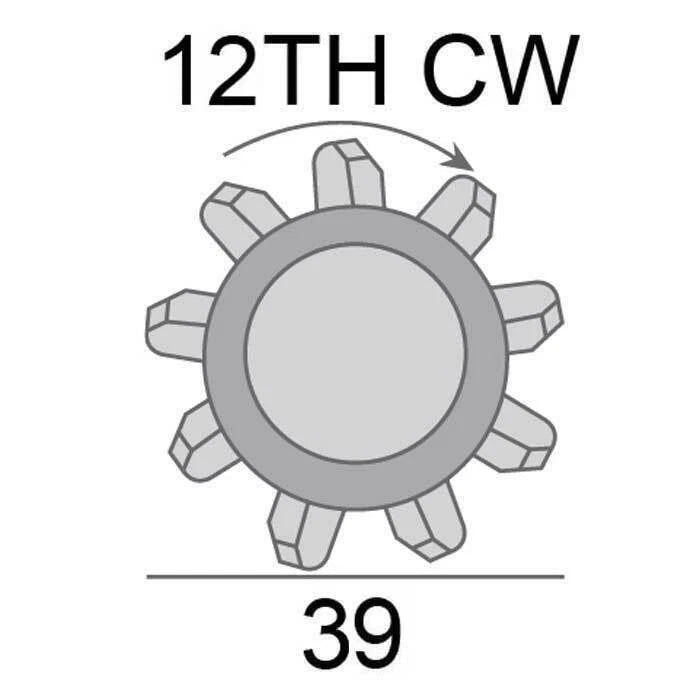

• Pinion: 12 teeth, clockwise rotation, 39 mm diameter

INSTALLATION NOTES

• Professional installation is recommended
• Always compare the old starter with the new unit before final fitting
• Check battery condition and charging system when replacing the starter
