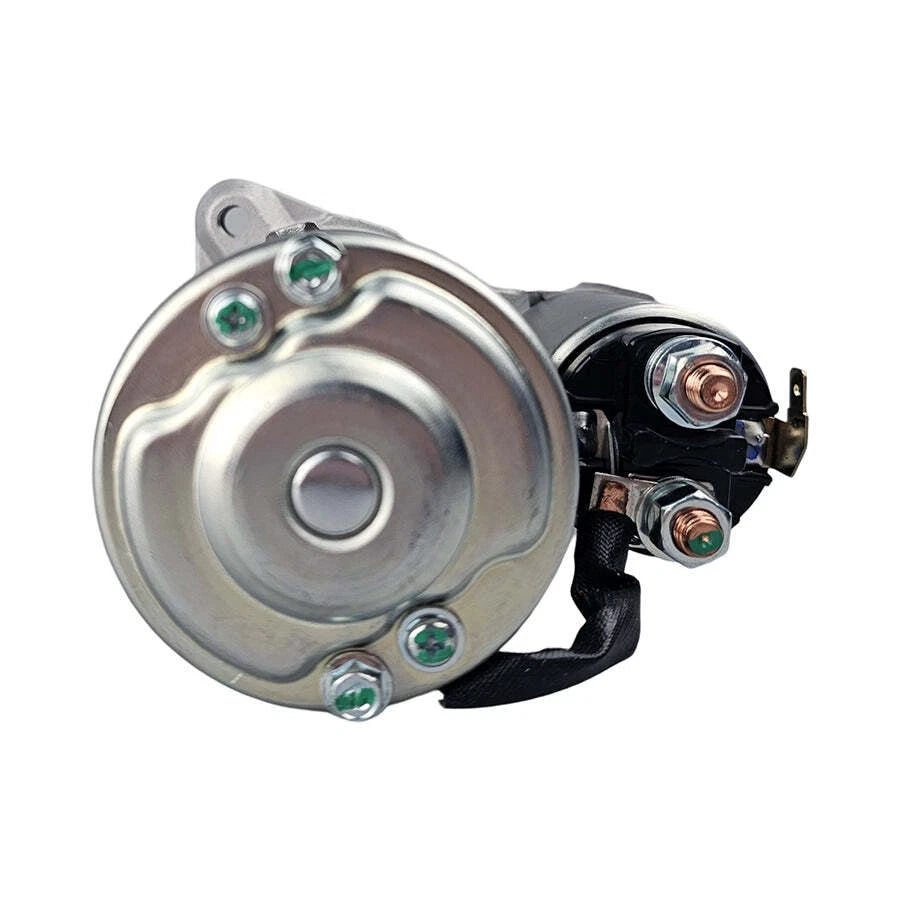

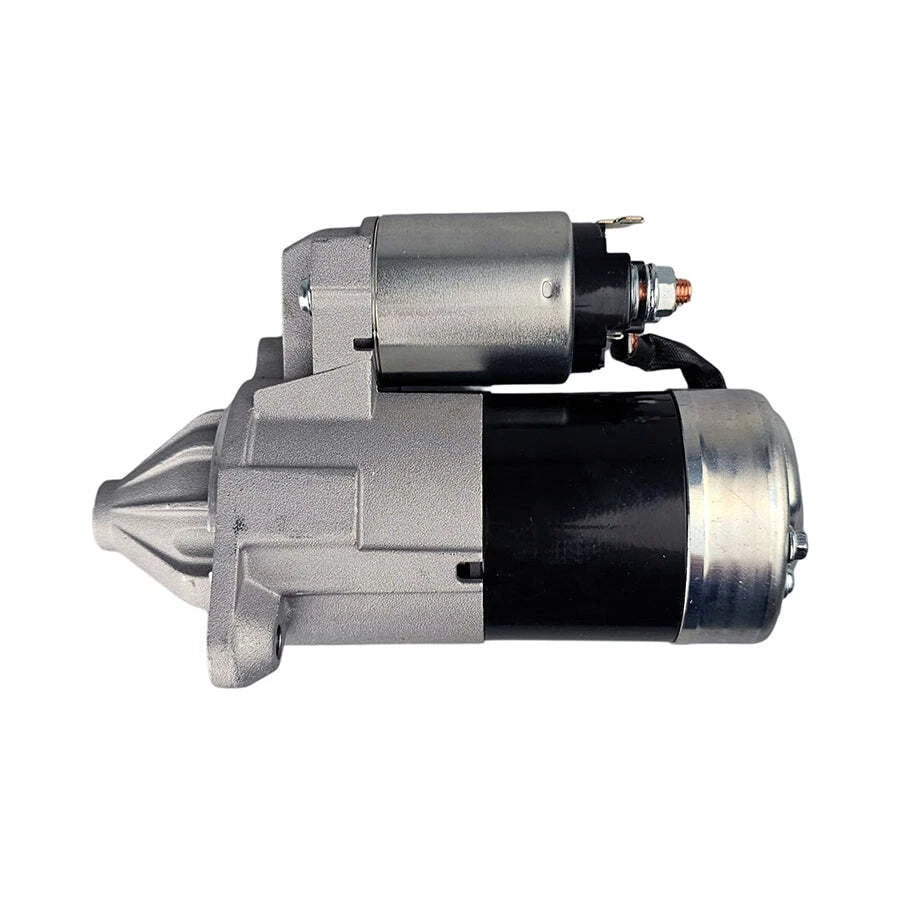

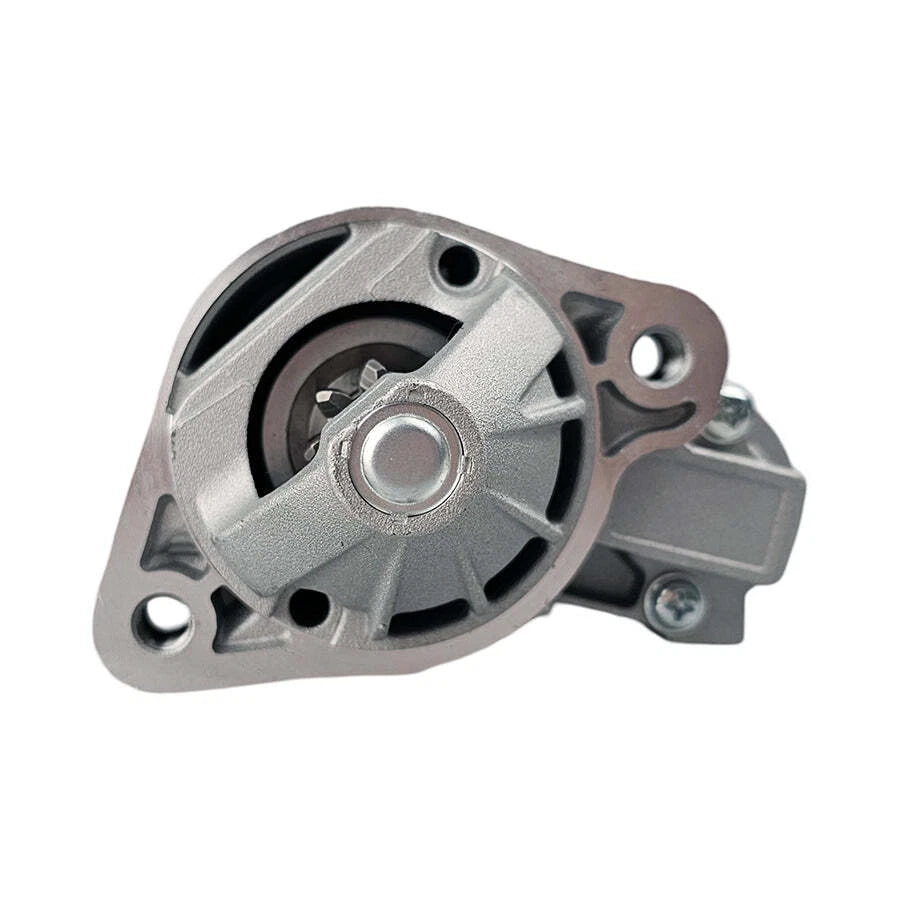

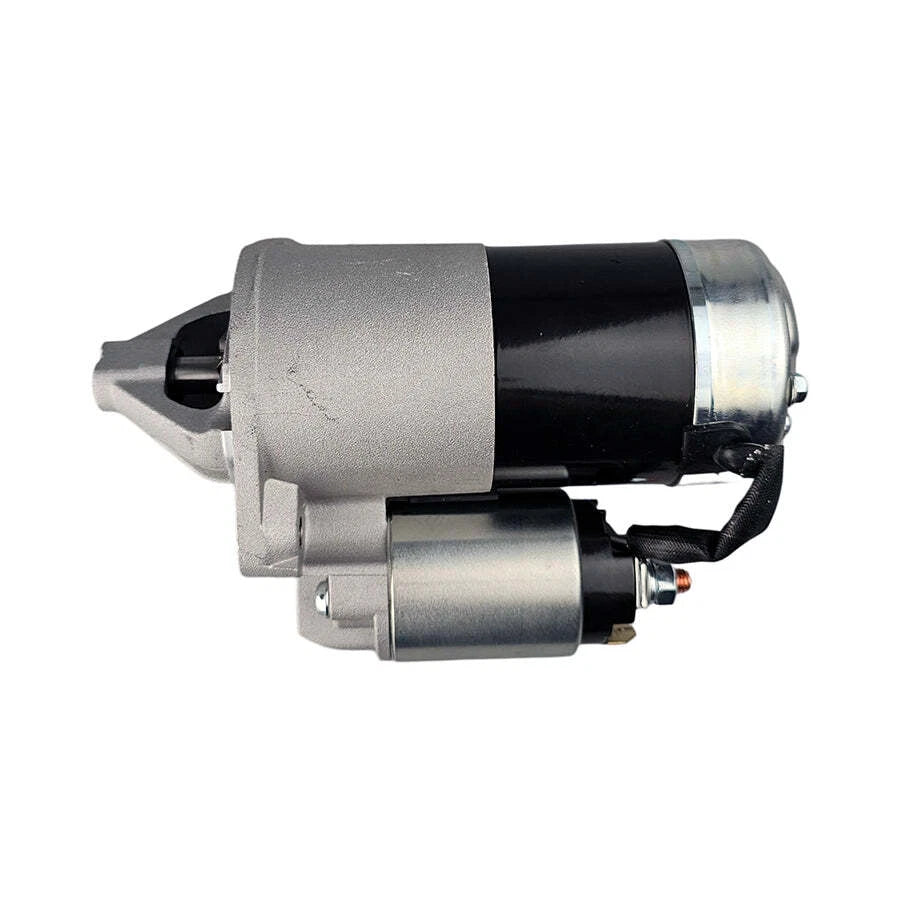

Starter Motor 1.2kW for Mitsubishi Pajero & Triton 6G72 6G74 6G75

PRODUCT OVERVIEW

This brand new 1.2kW starter motor is engineered to meet ISO/TS16949 quality standards, delivering reliable starting performance for selected Mitsubishi Pajero and Triton petrol engines. Please confirm all specifications and pinion-at-rest distance before purchase. For alternate sizes, refer to part BSM1030.

VEHICLE FITMENT

Suitable for selected Mitsubishi applications (check specs and existing unit before ordering):

• Mitsubishi Pajero NJ NK 3.0L 6G72 4WD (01/1991 - 05/1997) – models GLS, GLX
• Mitsubishi Pajero NJ NK NL NM NP 3.5L 6G74 4WD (07/1993 - 07/2003) – models GLS, GLX, Exceed, GLS-SP, GLS-SP Exceed, GLX SP
• Mitsubishi Pajero NP NS NT NW 3.8L 6G75 4WD (08/2003 - 05/2013) – models Exceed, GLS, GLX, VRX, R, RX, X, Activ, Platinum Edition
• Mitsubishi Triton MK 3.0L 6G72 / ML 3.5L 6G74 RWD & 4WD (06/1996 - 08/2009) – models GLX, GLS, GLX-R, VR

Important: Always check the pinion-at-rest distance and dimensions against your existing starter to ensure correct engagement.

SPECIFICATIONS

• Voltage: 12V
• Power: 1.2kW
• Rotation direction: Clockwise
• Pinion teeth: 8
• Pinion at rest: 10mm
• Pinion diameter: 28mm
• Overall length: 208mm
• Mounting bolt centre-to-centre: 100mm
• Mounting hole thread: M10 x 1.25
• Flange diameter: 74mm
• Nose cone length: 45mm

WHAT'S INCLUDED

• 1 x Starter motor (1.2kW, 12V)

WARRANTY & SUPPORT

This starter motor is supplied with a 12 month / 20,000km warranty. Professional technical support is available for pre-purchase questions and post-purchase assistance to help ensure correct selection and installation.
