Starter Motor for Toyota Corolla ZRE142 ZRE152 ZRE172 ZRE182 & RAV4 ZSA42

PRODUCT OVERVIEW

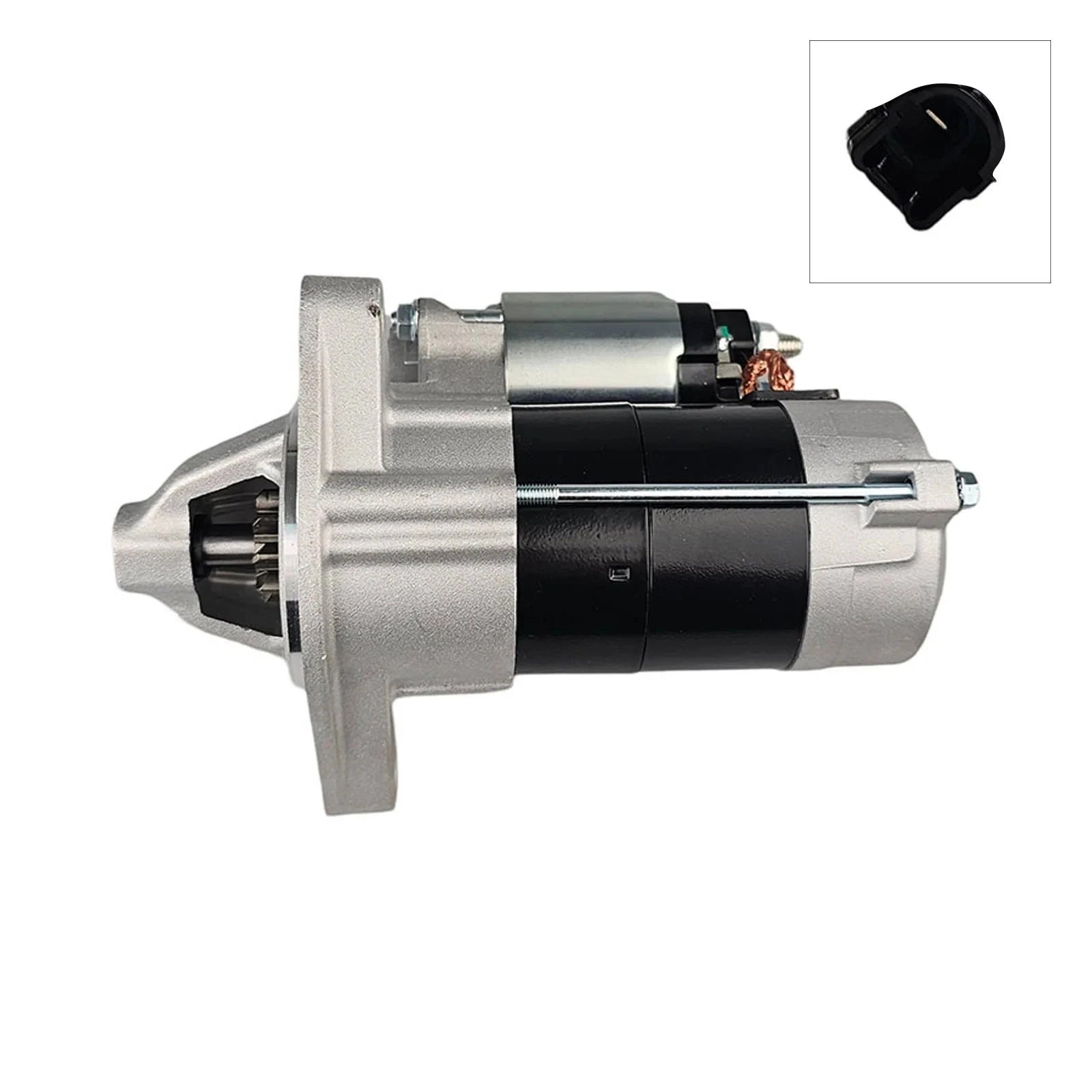

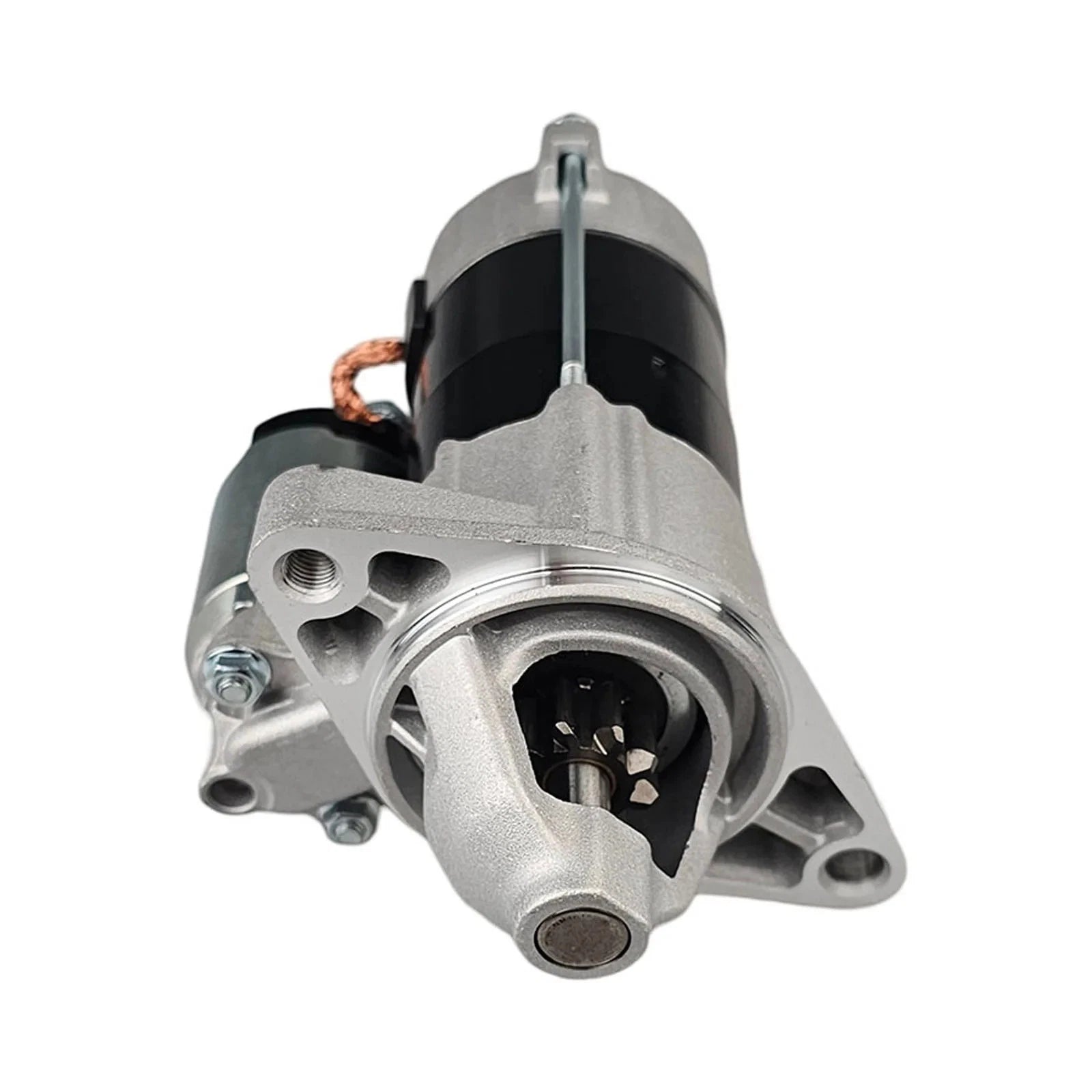

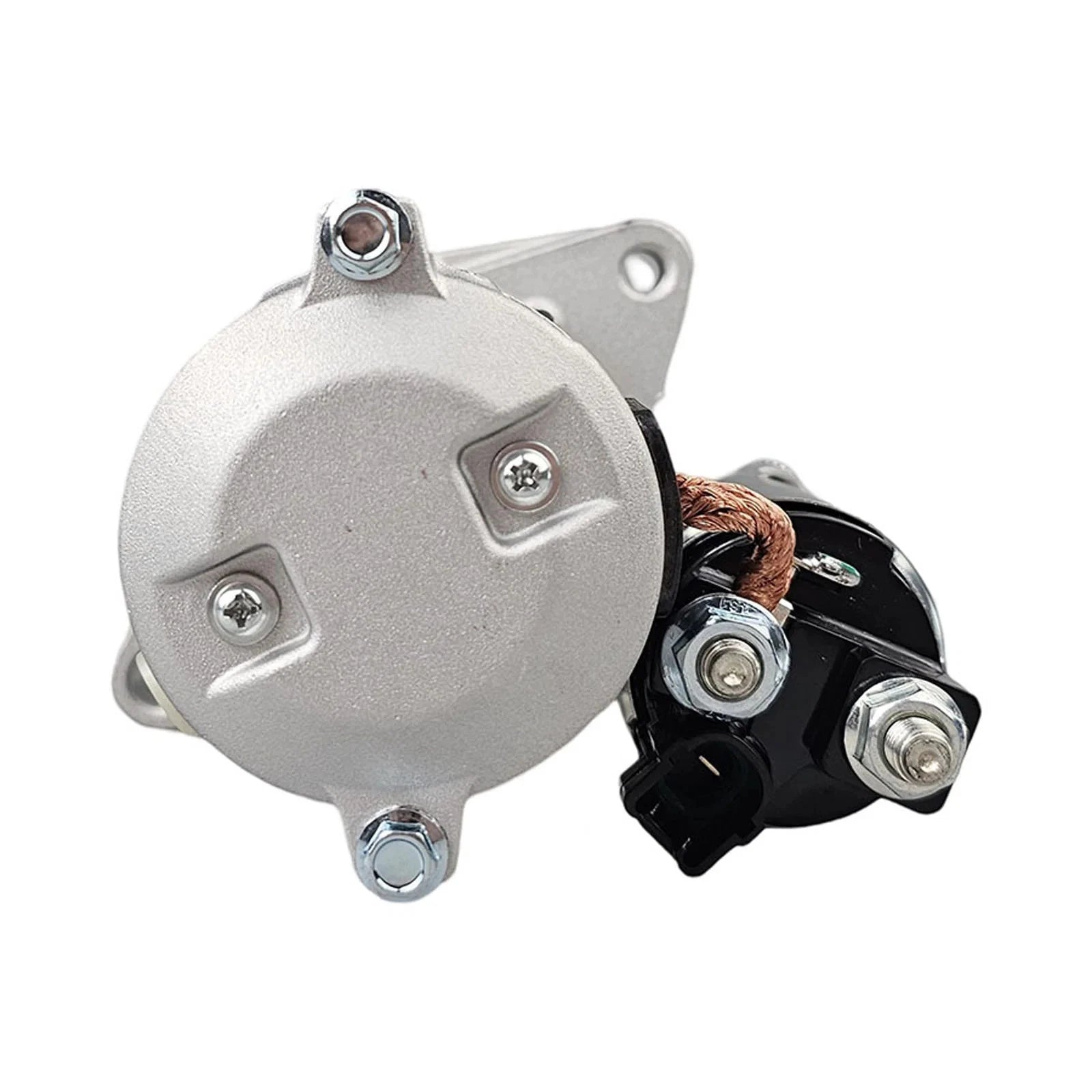

Brand new high-quality starter motor engineered to meet stringent international quality standards (ISO/TS16949). Designed as a direct replacement starter for selected Toyota Corolla ZRE series and Toyota RAV4 ZSA42 applications.

VEHICLE COMPATIBILITY

• Toyota Corolla ZRE142R 1.8L 2TR-FE (10/2006 - 04/2012) – models Axio, Axio Luxel, Fielder, Fielder S, Fielder S Aero Tourer
• Toyota Corolla ZRE152R 1.8L 2ZR-FE (05/2007 - 12/2015) – models Conquest, Levin SX, Levin ZR, Ascent, Ascent Sport, Edge, Ultima, Rumion
• Toyota Corolla ZRE152R 2.0L 3ZR-FE (06/2010 - 01/2014) – model Ultima
• Toyota Corolla ZRE172R / ZRE182R 1.8L 2ZR-FE (10/2012 - 08/2019) – models Ascent, Ascent Sport, Levin SX, Levin ZR, RZ, SX, ZR
• Toyota RAV4 ZSA42R 2.0L 3ZR-FE (02/2013 - 02/2019) – models GX, GXL, GXL Premium Interior, LTD

Always confirm part compatibility with your vehicle using engine code, build date and existing starter specifications before purchase.

TECHNICAL SPECIFICATIONS

• Voltage: 12V
• Power output: 1.2 kW
• Rotation direction: Clockwise
• Pinion teeth: 9
• Pinion at rest: 13 mm
• Pinion diameter: 29 mm
• Overall length: 180 mm
• Mounting bolt centre-to-centre: 121 mm
• Mounting hole diameter: 11 x M8 x 1.25
• Flange diameter: 74 mm
• Nose cone length: 45 mm

WHAT'S INCLUDED

• 1 x Starter motor

WARRANTY & SUPPORT

Supplied with a 12 month / 20,000 km warranty. Professional technical support is available for pre-purchase queries and post-installation assistance.
