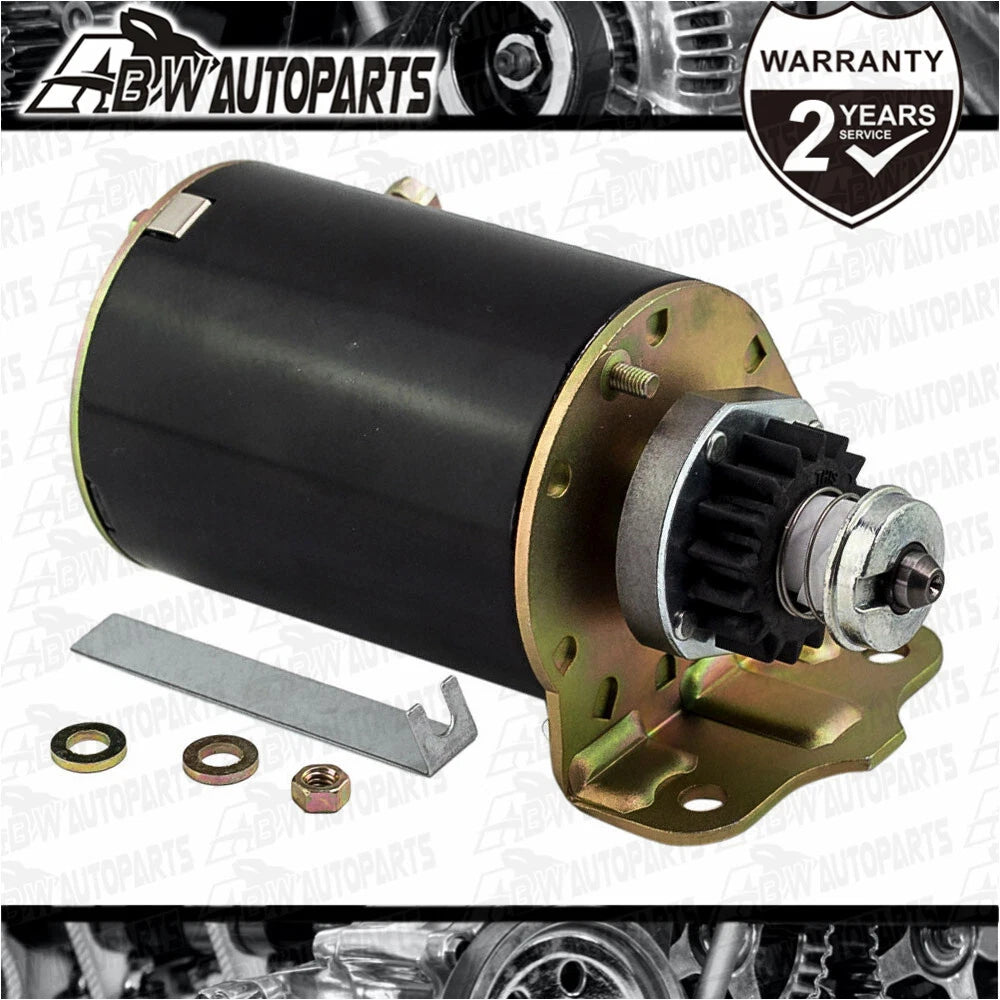

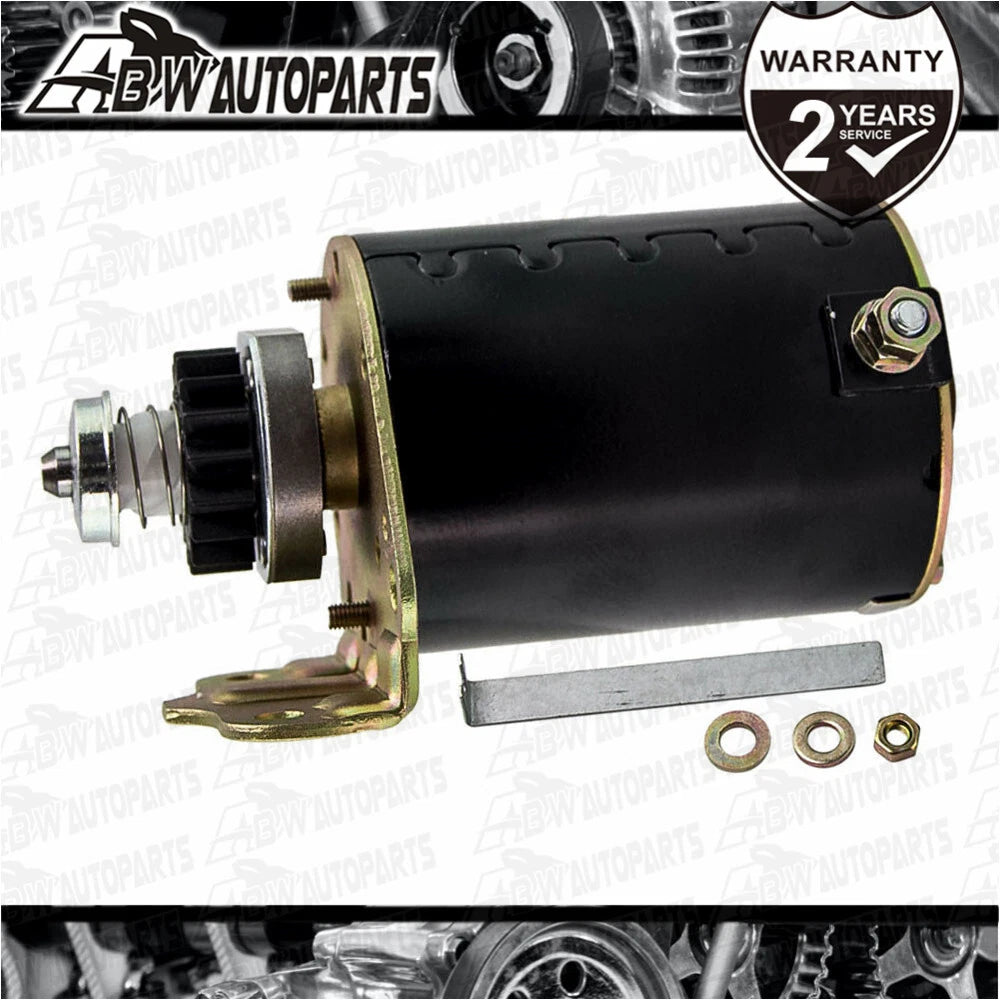

Starter Motor for Briggs & Stratton 8–13HP Engines 16T 12V 795121

PRODUCT OVERVIEW

Replacement starter motor for Briggs & Stratton 8hp–13hp engines used on ride-on mowers and outdoor power equipment. Designed as a direct replacement for multiple OEM part numbers, featuring a 16-tooth drive gear and 12V PMDD construction.

KEY FEATURES

• Suitable for Briggs & Stratton 8hp–13hp engines

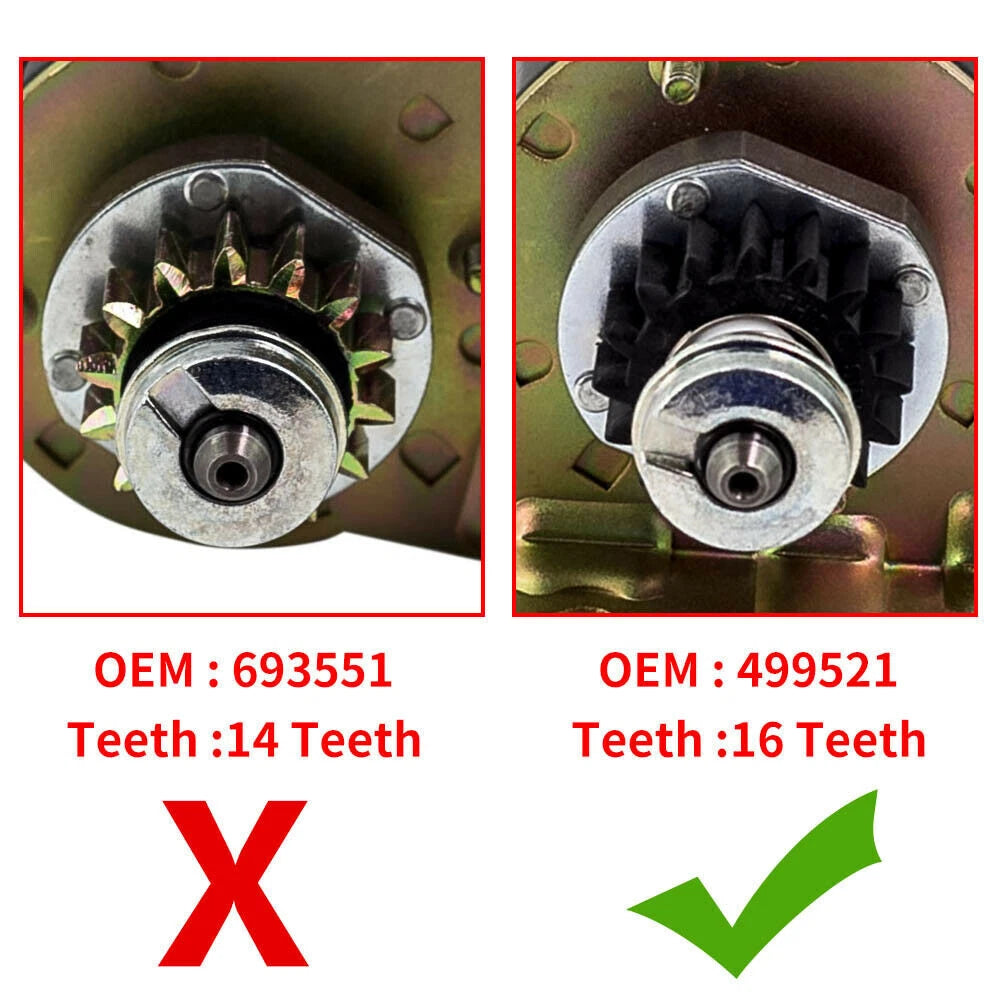

• 16-tooth starter drive gear
• 12V PMDD starter type
• Counter-clockwise (CCW) rotation
• Suits aluminium and plastic flywheel ring gears (not suitable for steel gears)
• Total starter length: 165 mm
• Supplied new with 2-year warranty

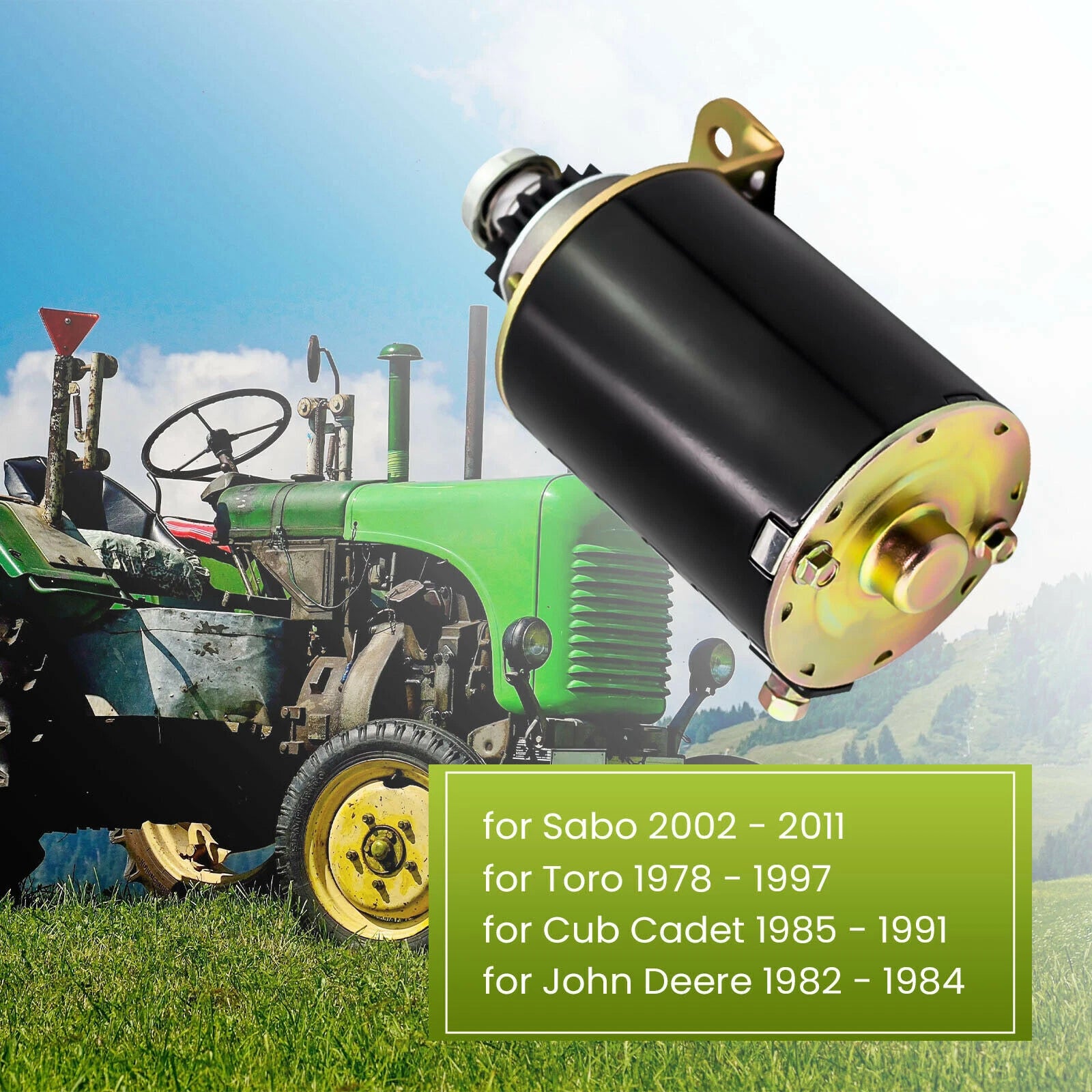

APPLICATIONS

Engine applications include (where fitted with compatible Briggs & Stratton 8hp–13hp engines):

• Cub Cadet 1015 (1988–1991)
• Cub Cadet 1020 (1988–1991)
• Cub Cadet 1105 (1985–1986)
• Cub Cadet 111 (1978–1979)
• Cub Cadet 1110 (1985–1986)
• John Deere 111 (1979–1985)
• John Deere 111H (1982–1984)
• John Deere L118
• Toro 11-32 (1978–1997)
• Toro 11-38 (1986–1987)
• Toro 212-H (1989–1991)
• Toro 825 (1991)
• Toro LT12.5G (1995)
• Toro Sand Pro 5000 (1992–1993)

Always compare specifications and part numbers with your original starter to confirm compatibility.

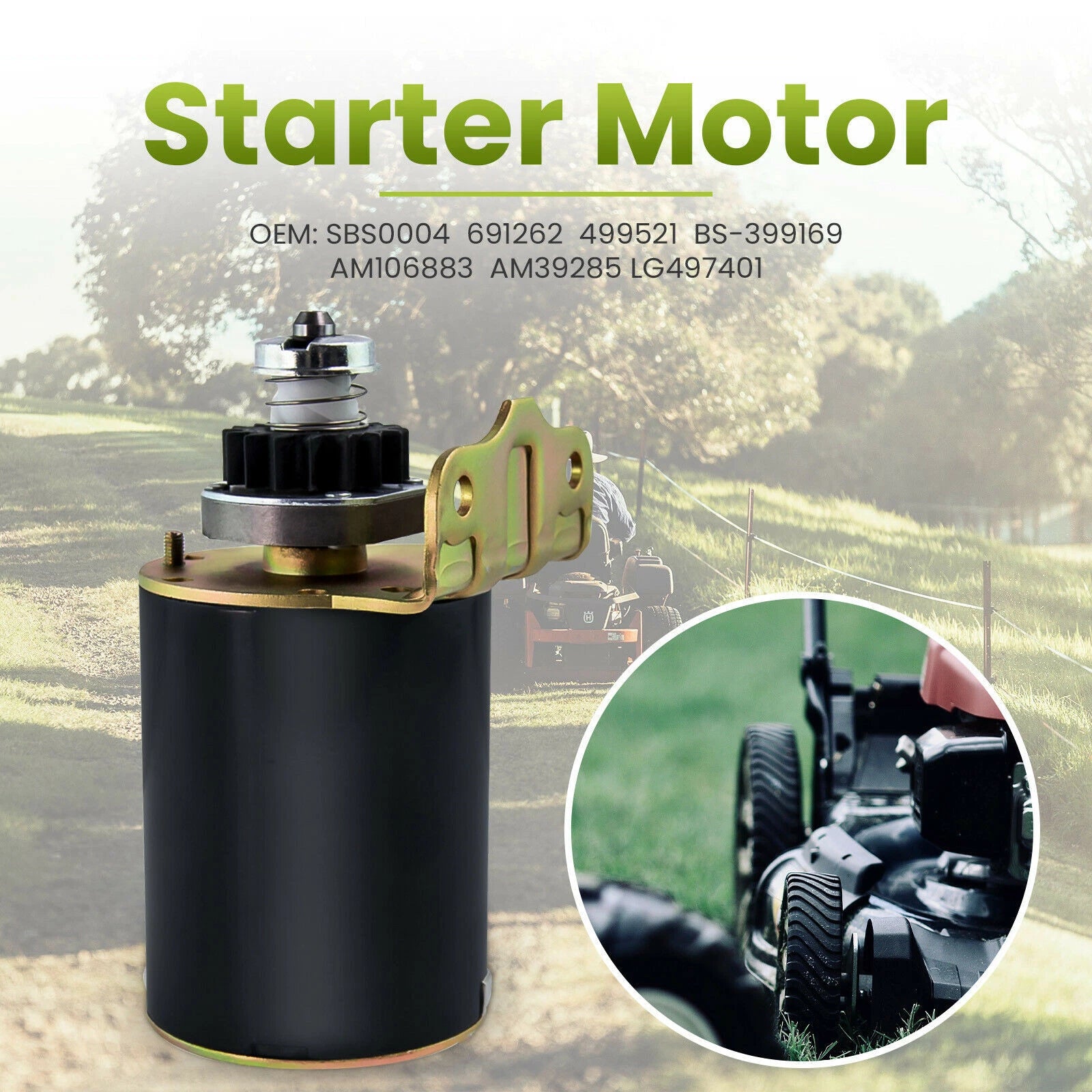

OEM & REFERENCE PART NUMBERS

This starter replaces, among others, the following reference numbers:

• SBS0004

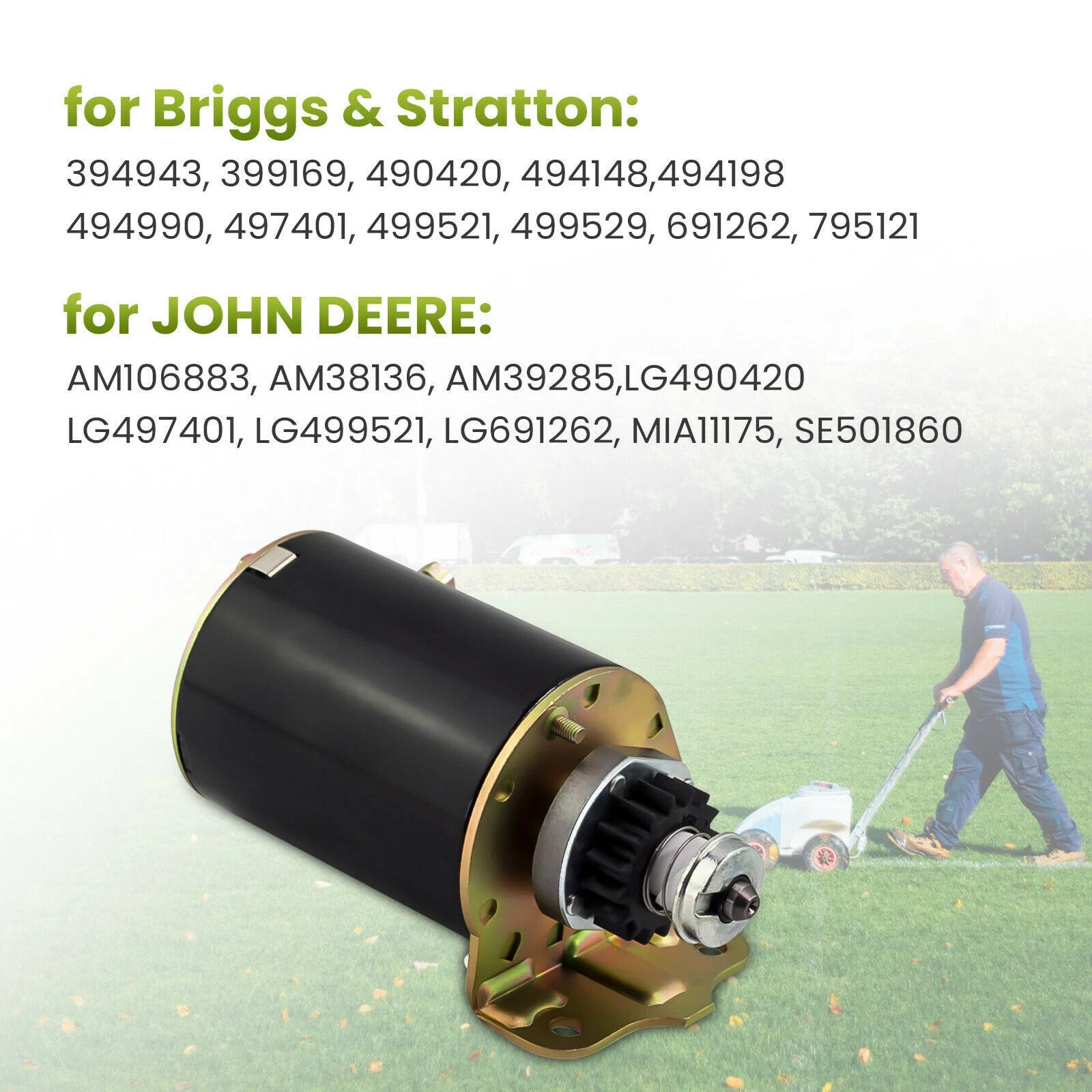

• Briggs & Stratton: 394943, 399169, 490420, 494148, 494198, 494990, 497401, 499521, 499529, 691262, 795121
• 112563, BS-399169, BS-499521
• 075255, 75255, 75255-A
• 410-22005, 410-22015
• John Deere: AM106883, AM38136, AM39285, LG490420, LG497401, LG499521, LG691262, MIA11175, SE501860
• 5746, 5778, STR-1005A, 78-4340, 49-5790, 2-2191

TECHNICAL SPECIFICATIONS

• Voltage: 12 V
• Rotation: CCW (counter-clockwise)
• Starter type: PMDD
• Number of teeth: 16
• Gear outside diameter: 1.598 in (40.6 mm)
• Field case length: 4.25 in (108 mm)
• Mounting ear holes (1, 2, 3): 8.0 mm, unthreaded
• Mounting bolt spacing: approx. 58.5 mm
• Total starter length: 165 mm
• Weight: 2440 g
• Condition: 100% brand new
• Warranty: 2 years

FITMENT NOTES

• Designed for aluminium and plastic flywheel ring gears only
• Not suitable for steel flywheel ring gears
• Check mounting dimensions and tooth count against your original unit before purchase
