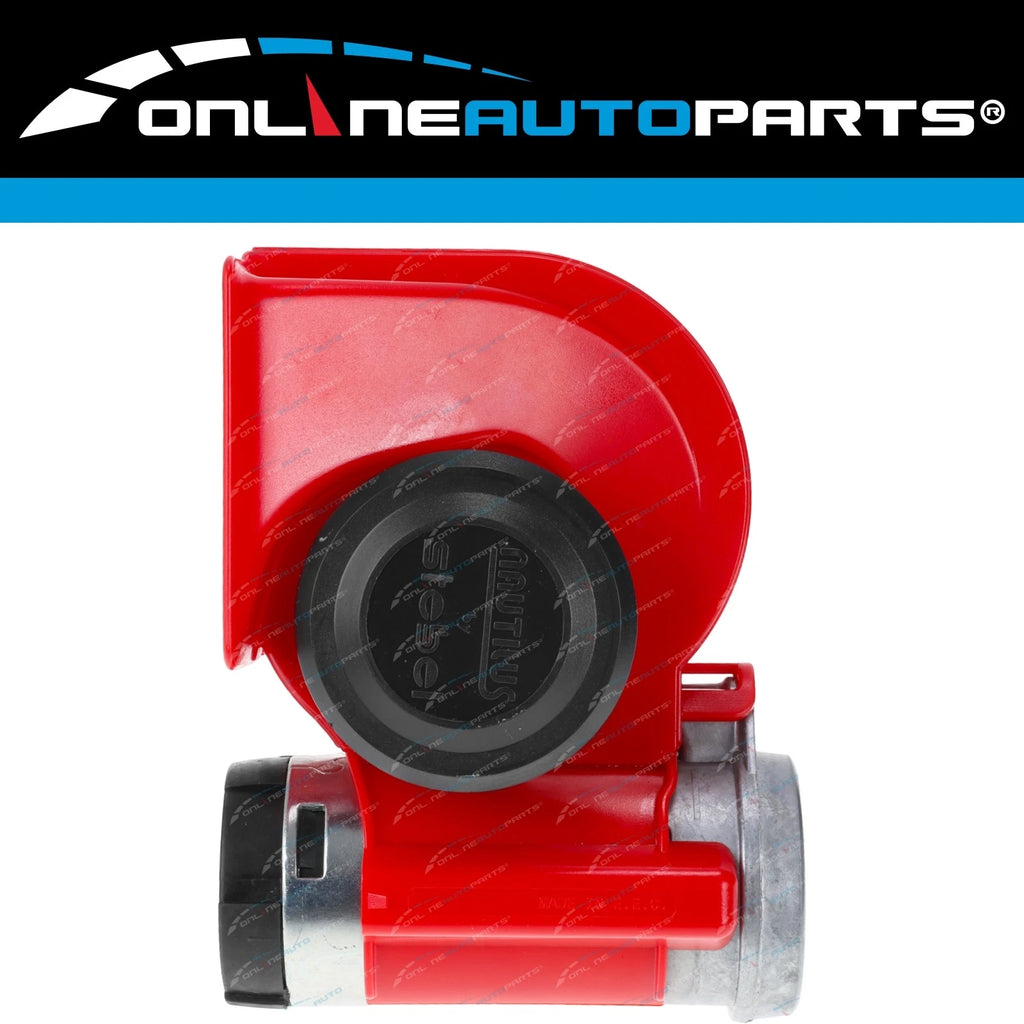

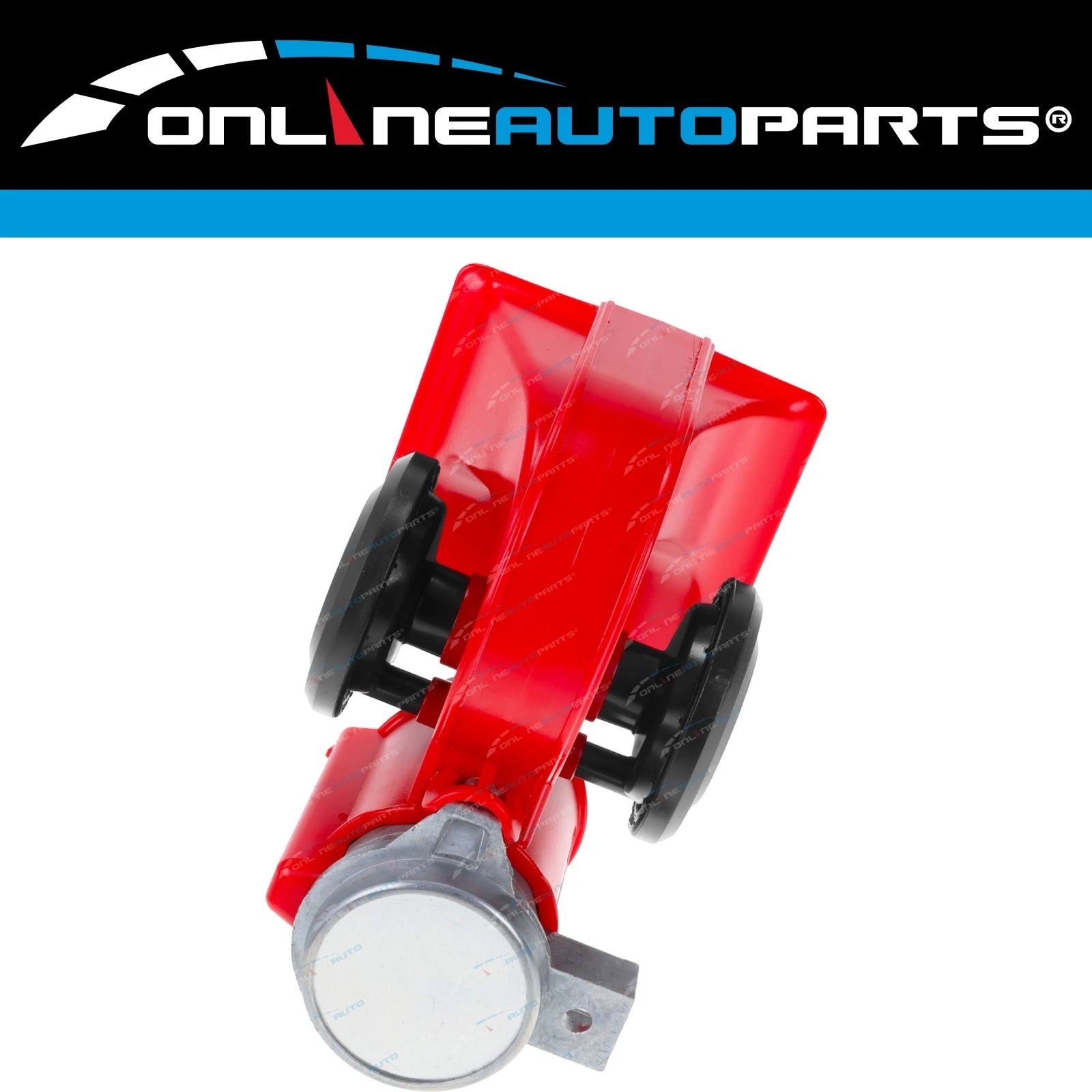

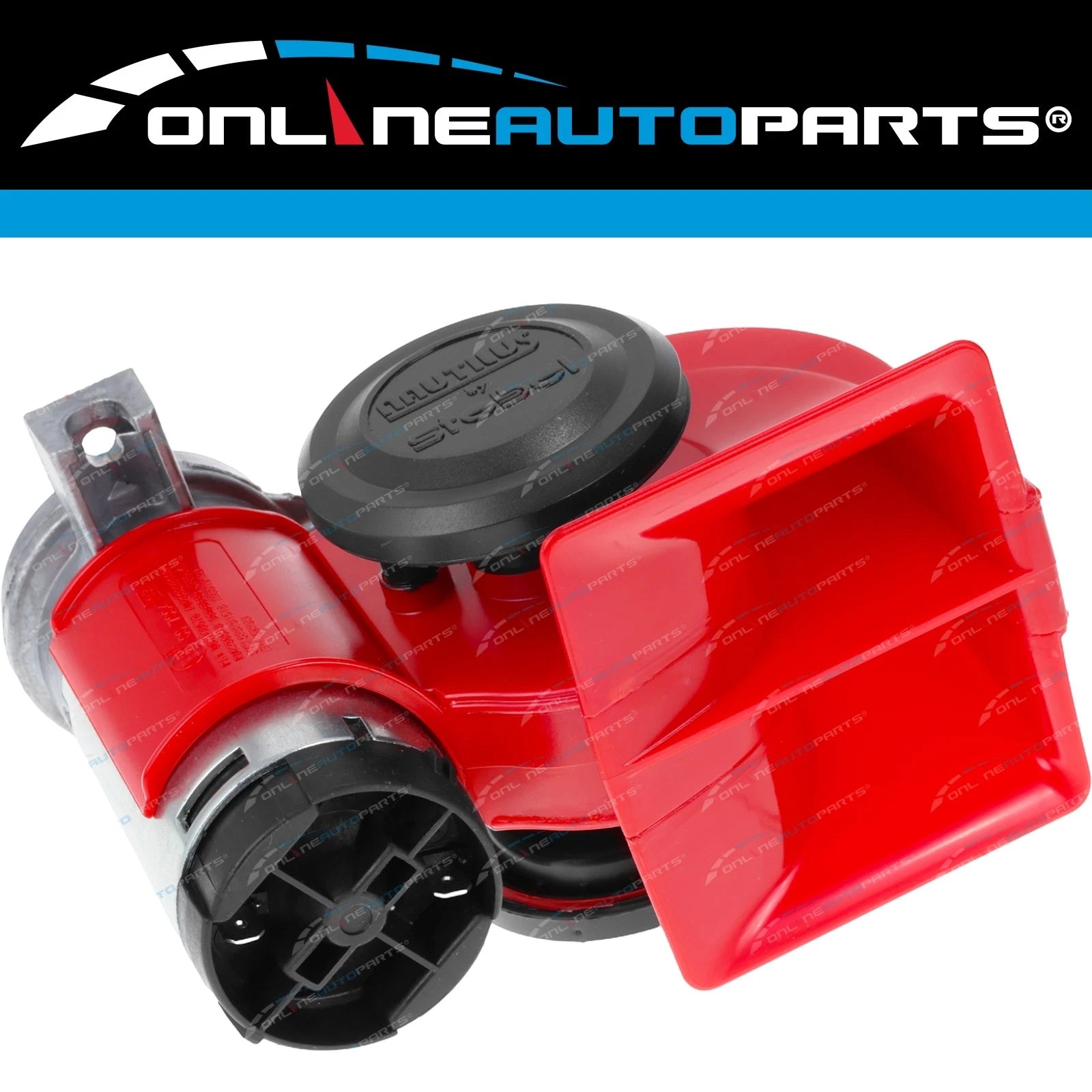

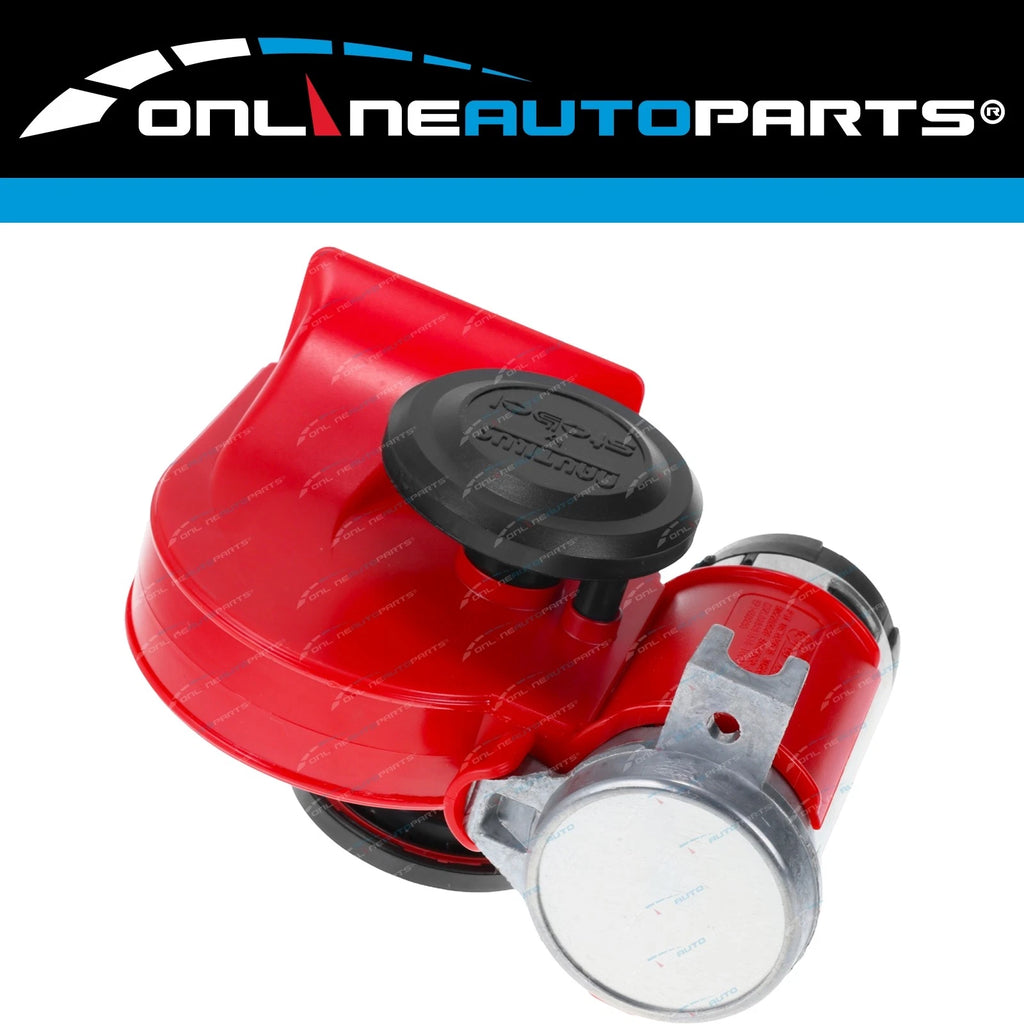

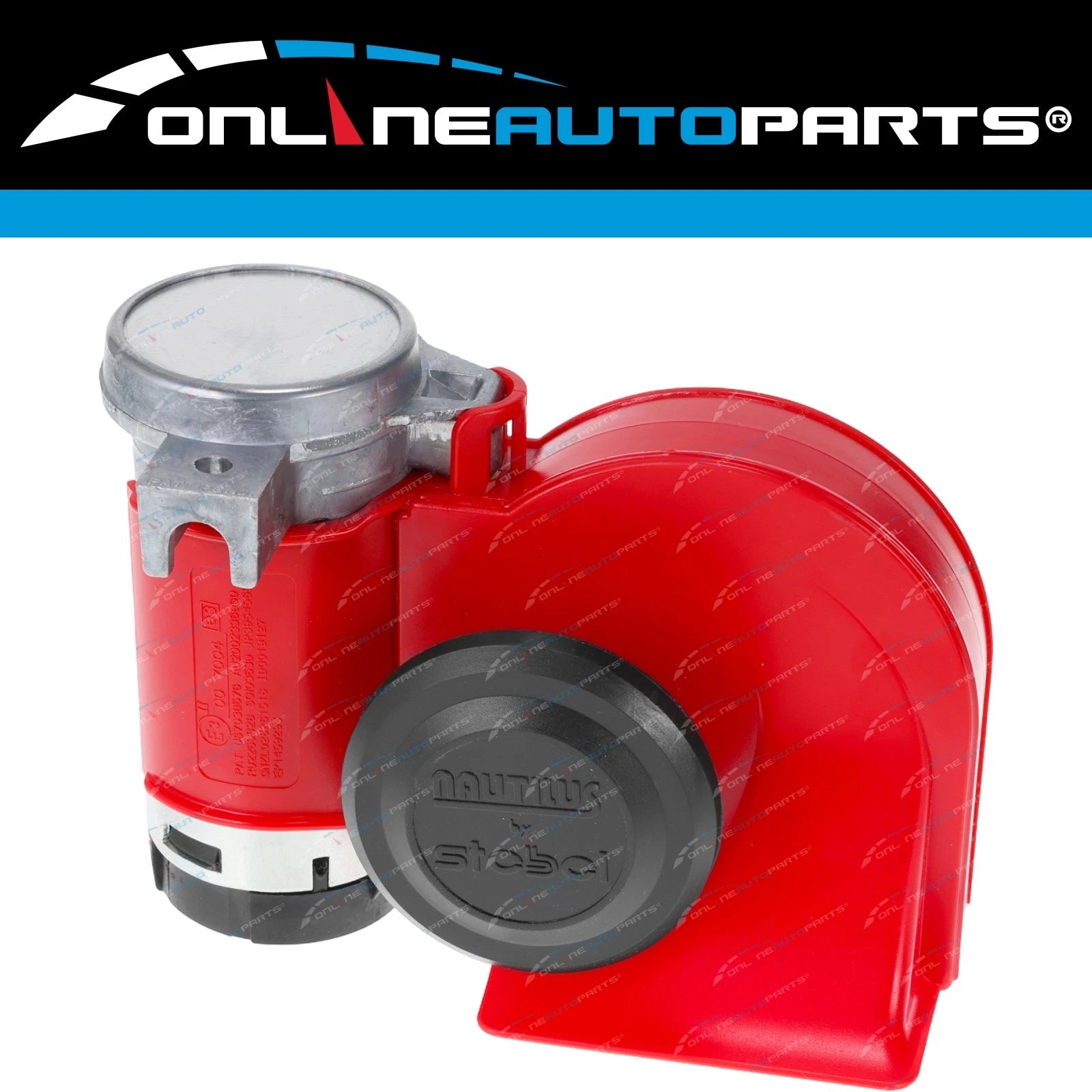

Stebel Nautilus Red 12V 139dB Electric Air Horn Kit with Relay

PRODUCT OVERVIEW

The Stebel Nautilus red electric air horn delivers a powerful 139dB output in a compact, one-piece design. Operating on 12V and supplied with a relay, it is suitable for cars, trucks, motorcycles and a wide range of 12V applications where maximum audible warning is required.

KEY FEATURES

• Powerful twin-tone electric air horn with up to 139dB sound level
• Compact one-piece design for easy mounting (single fixing point)

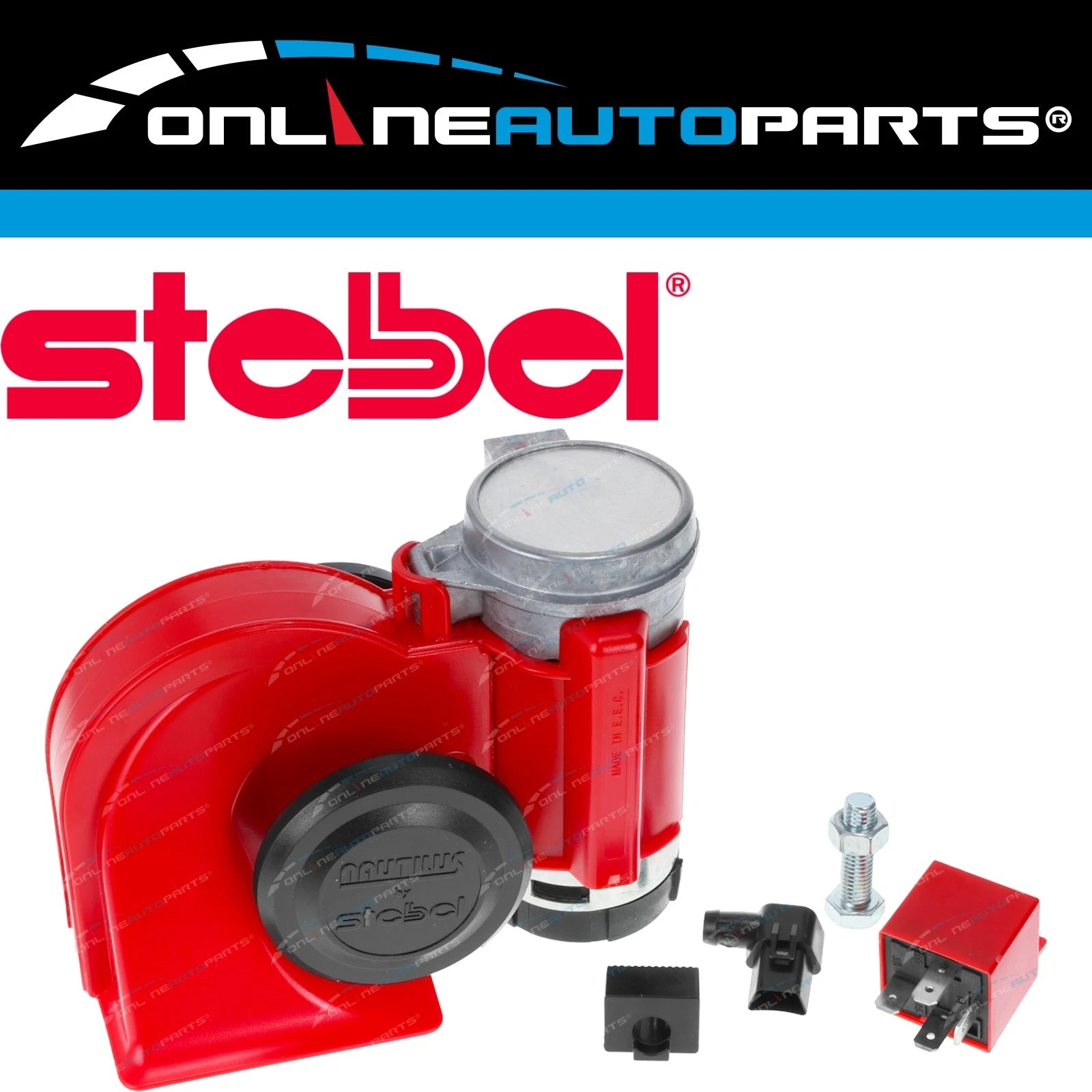

• Includes relay for correct electrical installation
• Red heavy-duty ABS plastic housing
• No external air tubes required
• Designed for cars, SUVs, 4x4s, buses, RVs, motorbikes, trucks and utes
• Engineered for high reliability with long service life
• 12-month warranty against manufacturing defects

TECHNOLOGY & PERFORMANCE

The Nautilus horn uses a precisely balanced internal air jet system for instant sound output and a distinct high and low twin tone. Its compact electric compressor and horn are integrated into a single unit, eliminating the need for separate air lines. The motor is designed to withstand more than 50,000 continuous operating cycles.

SPECIFICATIONS

• Type: Electric air horn, twin tone
• Voltage: 12V
• Current draw: 18A (approx.)
• Sound level at 10 cm: 139 dB
• Sound level at 2 m: 115 dB
• Main applications: Car, truck, motorcycle and other 12V vehicles
• Material: Heavy-duty ABS plastic
• Colour: Red
• Overall size (W x L x H): 150 x 112 x 95 mm
• Part references: 11690003, ZPN-03802

APPLICATION NOTES

• Suitable for most 12V electrical systems where mounting space and current capacity are available
• Recommended to be installed by a qualified person using the supplied relay
• Always check available space and mounting options before purchase and installation

INSTALLATION GUIDANCE

• Mount the horn securely using the single fixing point
• Wire through the supplied relay to a fused 12V supply as per wiring diagram (not included here)
• Ensure the air intake opening is kept free from obstruction and water ingress
