2" Suspension Lift Kit with 50mm Coil Springs & 35mm Shocks for Maverick DA

PRODUCT OVERVIEW

Heavy-duty 4x4 suspension lift kit providing approximately 2 inch (50mm) lift for coil spring models. Designed to increase ground clearance and maintain ride height under additional accessory and towing loads.

SUITABLE VEHICLES

Coil spring models with front and rear coils, including:

• Ford Maverick DA – Y60 long wheel base station wagon
• Nissan Patrol GQ Y60 – long wheel base wagon (coil spring)
• Nissan Patrol GU Y61 – long wheel base wagon (coil spring)

Always confirm vehicle suspension type and specifications before purchase and installation.

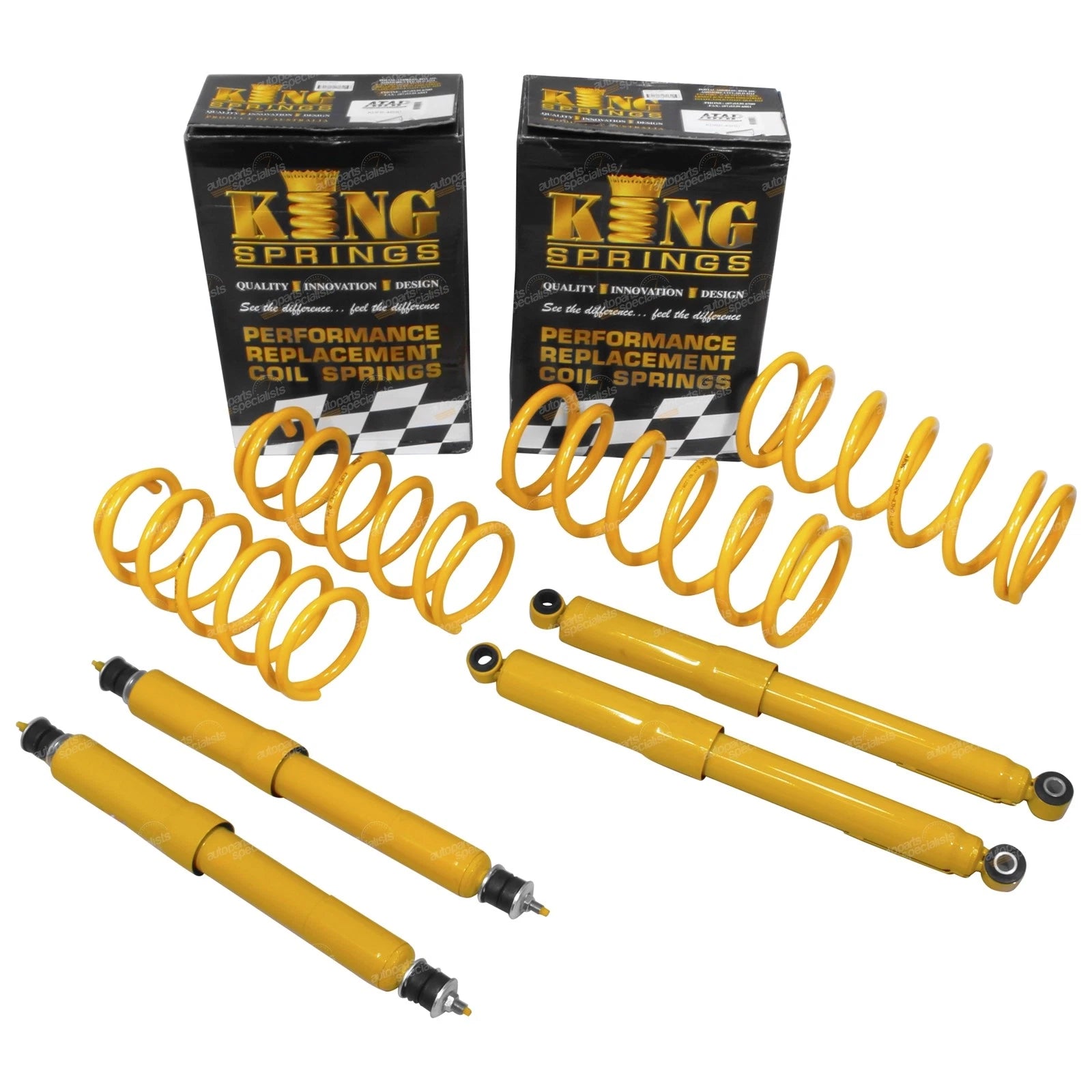

KIT CONTENTS

• Pair raised 50mm front coil springs – heavy-duty rated for up to additional 80kg in accessories.
• Pair raised 50mm rear coil springs – heavy-duty rated for up to additional 200kg in accessories.
• Australian-made coil springs by King Springs.

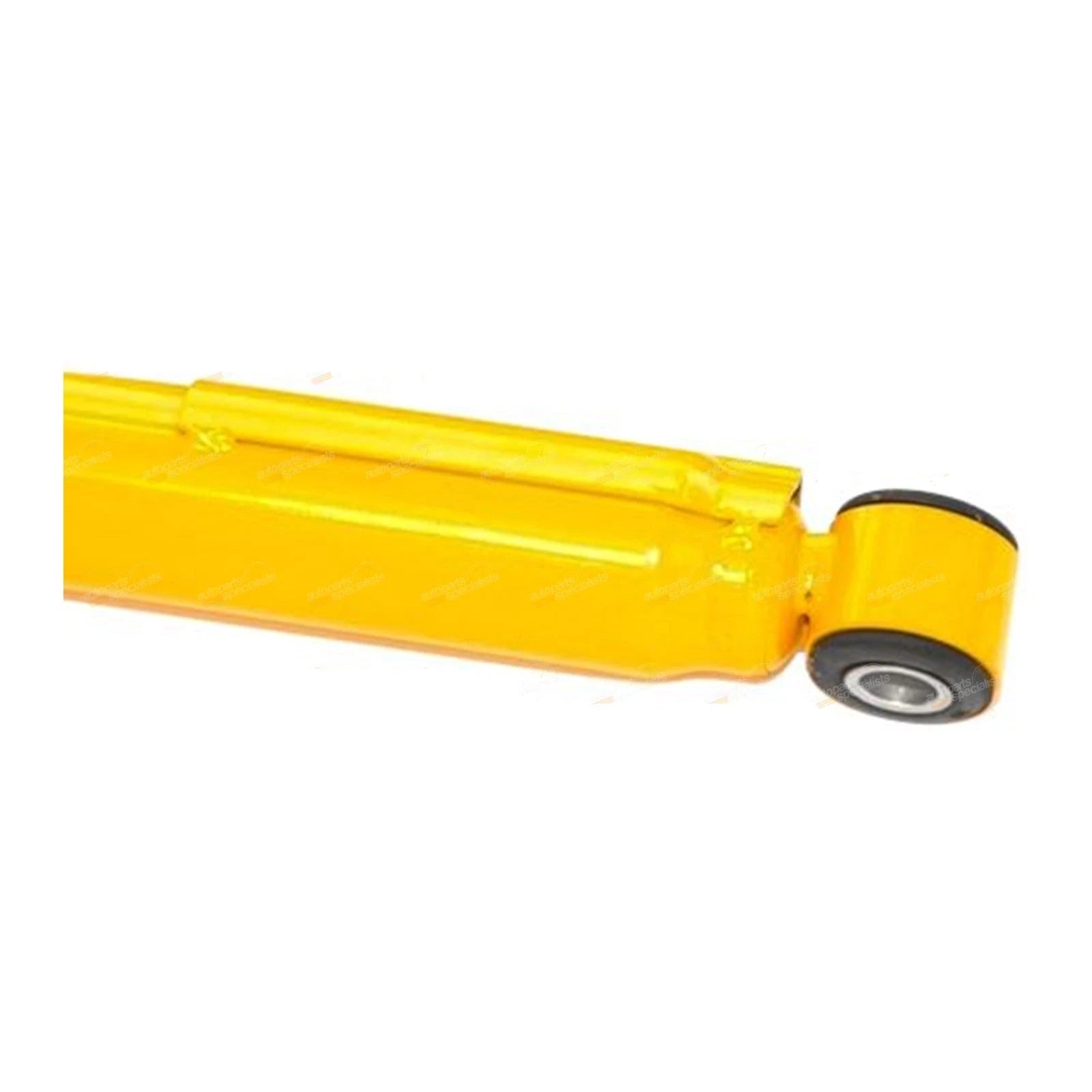

• Set of 4 extended long-travel 35mm gas shock absorbers (matched to raised height).
• 3 year / 60,000km warranty (whichever occurs first).

KEY FEATURES & BENEFITS

• Approx. 2 inch (50mm) lift for improved ground clearance on- and off-road.
• Heavy-duty rate maintains lift even with accessories such as dual batteries, steel bull bar, winch and driving lights.
• Rear springs engineered to support up to an additional 200kg of constant load while maintaining ride height.
• Extended long-travel shocks matched to raised coils for improved control and comfort.
• Suitable for vehicles frequently towing caravans, campers or trailers.

PART REFERENCE

• Reference / Part Number: ZPN-01825

INSTALLATION NOTES

• Professional installation by a licensed workshop or qualified technician is strongly recommended.
• Follow the relevant workshop manual, factory specifications and safety procedures.
• After installation, a full wheel alignment and suspension check is advised.
• Verify vehicle mass and existing accessories (bull bar, winch, dual battery, rear bar, tow setup, etc.) to ensure correct spring rate selection.

WARRANTY INFORMATION

• 3 year / 60,000km warranty on springs and shocks under normal use.
• Warranty may be void in cases of incorrect installation, misuse or operation outside manufacturer specifications.
• Warranty does not cover associated installation, removal or alignment costs.
