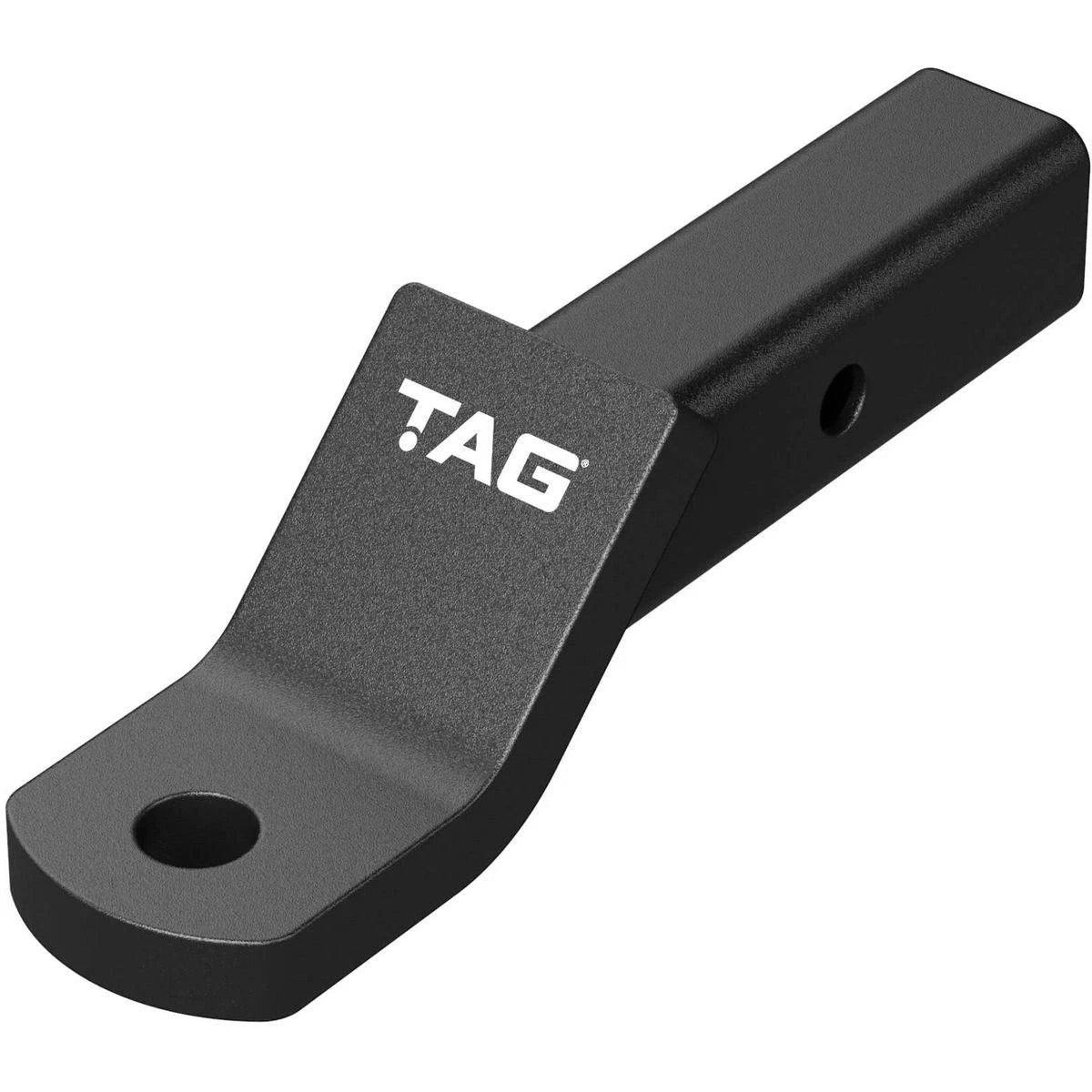

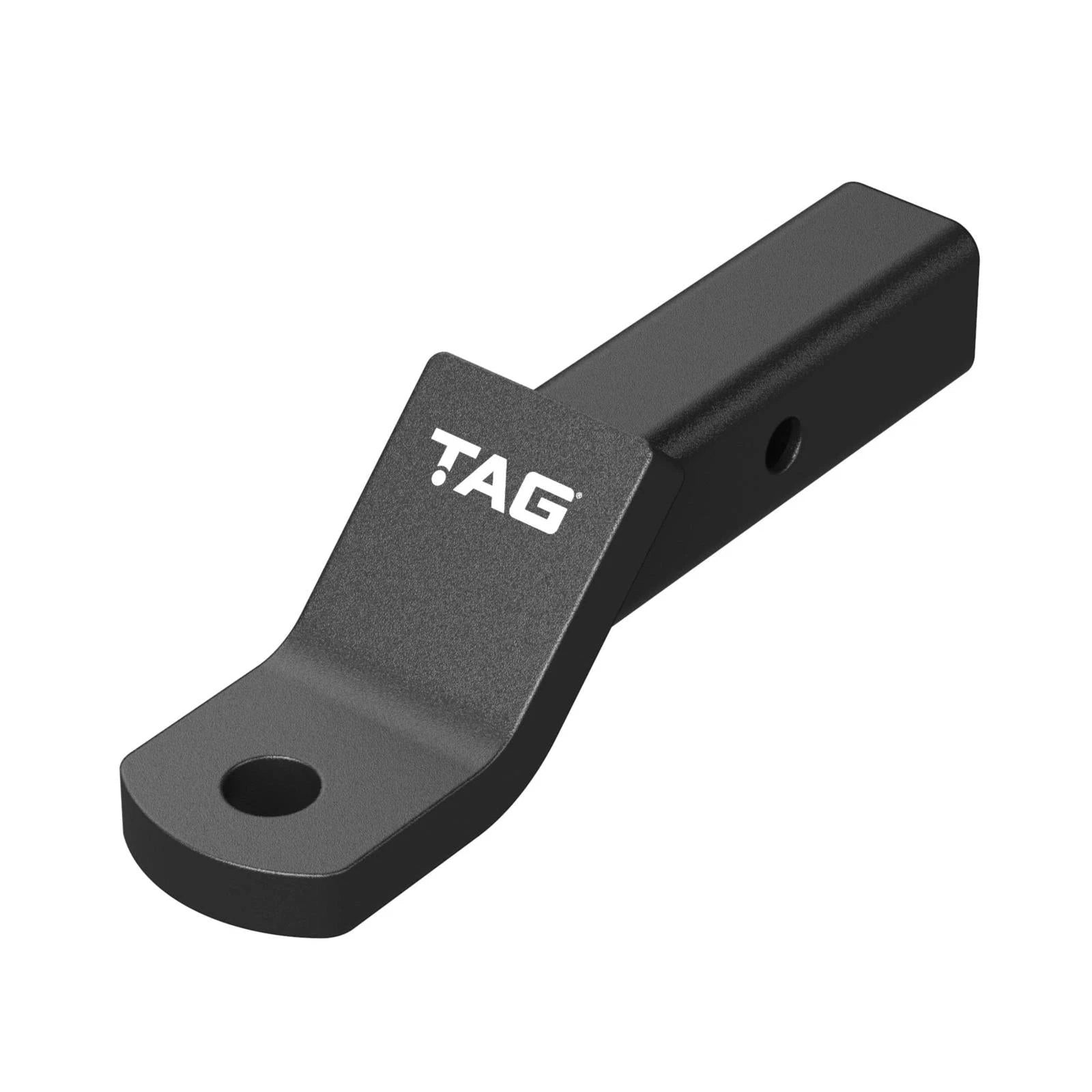

TAG Tow Ball Mount L4045S 183mm 135° Face for 50mm Square Hitch

Product Overview

The TAG L4045S Tow Ball Mount is a heavy-duty towing accessory for 50mm square hitch receivers. With an approximate 183mm length and a 135° face, it provides a robust and reliable connection point for your tow ball across a wide range of towing applications.

Key Features

• Designed for 50mm square hitch receivers
• Approx. 183mm overall length for versatile towing setups
• 135° face to optimise tow ball mounting angle
• Engineered for strength, durability and consistent towing performance
• Compatible with a wide range of TAG towing components

Quality & Compliance

TAG towing components are designed, manufactured and tested to stringent ADR62/01 requirements to support safe integration with modern vehicles. Each tow ball mount is built to withstand demanding towing conditions and provide long-term reliability when paired with a correctly rated towbar and tow ball.

Application Notes

• Universal tow ball mount for 50mm square hitch receivers
• No specific vehicle fitment is provided for this part
• Always check hitch receiver size, towbar rating and tow ball rating before use

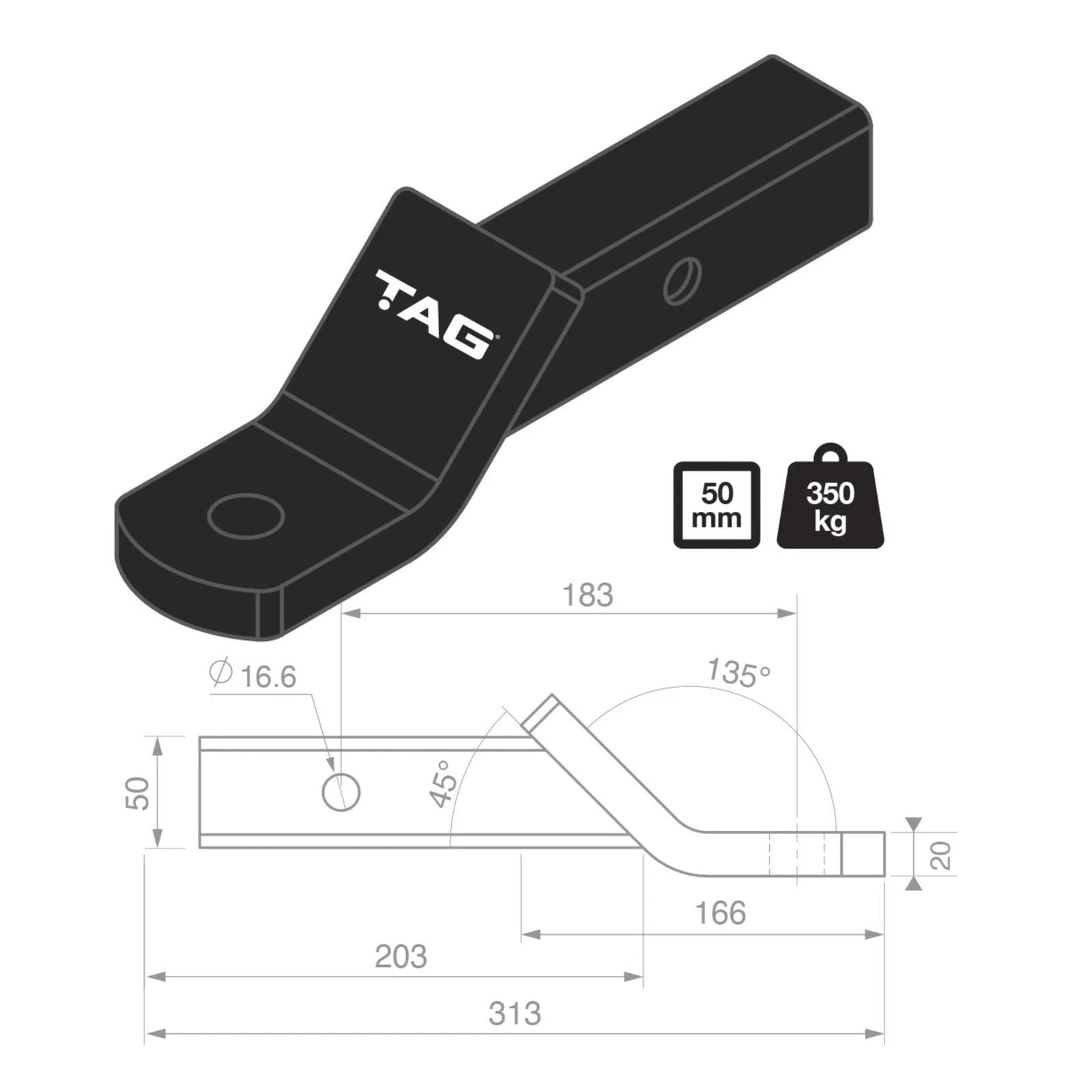

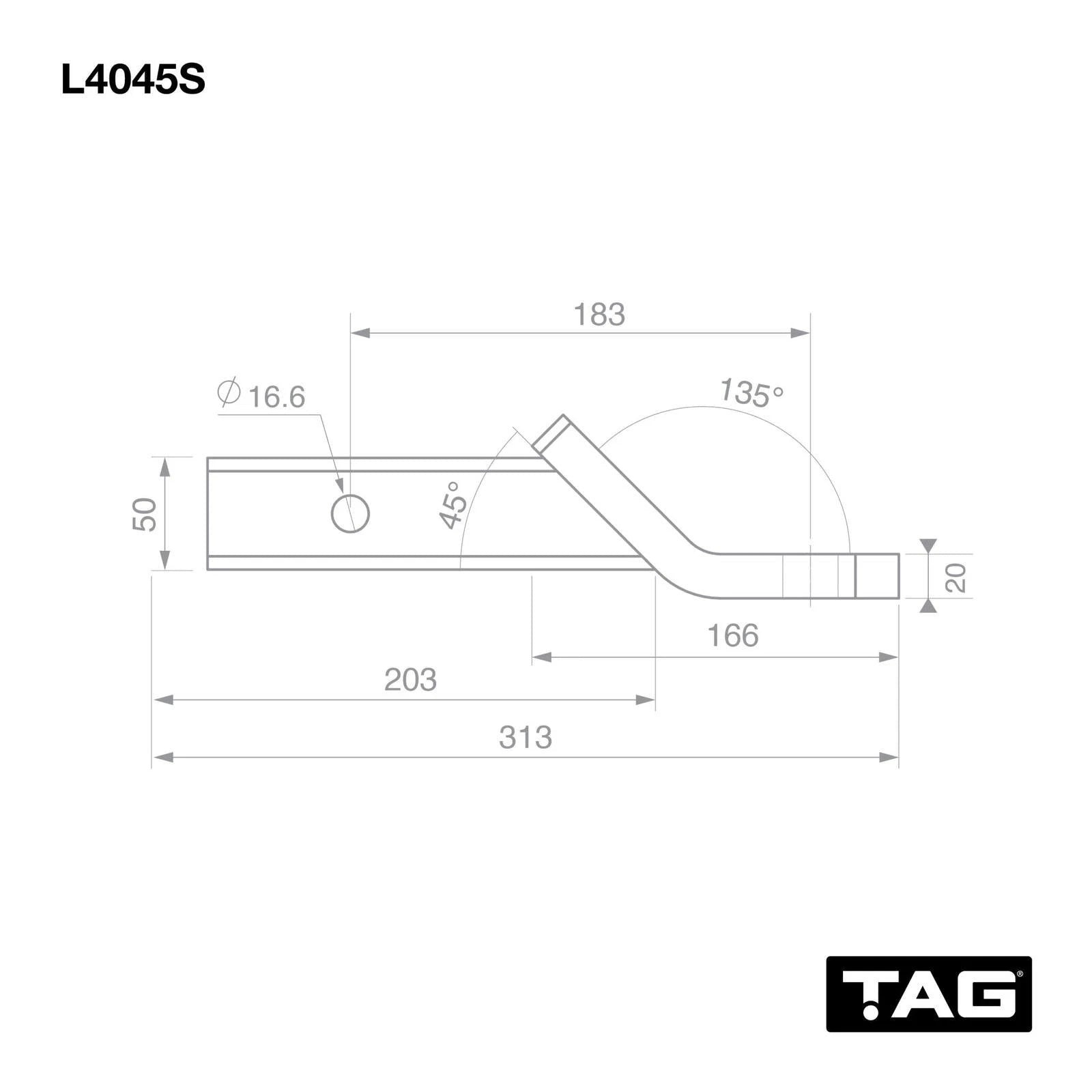

Part Details

• Part number: L4045S
• Type: Tow ball mount
• Hitch size: 50mm square
• Length: 183mm (approx.)
• Face angle: 135°

Safety Information

• Ensure all towing components are correctly matched and rated for the intended load
• Install and use in accordance with towbar and vehicle manufacturer instructions
• Inspect the tow ball mount regularly for wear, damage or corrosion and replace if required
