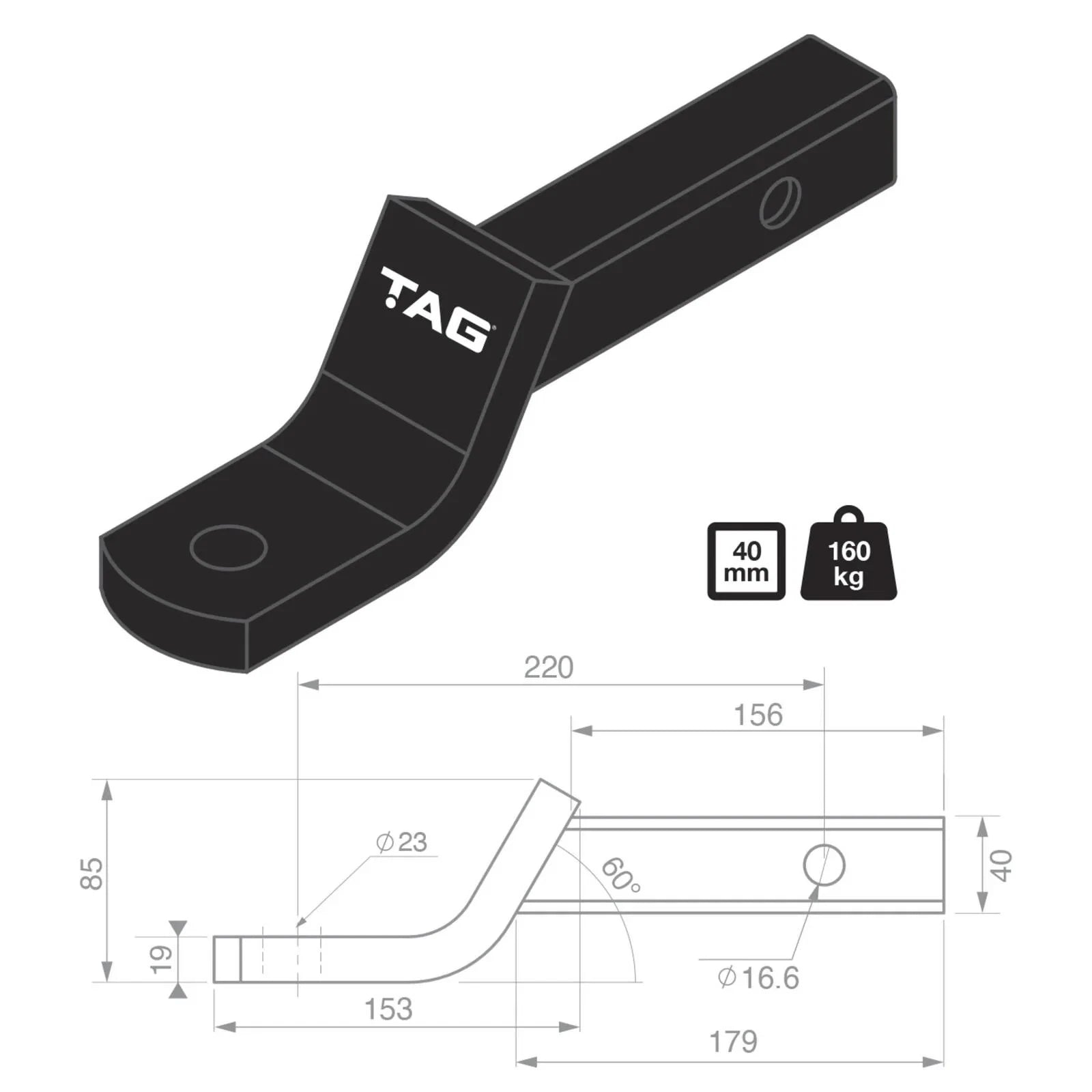

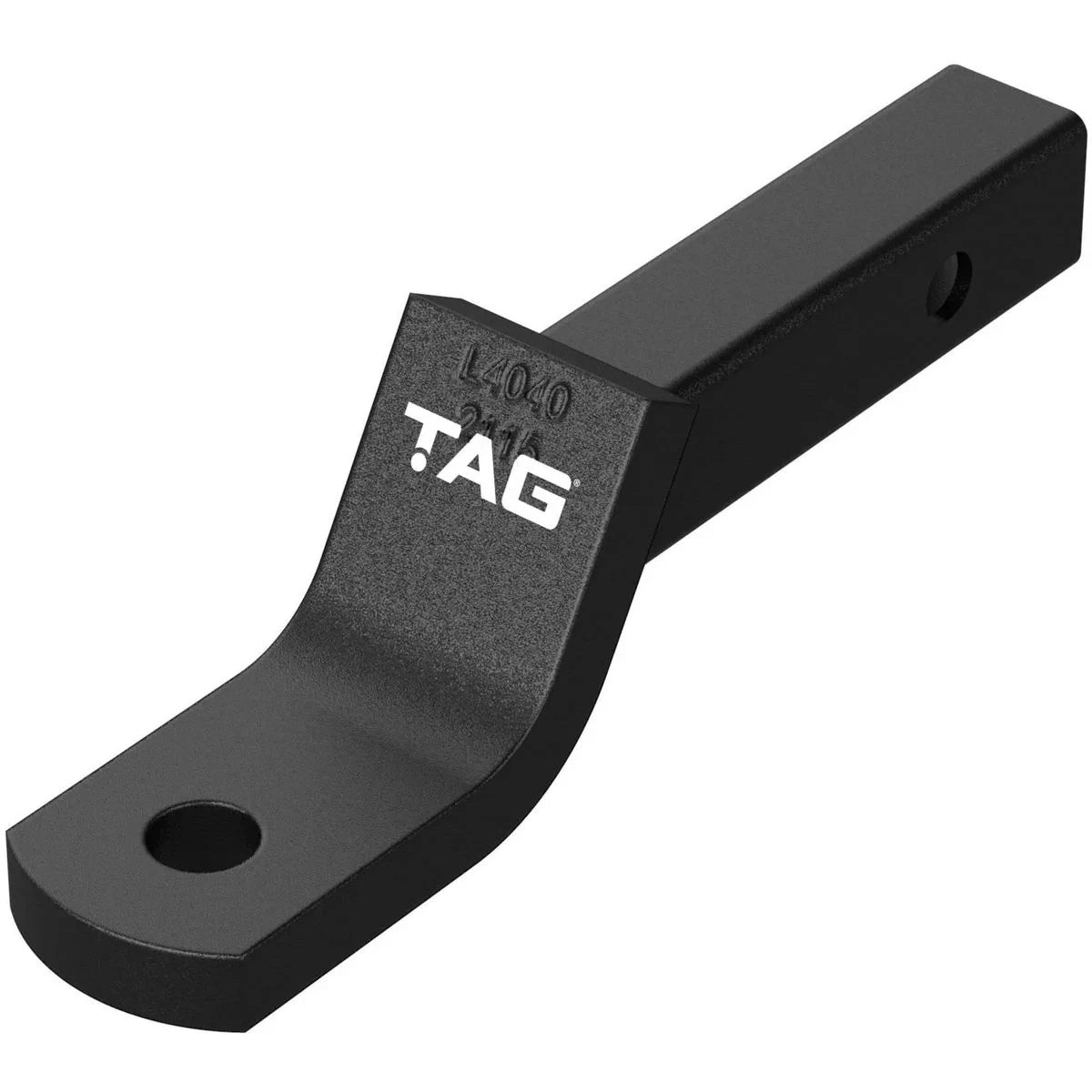

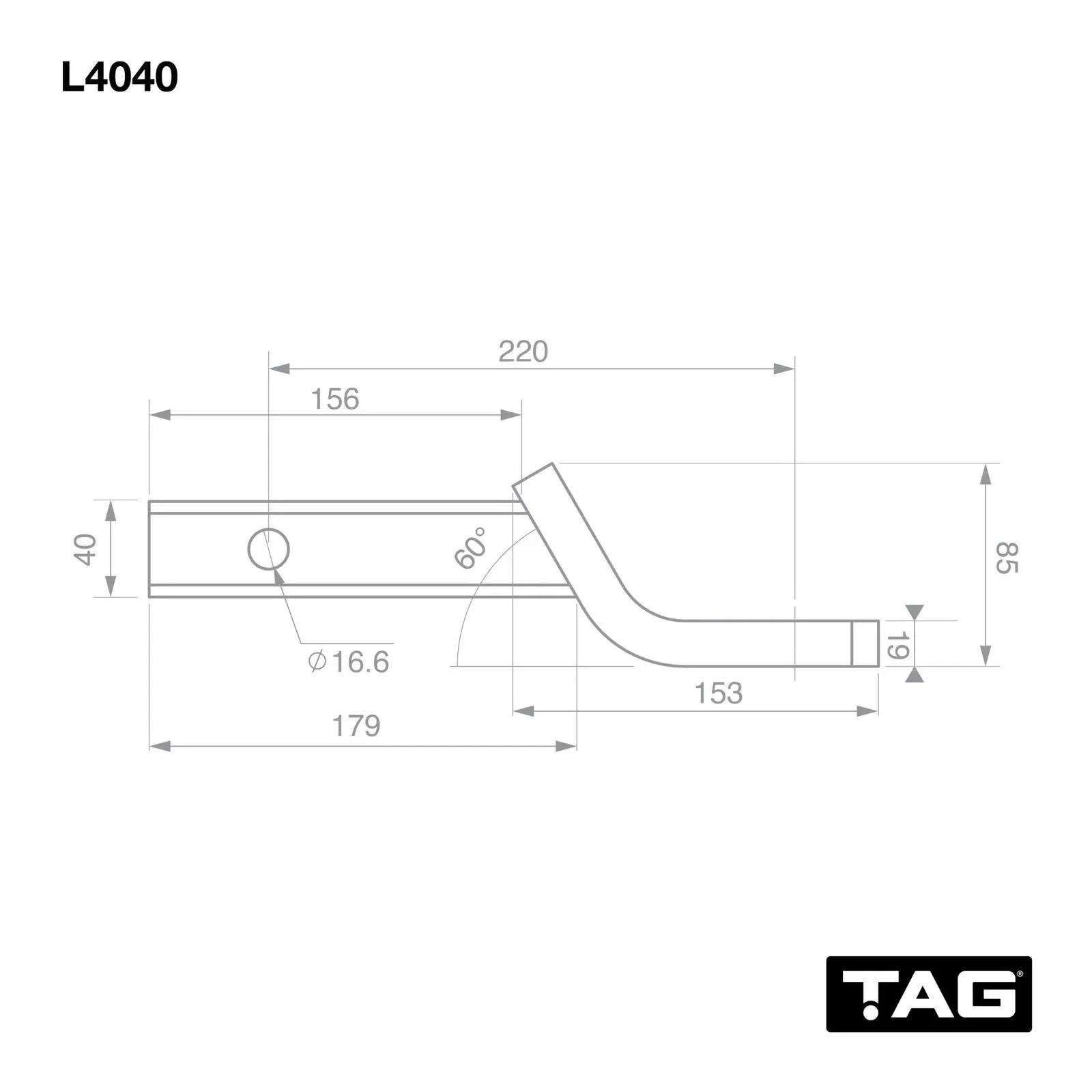

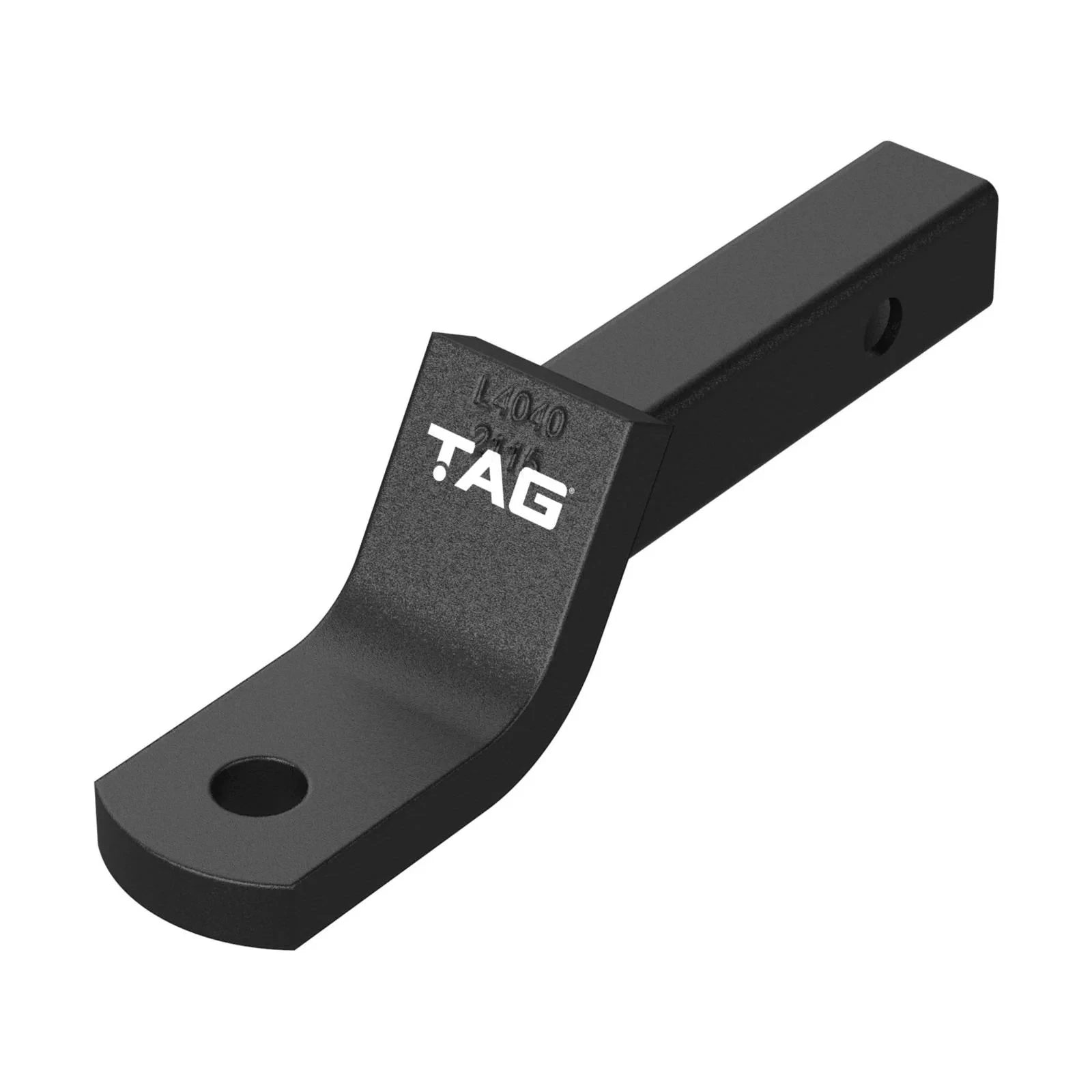

TAG Tow Ball Mount 220mm Long 135° Face 40mm Square Hitch L4040

PRODUCT OVERVIEW

The TAG tow ball mount L4040 is designed for secure and reliable towing setups. Featuring a 220mm overall length, a 135° face, and a 40mm square hitch, it is suitable for a wide range of towing applications where a 40mm receiver is used.

KEY FEATURES

• Part Number: L4040
• 220mm tow ball mount length
• 135 degree face for versatile coupling angles
• 40mm square hitch to suit standard 40mm receivers
• Engineered for strength, durability and consistent towing performance

APPLICATION NOTES

No specific vehicle fitment is provided for this tow ball mount. Ensure your towbar is designed for a 40mm square hitch receiver and that the mount length and angle are suitable for your trailer height and coupling requirements.

SAFETY & COMPLIANCE

• Designed for use with compatible TAG towbars and towing components
• Use only with tow balls and towing equipment rated to your required towing capacity
• Always follow vehicle and towbar manufacturer towing limits and guidelines

INSTALLATION

Slide the tow ball mount into the 40mm square hitch receiver, align the pin holes, and secure with a suitable hitch pin and clip (not included unless specified). Fit a compatible tow ball to the mount using the correct torque settings. Check all fasteners and components regularly for wear or damage.
