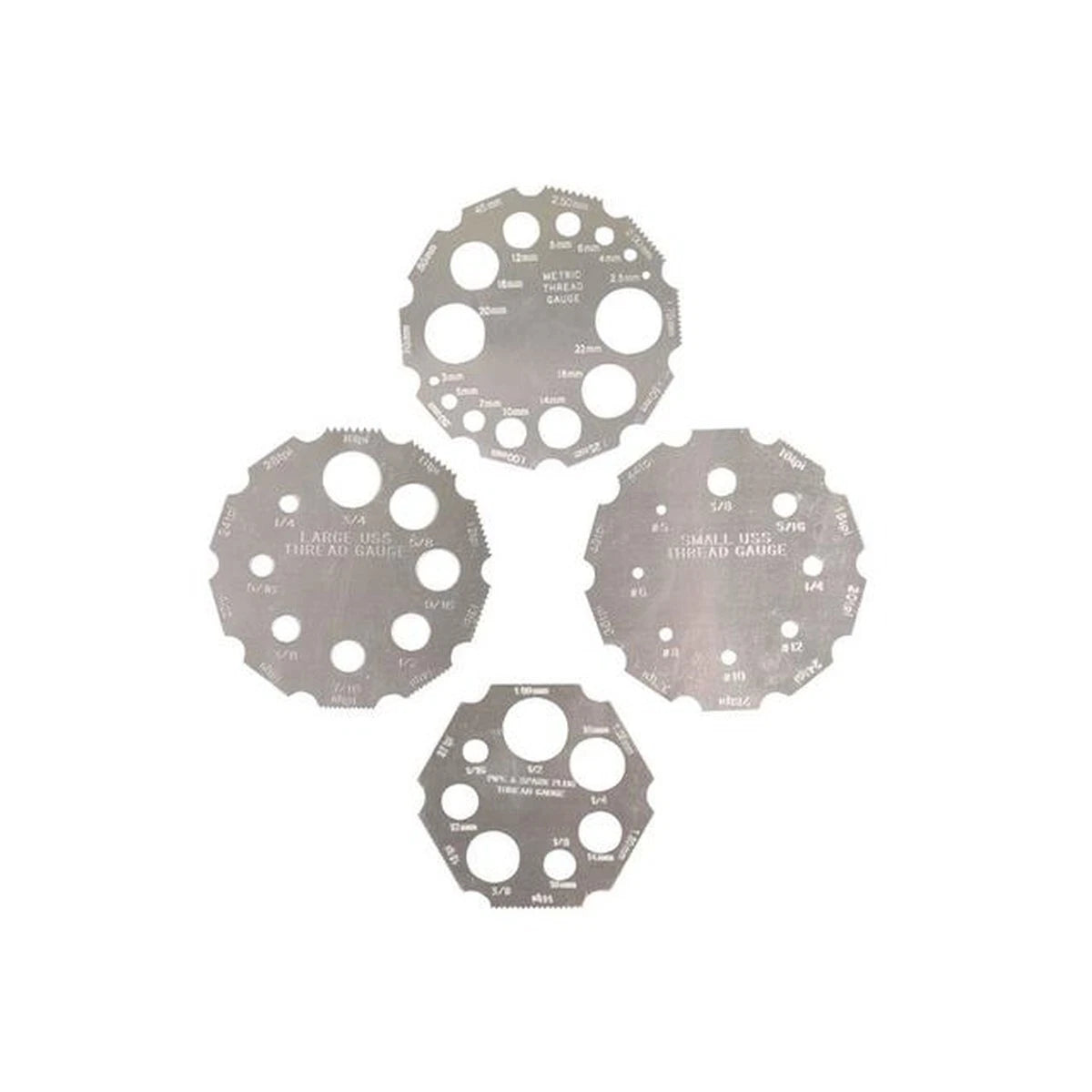

Toledo Universal Thread Gauge Set 4pc – Metric, SAE, UNF, UNC, BSP 301064

PRODUCT OVERVIEW

The Toledo Universal Thread Gauge Set 301064 is designed to quickly and accurately identify thread diameter and pitch across a wide range of thread standards, including metric, SAE, UNF, UNC and BSP. Ideal for automotive, mechanical and general workshop applications.

KEY FEATURES

• Easily identifies thread diameter and pitch for metric, SAE, UNF, UNC and BSP styles.
• Holes in gauges allow fast, repeatable identification of component sizes.
• 4 piece set suitable for bolts, fittings, pipe and spark plug threads.
• Manufactured from soft aluminium alloy to reduce risk of thread damage.

THREAD RANGE

• Metric: Thread size 2.5–22 mm, thread pitch 0.45–2.5 mm.
• USS (Small): Thread size 1/4–3/8 in, thread pitch 16–44 TPI.
• USS (Large): Thread size 1/16–1/2 in and 10–18 mm; thread pitch 10–28 TPI, 1.00, 1.25, 1.50 mm, and 14, 18, 27 TPI.

APPLICATIONS

• Identification of automotive bolts and fasteners.
• Checking thread sizes on fittings and pipe connections.
• Verifying spark plug thread sizes.
• General workshop and maintenance use.
