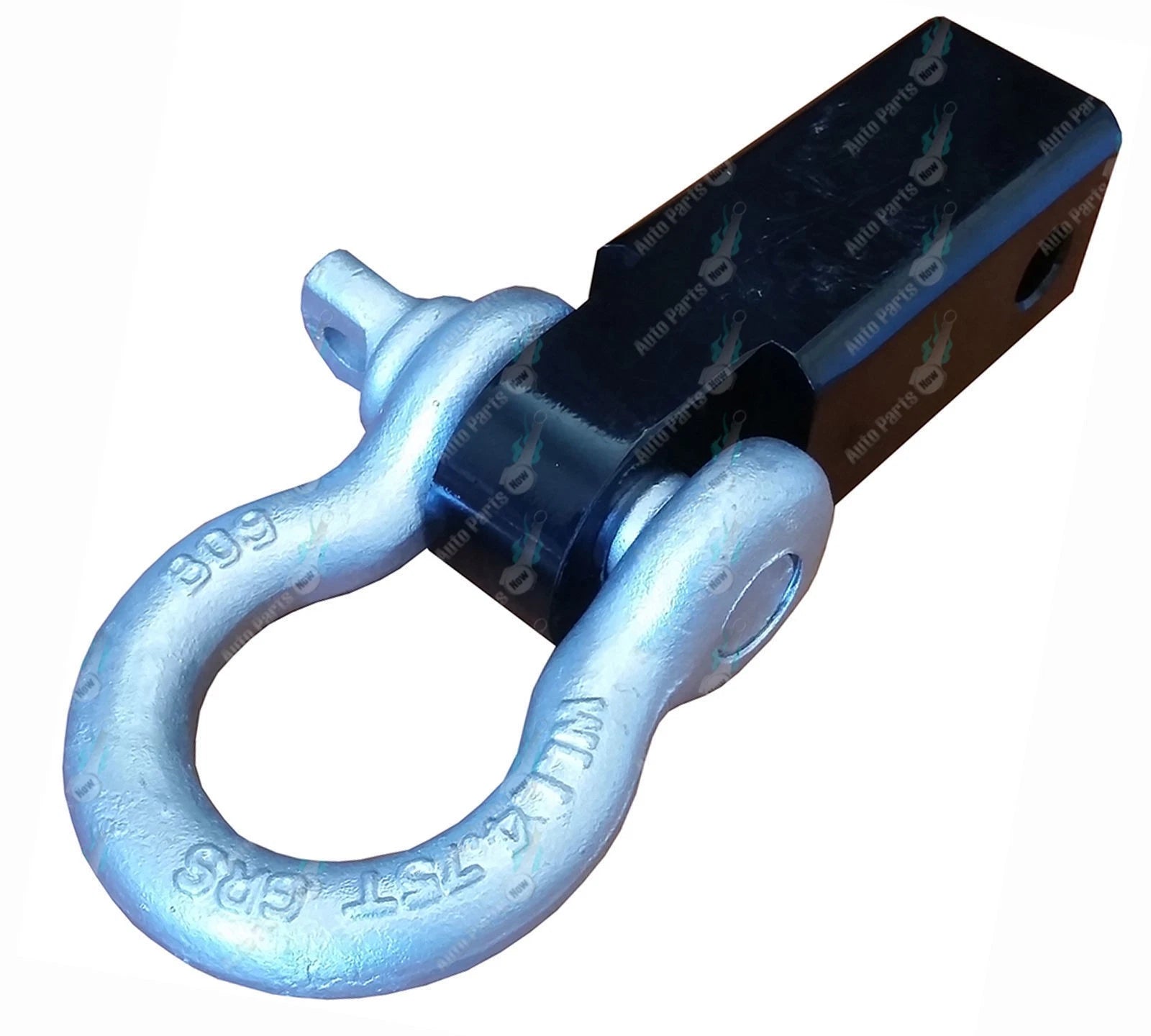

Towbar Recovery Hitch 4.75t Rated with 20mm Bow Shackle, 50mm

PRODUCT OVERVIEW

Convert a standard 50mm towbar into a rated recovery point with this heavy-duty towbar recovery hitch and bow shackle kit. Designed for off-road recovery use, it installs in place of the towbar tongue and secures using your existing hitch pin.

KEY FEATURES

• Rated to 4.75 tonnes for off-road recovery applications
• Manufactured from high strength forged steel for durability
• Tested to Australian Standard AS/NZS 2741.2002
• Includes 20mm bow shackle for secure recovery attachment
• Provides a dedicated towbar-mounted recovery point

DIMENSIONS & SPECIFICATIONS

• Working load limit: 4.75t
• Receiver size: 50mm x 50mm square fitment
• Hitch overall length: 150mm
• Pin hole diameter: 16mm
• Length from back of hitch to centre of pin hole: 20mm
• Bow shackle pin diameter: 20mm
• Bow shackle inside diameter: 50mm

INSTALLATION & USE

• Remove the existing towbar tongue from the receiver
• Insert the recovery hitch into the 50mm receiver
• Secure using the standard hitch pin and clip (not included)
• Attach the recovery strap or rope to the supplied bow shackle
• For off-road recovery use only; always follow safe recovery practices

COMPATIBILITY NOTICE

Suitable for vehicles equipped with a 50mm x 50mm towbar receiver. No specific vehicle fitment list is provided; confirm receiver size and suitability for your setup before purchase.
