Toyota 2JZ TIG Welded Aluminium Intake Manifold with Fuel Rail and 90 mm Throttle Body, Black

Product Overview

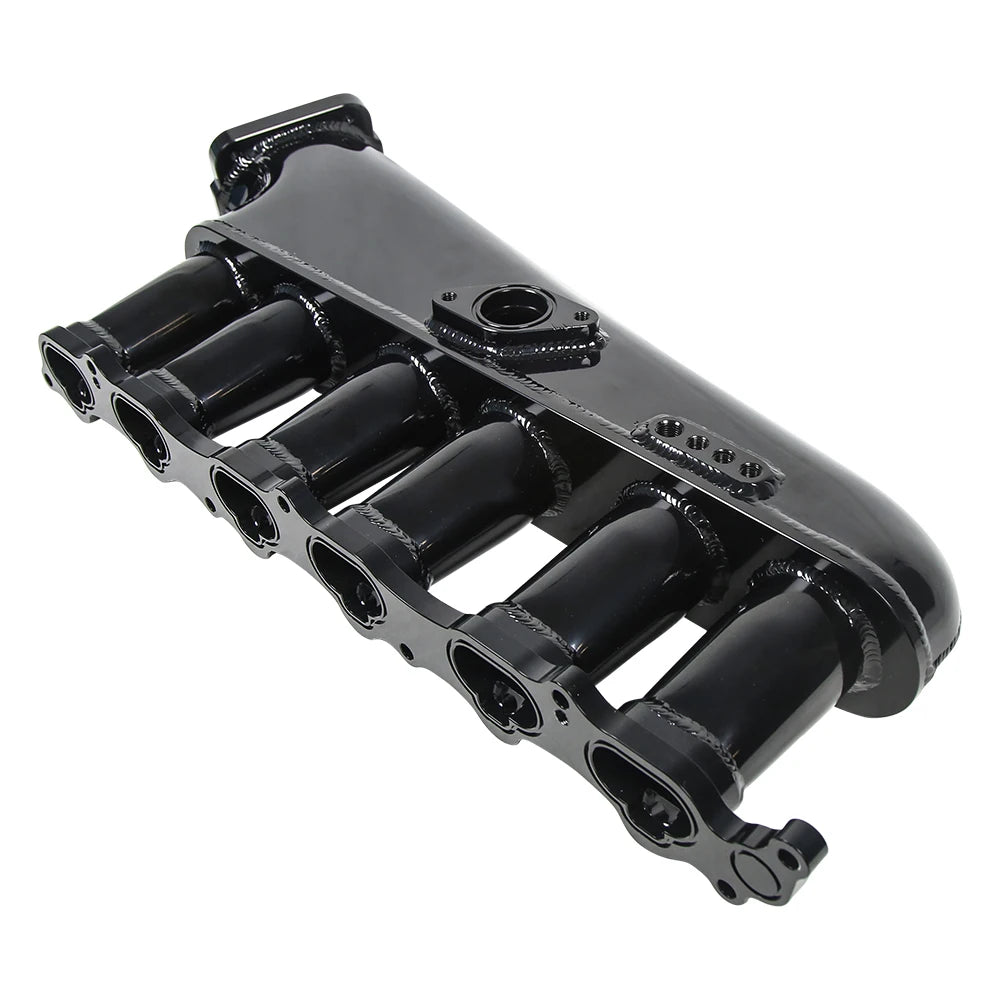

This TIG-welded aluminium intake manifold is listed for the Toyota 2JZ and comes with a fuel rail and 90 mm throttle body according to the title, which also references 14 mm injectors. The supplier lists a mount as included. Aimed at serious 2JZ builds, it offers a fabricated plenum design suited to big turbo and high-flow fuel system upgrades.

Key Features and Benefits

• TIG-welded aluminium construction
• Fuel rail included, per the title
• 90 mm throttle body, per the title
• Designed around 14 mm injectors, per the title
• Mount listed as included

Vehicle Compatibility

The title names the 2JZ-GTE, while the specifications list the 2JZ-GE. These engine variants have different heads and injector arrangements, so fitment is unclear. This information is supplier-stated and has not been independently verified, so please confirm your engine and setup before ordering.

Product Specifications

• Product type: intake manifold with fuel rail and throttle body
• Material: aluminium, TIG welded
• Throttle body: 90 mm (per title)
• Injector size: 14 mm (per title)
• Engine: 2JZ (GTE per title / GE per specs)
• Package size: 76 x 41 x 21 cm
• Gross weight: approx. 8.2 kg

Installation and Usage

This is an advanced modification that typically needs custom fuel plumbing, throttle linkage or electronic throttle adaptation, vacuum lines and an ECU tune. It should be installed by an experienced performance workshop. Use new gaskets, check injector fitment and pressure test both the intake and fuel systems before starting the engine.

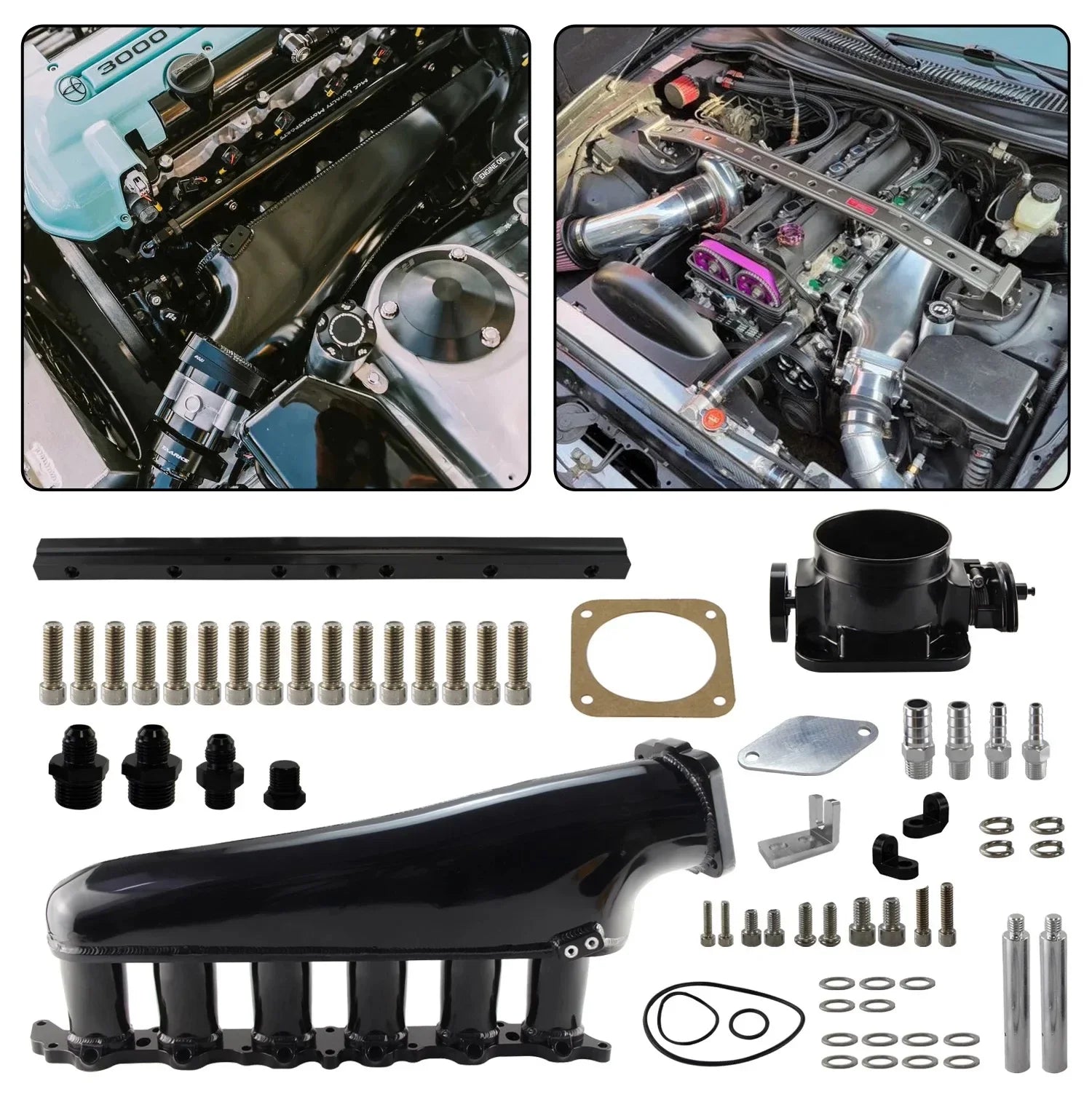

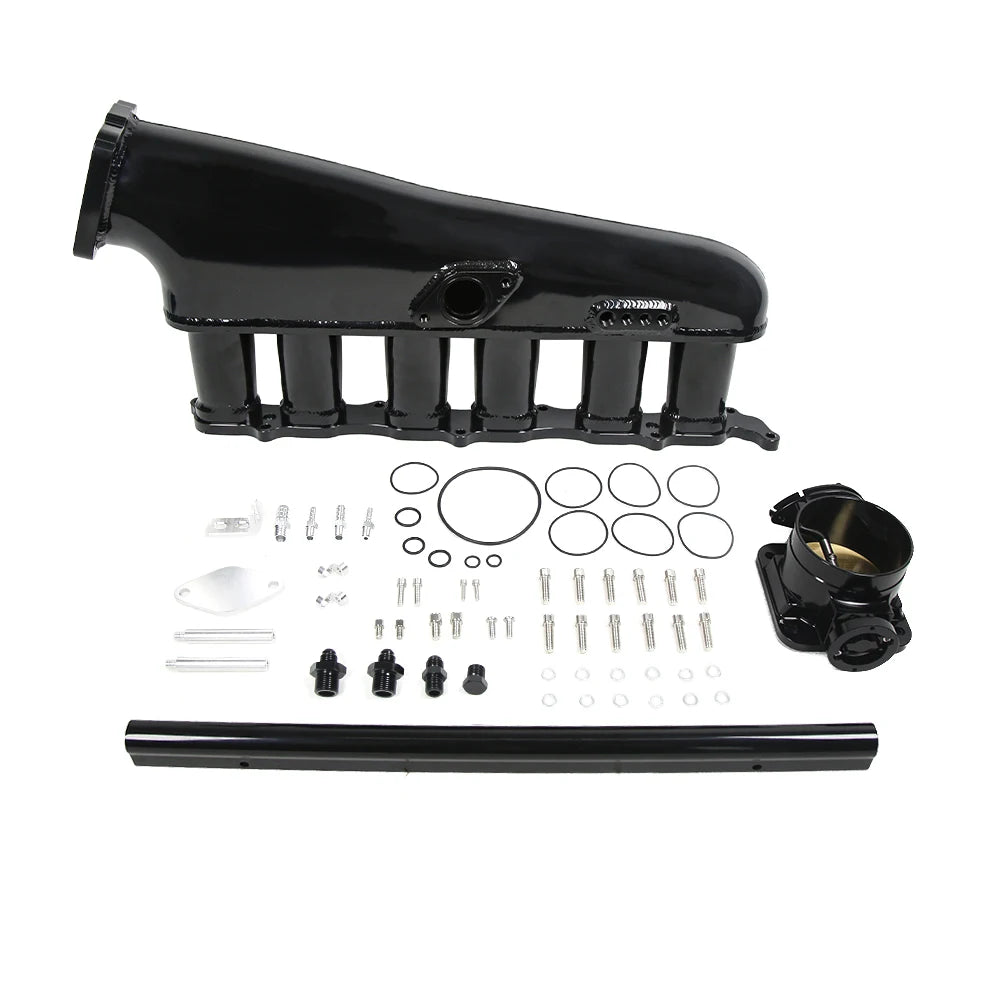

Package Contents

The listing implies a manifold, fuel rail and throttle body as pictured, and a mount is listed. Injectors, gaskets and fittings have not been confirmed by the supplier.

Important Fitment Notice

Please contact us with your engine code and build details before ordering. Engine modifications on road vehicles may require certification in New Zealand. Images are for reference only, and finish may vary from the photos.
