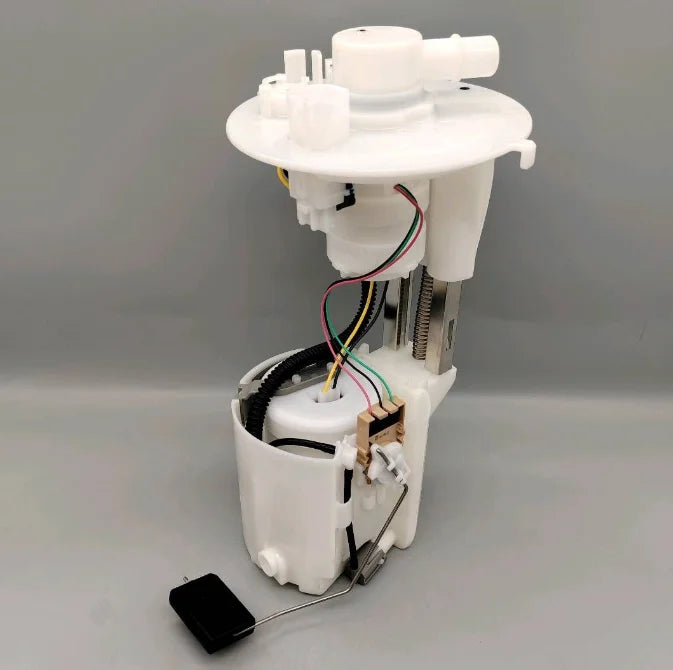

Toyota Corolla / Camry / Yaris / RAV4 / Crown Fuel Pump Assembly 77020-02C30

Product overview

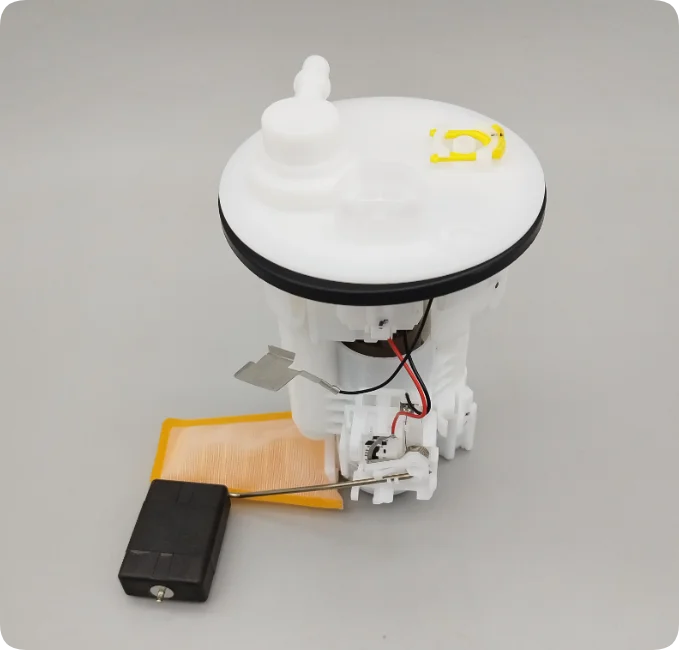

A new fuel pump assembly referenced to Toyota OE number 77020-02C30 (7702002C30). The listing shows a wide spread of Toyota models for this part, from small hatchbacks to large SUVs. It is intended as a replacement where the existing pump is no longer supplying adequate fuel pressure.

The in-tank assembly draws fuel from the tank and supplies it to the engine at a consistent pressure. A worn pump can cause slow starting, a whining noise, hesitation when accelerating, surging or the engine cutting out at idle.

Vehicle compatibility

The listing names the following Toyota models, without years, chassis codes or engines:

• Yaris, Vios, Corolla, Levin GT and Allion
• Camry, Avalon, Crown, Mark X and Century
• RAV4, Highlander and Sequoia

A single fuel pump assembly is unlikely to fit every generation of every model listed, so this list should be treated as a guide only. Fitment is unverified, and New Zealand's large number of Japanese-import Toyotas makes careful checking especially important.

Key features

• Assembly-format replacement
• Referenced to Toyota number 7702002C30
• New condition part for repair and replacement
• Useful stock item for Toyota-focused workshops
• Helps restore dependable fuel supply for everyday driving

Technical specifications

Installation requirements

Fuel system repairs are best carried out by a qualified mechanic. Relieve pressure in the fuel lines, disconnect the battery and keep flames and sparks away. Replace the tank gasket where necessary, secure all connections and check for leaks before returning the vehicle to the road.

Testing the fuse, relay and wiring before replacement can rule out simpler faults that produce similar symptoms.

Fitment checks before ordering

Match the Toyota number on your current part to 77020-02C30 and confirm by VIN or chassis number before ordering. We strongly recommend contacting us first if you are unsure.

Keeping the old pump for side-by-side comparison is also helpful.

Package inclusions

1 x fuel pump assembly. Contents as pictured/listed; gaskets and fittings are not included unless stated.

Shipping information

Shipped from China to customers in Australia and New Zealand. Freight is calculated at checkout based on your delivery address, and actual freight is confirmed at the time of order.

Special Order Item

This product is a special-order item sourced specifically for your vehicle. Please allow an estimated lead time of 3-4 weeks for sourcing and delivery. Lead times are estimates and may vary depending on supplier availability, order processing, and international shipping. We recommend confirming availability before placing your order.
