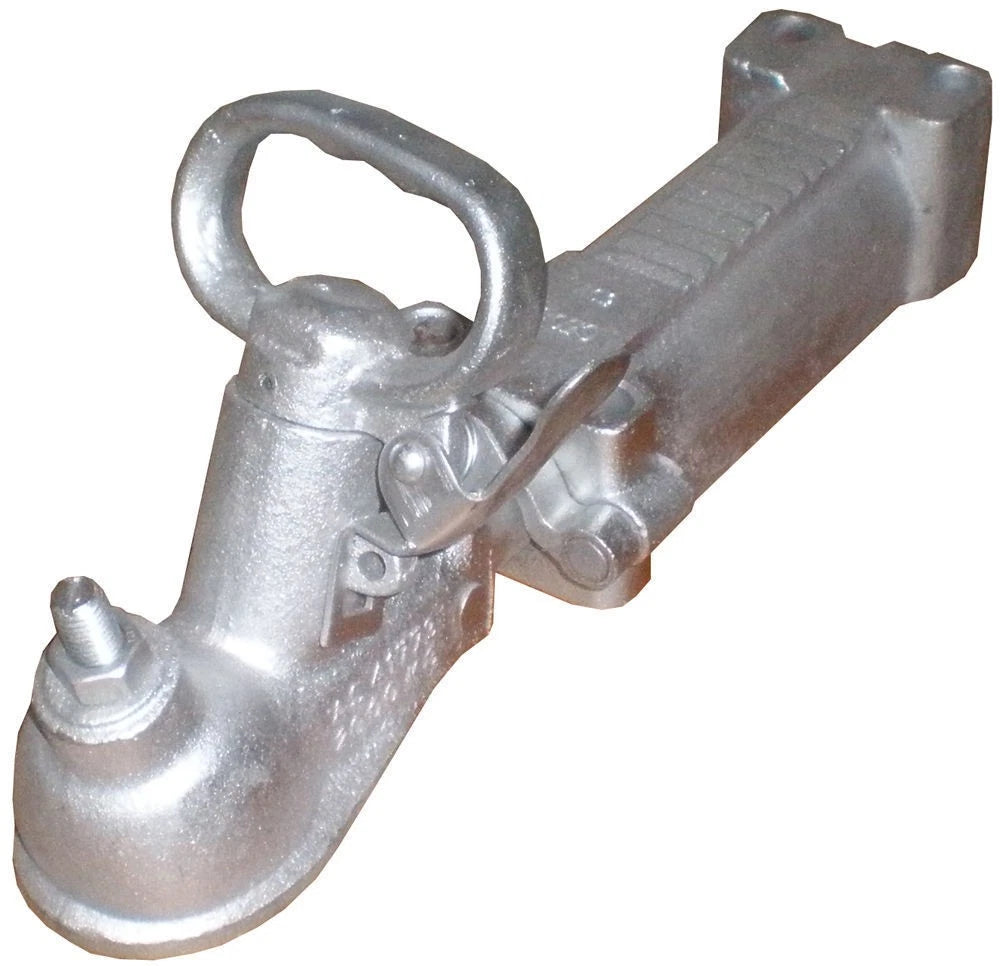

Zinc-coated 50mm trailer override coupling rated 2000kg, AS4177.3 compliant
Trailer Override Coupling 50mm 2000kg Zinc Coated AS4177.3
Click to zoom in
Load image into Gallery viewer, Zinc-coated 50mm trailer override coupling rated 2000kg, AS4177.3 compliant
Load image into Gallery viewer, Trailer Override Coupling 50mm 2000kg Zinc Coated AS4177.3

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

Trailer Override Coupling 50mm 2000kg Zinc Coated AS4177.3

2 8
112453290146
In stock
Auto Parts
A$147.25
PRODUCT OVERVIEW This quick-release trailer override coupling is designed for braked trailers up to 2000kg using...
A$147.25
customers are viewing this product
Trailer Override Coupling 50mm 2000kg Zinc Coated AS4177.3
Description

PRODUCT OVERVIEW

This quick-release trailer override coupling is designed for braked trailers up to 2000kg using a standard 50mm tow ball. It features a durable zinc-coated finish for corrosion resistance and complies with Australian Standard AS4177.3 for safe towing performance.

KEY FEATURES

  • Quick-release override coupling for braked trailers
  • Compatible with standard 50mm tow balls
  • Rated to 2000kg towing capacity
  • 4-bolt mounting pattern for secure attachment
  • Lockable design for added security (padlock not included)
  • Zinc-coated finish for enhanced corrosion resistance
  • Complies with Australian Standard AS4177.3

DIMENSIONS

  • Bolt hole spacing (side to side, centre to centre): 57mm
  • Bolt hole spacing (lengthways, centre to centre): 185mm
  • Bolt hole diameter: 14mm

APPLICATION NOTES

  • Suitable for use with compatible braked trailer drawbars using a 4-bolt mounting pattern
  • Ensure the tow vehicle is fitted with a compliant 50mm tow ball
  • Installation must follow relevant standards and safe towing practices
