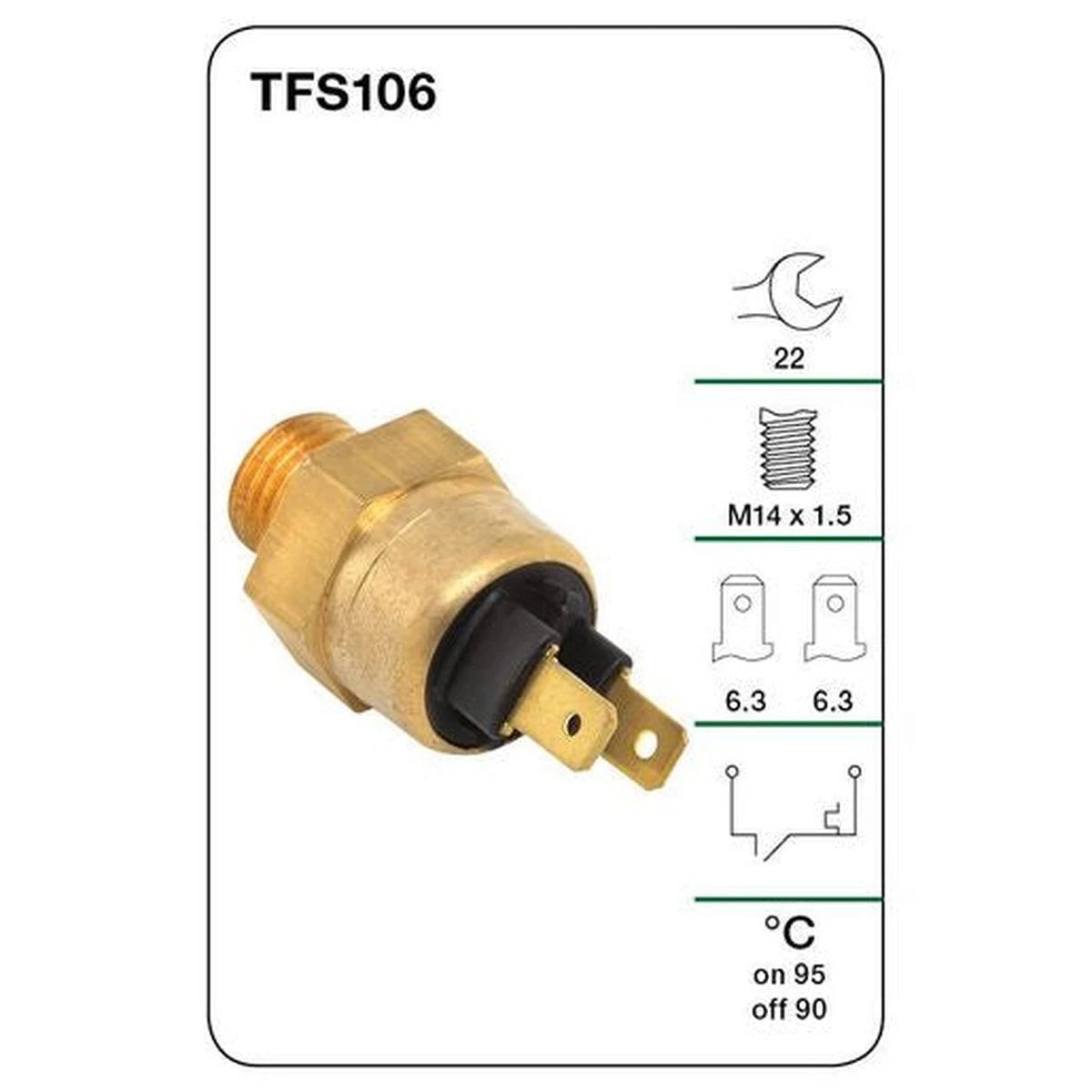

Tridon TFS106 Thermo Fan Switch M14 x 1.5 Normally Open

PRODUCT OVERVIEW

The Tridon TFS106 thermo fan switch is designed to control electric radiator or condenser fans by activating at a preset temperature range. It provides reliable temperature-based switching to help maintain optimal engine operating temperatures.

KEY FEATURES

• Part Number: TFS106
• Thread size: M14 x 1.5
• Hex size (spanner): 22 mm
• Terminals: 2
• Circuit type: Normally open
• Operating temperature range: 95°C switching on, 90°C switching off (approx.)

FUNCTION & APPLICATION

• Controls operation of electric cooling fans based on coolant temperature.
• Normally open circuit closes at the specified temperature to power the fan.
• Suitable for use where an M14 x 1.5 threaded thermo switch with 2 terminals is required.

INSTALLATION NOTES

• Confirm thread size and seat type match the original switch before installation.
• Ensure correct wiring to the 2 terminals according to the vehicle’s wiring diagram.
• Always install with a suitable sealing washer or gasket where required.
• Check for leaks and correct fan operation after installation.

IMPORTANT

• Use the vehicle compatibility or fitment guide where available before purchase.
• Professional installation is recommended if you are unsure of correct fitment or wiring.
