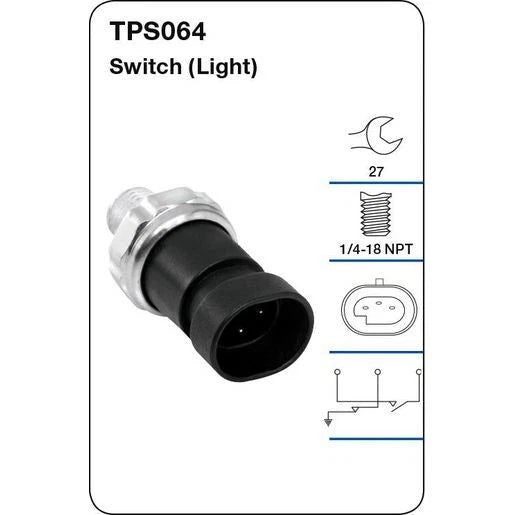

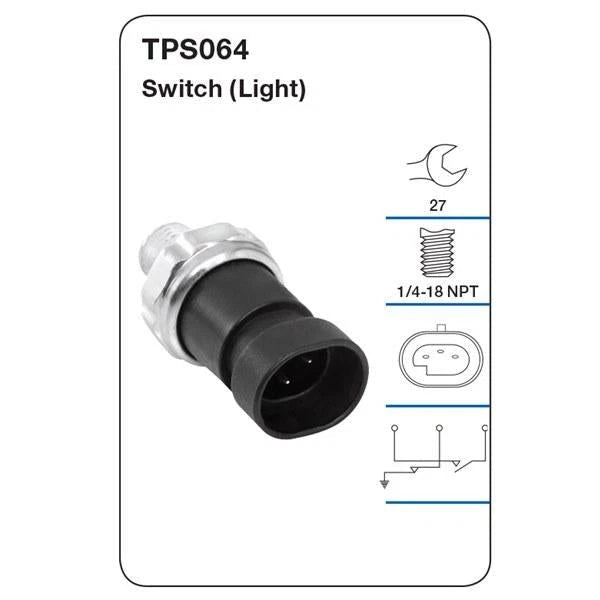

Tridon TPS064 Dual Circuit Oil Pressure Switch with Warning Light

PRODUCT OVERVIEW

The Tridon TPS064 dual circuit oil pressure switch is a direct replacement for worn or faulty engine oil pressure switches. It monitors engine lubrication system integrity and triggers a warning light or gauge signal when oil pressure falls outside the specified range.

KEY FEATURES

• Quality replacement oil pressure switch for engine monitoring systems
• Dual circuit design for normally open and normally closed operation
• Designed to meet or exceed OEM performance standards
• Provides a reliable signal to dashboard warning light or gauge
• Suitable for applications where Tridon TPS064 is specified

TECHNICAL SPECIFICATIONS

• Part Number: TPS064
• Thread Size: 1/4 - 18 NPT
• Spanner Size: 27 mm
• Circuit Type: Dual – Normally Open / Normally Closed
• Application: Engine oil pressure switch for warning light or gauge signal

FUNCTION

The TPS064 oil pressure switch continuously senses engine oil pressure. When pressure moves outside the calibrated range, it changes circuit state and sends an electrical signal to the vehicle's warning light or oil pressure gauge, helping protect the engine from lubrication-related damage.
