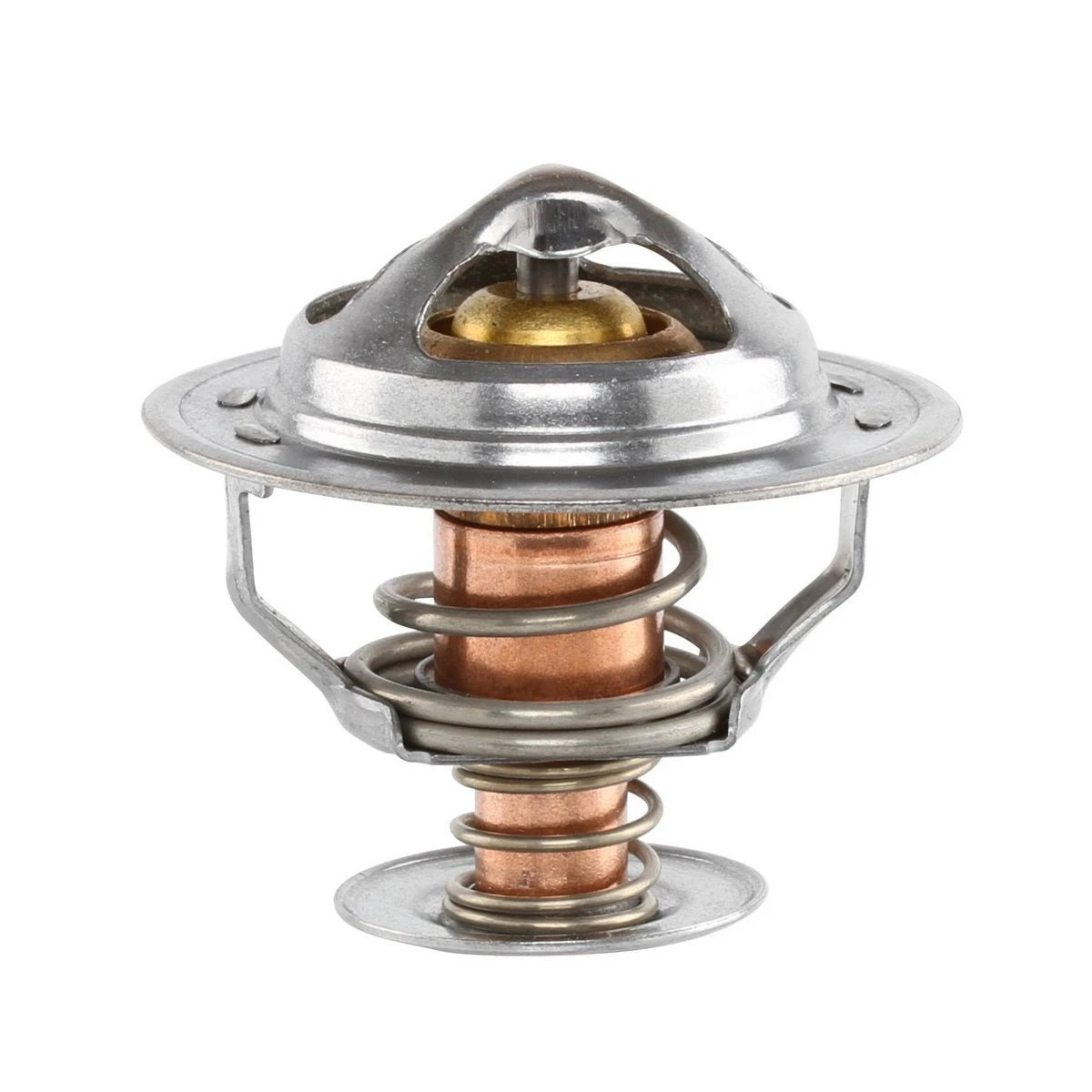

Tridon High Flow Thermostat TT2322-180 82°C Bypass Type

PRODUCT OVERVIEW

The Tridon High Flow Thermostat TT2322-180 is engineered to improve cooling system efficiency by increasing coolant flow through the engine. It is designed as a bypass style thermostat with a jiggle pin for reliable operation and temperature control.

KEY FEATURES

• High flow design for increased coolant circulation
• Helps maintain stable engine operating temperature
• Bypass style thermostat with jiggle pin for consistent performance
• Direct replacement design to suit the specified applications
• High flow version of the TT322 series thermostat

TECHNICAL SPECIFICATIONS

• Part number: TT2322-180
• Opening temperature: 82°C
• Flange diameter: 52 mm
• Foot diameter: 27.7 mm
• Overall height: 32 mm
• Type: High flow, bypass style, jiggle pin

APPLICATION NOTES

This thermostat is designed to upgrade cooling performance by allowing up to approximately 50% more coolant flow compared with standard units, reducing the need to use a lower temperature thermostat. Always confirm compatibility with your vehicle using the part number TT2322-180 before purchase or installation.
