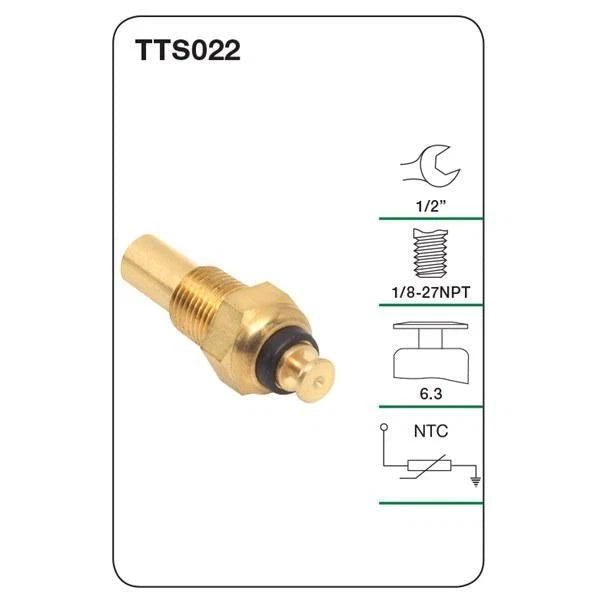

Tridon Water Temperature Sender Gauge TTS022 1/8-27 NPT Thread

PRODUCT OVERVIEW

The Tridon TTS022 Water Temperature Sender (Gauge) is designed to provide accurate coolant temperature signals to compatible temperature gauges. It is suitable for use in a wide range of automotive and light commercial applications where a matching thread and sender specification are required.

KEY FEATURES

• Part Number: TTS022
• Application: Water temperature sender for gauge
• Thread size: 1/8 - 27 NPT
• Hex size (spanner): 1/2"
• Engineered for reliable and consistent temperature readings

SPECIFICATIONS

• Brand: Tridon
• Part number: TTS022
• Thread type: NPT
• Thread size: 1/8 - 27
• Spanner size: 1/2" hex

INSTALLATION NOTES

• Confirm thread size and type match the receiving port before installation.
• Install into a clean, compatible coolant passage or housing.
• Use appropriate thread sealant suitable for coolant systems if required by the application.
• Tighten using a 1/2" spanner to the manufacturer-recommended torque, avoiding over-tightening.
• Ensure correct electrical connection to the matching temperature gauge circuit.

COMPATIBILITY

This sender is designed for use with compatible temperature gauges that are calibrated for the TTS022 specification. Always check the vehicle or gauge manufacturer documentation and any available fitment guide before purchase and installation.
