40mm Galvanised U-Bolt Kit for 1 1/2" Square Trailer Axles

PRODUCT OVERVIEW

This 40mm galvanised U-bolt kit is designed to securely clamp a single 1 1/2" (40mm) square trailer axle. Supplied with nyloc nuts, flat washers, fish plates and axle pads, it provides a strong, corrosion-resistant mounting solution for marine, boat and general trailer applications when used with 45mm wide trailer springs.

KEY FEATURES

• Durable galvanised steel finish for excellent corrosion resistance
• Load rating: 375kg per U-bolt (1500kg per set of four on a single axle)
• Engineered to suit 40mm (1 1/2") square trailer axles
• Compatible with 45mm wide trailer springs
• Includes nyloc nuts and flat washers for a secure, vibration-resistant clamp

SPECIFICATIONS

• Suits: 40mm (1 1/2") square axles
• Overall U-bolt length: 140mm (5.5")
• Material diameter: 1/2"
• Thread length: 55mm
• Thread type: 1/2" BSW
• Finish: galvanised steel
• Fasteners: nyloc nuts and flat washers included

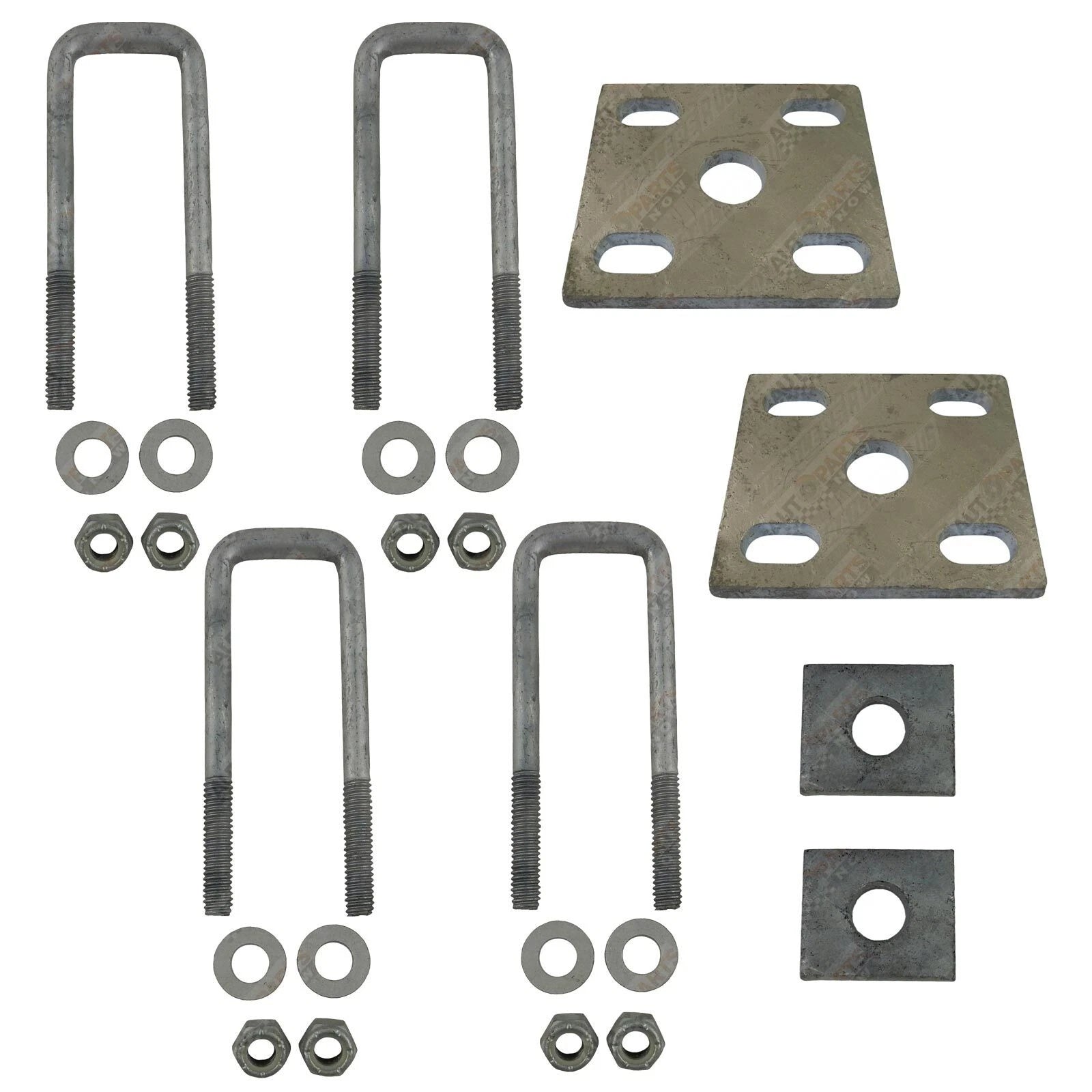

KIT CONTENTS

• 4 x 40mm (1 1/2") x 140mm (5.5") square galvanised U-bolts with nyloc nuts and flat washers
• 2 x galvanised slotted fish plates, 88mm x 100mm x 8mm
• 2 x galvanised axle pads, 40mm x 40mm x 8mm

HOW TO MEASURE U-BOLTS

Measure the inside distance between the legs of the U-bolt to determine the width. For example, 75mm U-bolts fit 75mm drawbars or chassis rails. The length of a U-bolt is measured from the inside of the curve to the end of the legs.
