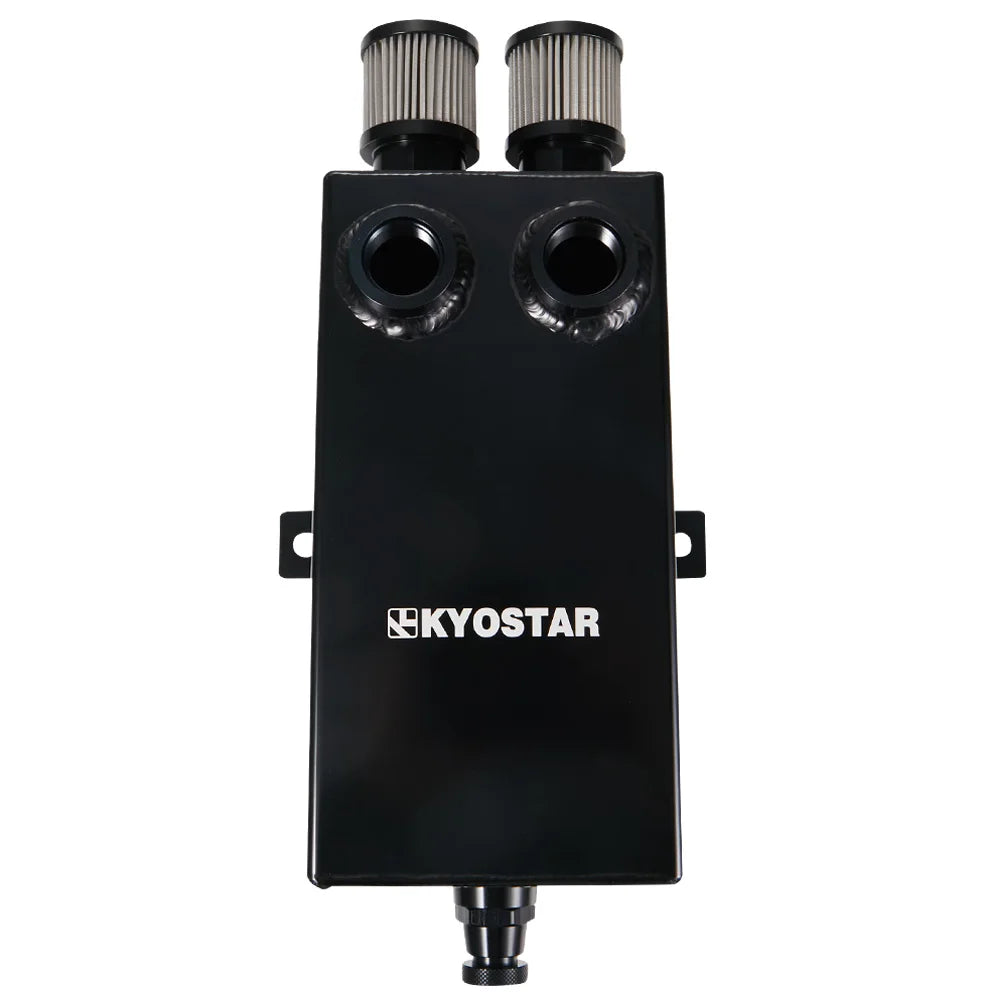

Universal 3 Litre Baffled Aluminium Oil Catch Tank with 2 x 12AN Ports, Breather Filter and 10AN Drain

Product Overview

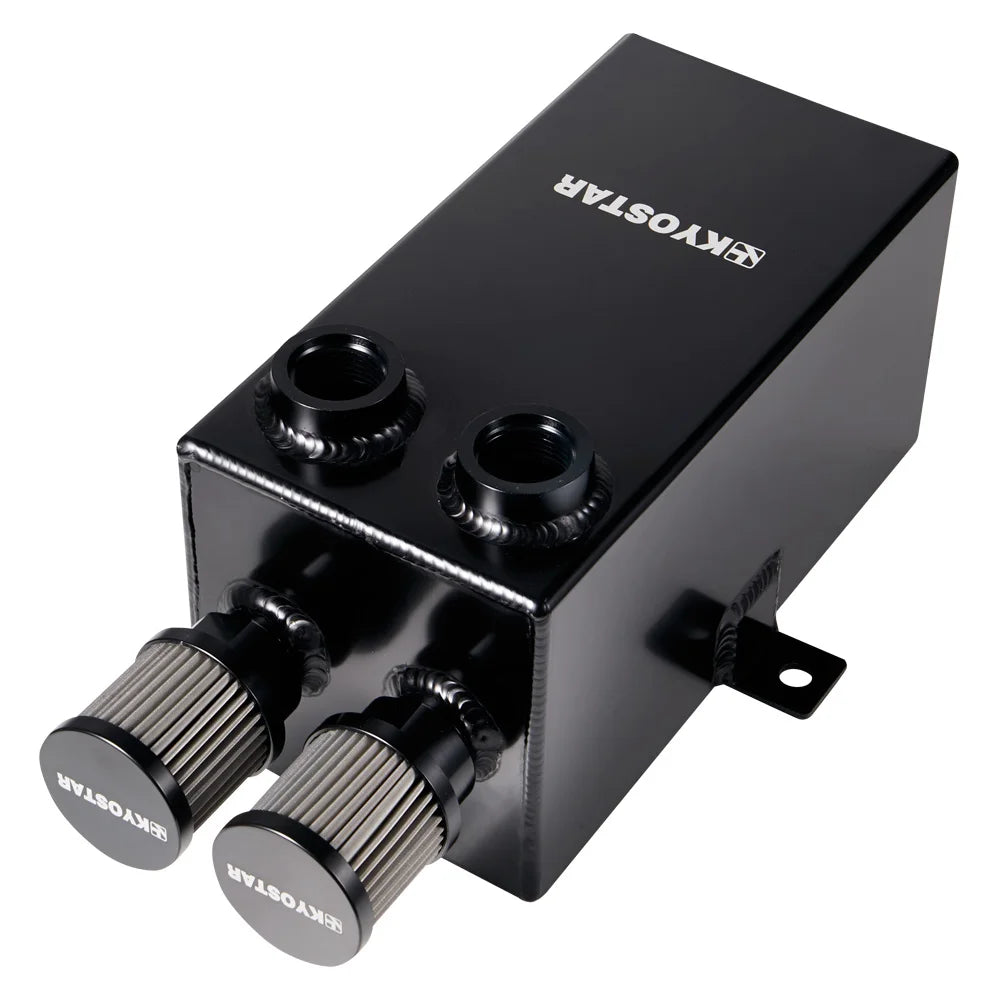

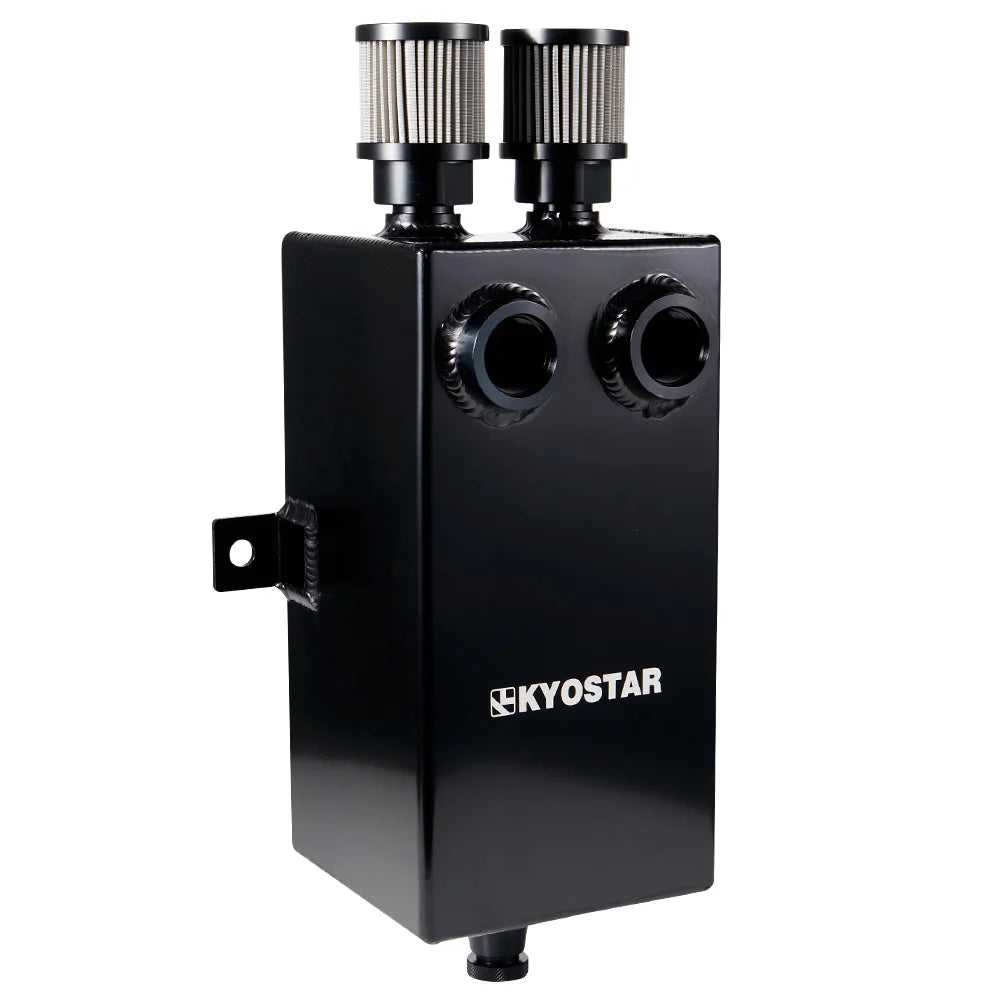

This universal 3 litre aluminium oil catch tank is baffled internally and comes with two 12AN ORB female inlet ports, a 12AN return or breather port with filter and a 10AN ORB female drain port. Its larger capacity makes it well suited to high-output, boosted and endurance engines that produce plenty of crankcase blow-by.

Key Features and Benefits

• 3 litre capacity
• Baffled internal design
• Two 12AN ORB female inlet ports
• Breather filter on the 12AN return port
• 10AN ORB female drain port

Vehicle Compatibility

This catch tank is listed as universal. Fitment is supplier-stated, so please confirm mounting space using the stated dimensions, along with your hose sizes and breather routing, before ordering. AN adaptors may be needed to connect to factory breather outlets.

Product Specifications

• Product type: oil catch tank
• Capacity: 3 litres
• Width: 125 mm (170 mm at brackets)
• Depth: 125 mm
• Height: 250 mm (375 mm with filter and drain)
• Ports: 2 x 12AN ORB inlet, 12AN breather, 10AN ORB drain
• Material: aluminium
• Packed weight: approximately 2.5 kg

Installation and Usage

Mount the tank upright in a cooler part of the engine bay using the brackets, leaving room below for the drain. Connect the crankcase breathers to the inlet ports with oil-resistant hose and suitable fittings, avoiding dips where oil could pool. Drain the tank regularly before fluid reaches the inlet ports and dispose of the contents responsibly. Inspect the breather filter periodically.

Package Contents

Catch tank with breather filter and drain, as described. Hoses and additional AN fittings are not itemised.

Important Fitment Notice

For help planning your breather setup, send us your VIN before ordering. Images are for reference only. In New Zealand, crankcase emissions must be managed appropriately, and venting vapour to atmosphere may affect emissions compliance and your Warrant of Fitness. Please include your engine type and current breather layout when you contact us, so we can advise on hose sizes and fittings.
