Universal 250kW High Performance Oil Catch Can with Filter

PRODUCT OVERVIEW

This universal high performance oil catch can is designed for vehicles up to 250 kW, providing efficient crankcase ventilation and oil vapour separation to help protect turbochargers and intake components.

KEY FEATURES

• Suitable for universal installation on vehicles up to 250 kW
• Integrated by-pass valve and crankcase pressure regulation valve
• Stainless steel mesh filter element, easy to remove and clean
• Large 25 mm inlet and outlet ports with 12.5 mm oil return
• Built-in pressure vent in cap to prevent crankcase over-pressure
• Vacuum limiting valve to regulate vacuum inside the can
• Adjustable mounting bracket swivels 180° for flexible positioning
• Strong, lightweight plastic construction

PERFORMANCE & BENEFITS

• Efficient separation of air and oil vapour using centrifugal flow
• Helps protect turbochargers and downstream components
• Low pressure loss design for minimal impact on engine breathing
• Can be used in closed or open crankcase ventilation systems
• Reduced engine oil consumption versus conventional open systems
• No electrical power required for operation

SERVICEABILITY

• Top cap allows full internal access without hose disconnection
• Cleanable stainless mesh filter for long service life
• Maintenance-friendly design with fixed hose fittings

INSTALLATION NOTES

• Universal fitment; position on engine or in engine bay as required
• Hoses and additional fittings may need to be purchased separately
• Professional installation is recommended for optimal performance

SPECIFICATIONS

• Application: Universal, up to 250 kW

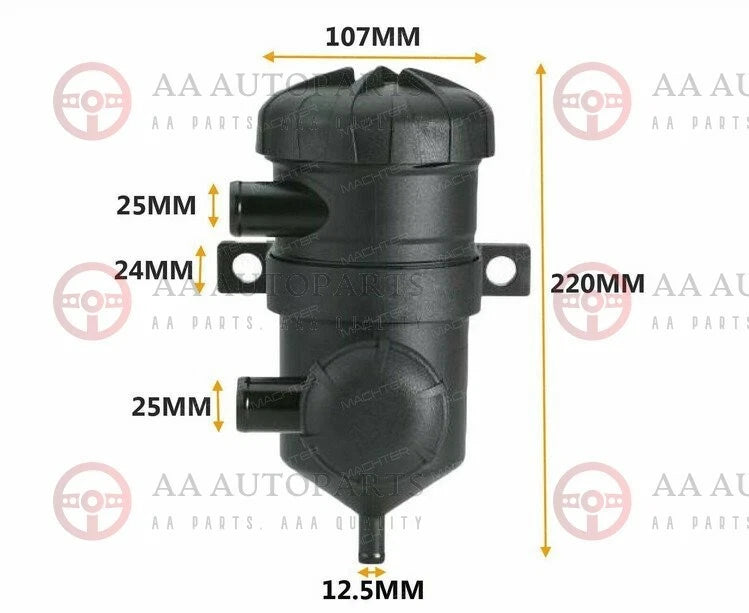

• Ports: 25 mm inlet and outlet, 12.5 mm oil return
• Part Number: OILCAN-001M
• Construction: Plastic body with stainless steel mesh filter

PACKAGE CONTENTS

• 1 x Universal oil catch can assembly
