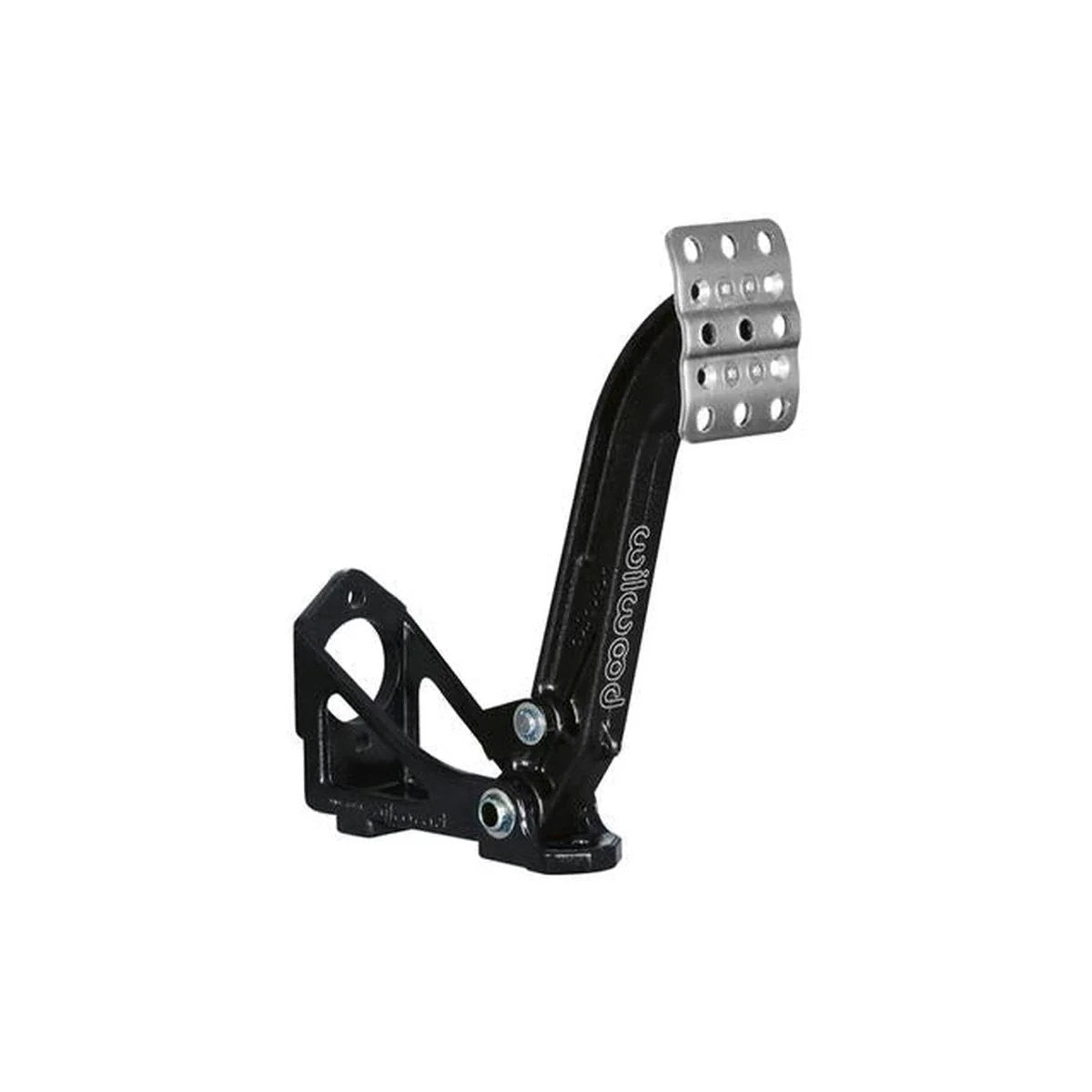

Wilwood 6:1 Floor Mount Clutch / Brake Pedal Assembly 340-13833

PRODUCT OVERVIEW

The Wilwood 6:1 floor mount clutch and brake pedal assembly (part number WB340-13833 / 340-13833) is designed for custom and performance applications requiring a compact, high-leverage pedal setup. The floor-mounted configuration simplifies installation where firewall or under-dash mounting is not suitable.

KEY FEATURES

• 6:1 pedal ratio for increased hydraulic pressure and improved pedal feel
• Floor mount design for use in custom, race, or retrofit applications
• Engineered by Wilwood for compatibility with matched master cylinder setups
• Durable construction suitable for motorsport and high-performance use
• Compact footprint to assist packaging in tight pedal box areas

APPLICATION NOTES

No specific vehicle compatibility is provided for this product. It is generally intended for custom installations, racing vehicles, or modified pedal box configurations. Always verify clearances, mounting points, and master cylinder compatibility before purchase and installation.

PART DETAILS

• Brand: Wilwood
• Part Number: WB340-13833
• Model Reference: 340-13833
• Configuration: Floor mount clutch / brake pedal assembly
• Pedal Ratio: 6:1

INSTALLATION

Professional installation is strongly recommended. Ensure the pedal assembly is mounted to a structurally sound surface and that all linkage, master cylinders, and hydraulic components are correctly aligned and adjusted according to Wilwood guidelines and relevant motorsport or road regulations.
