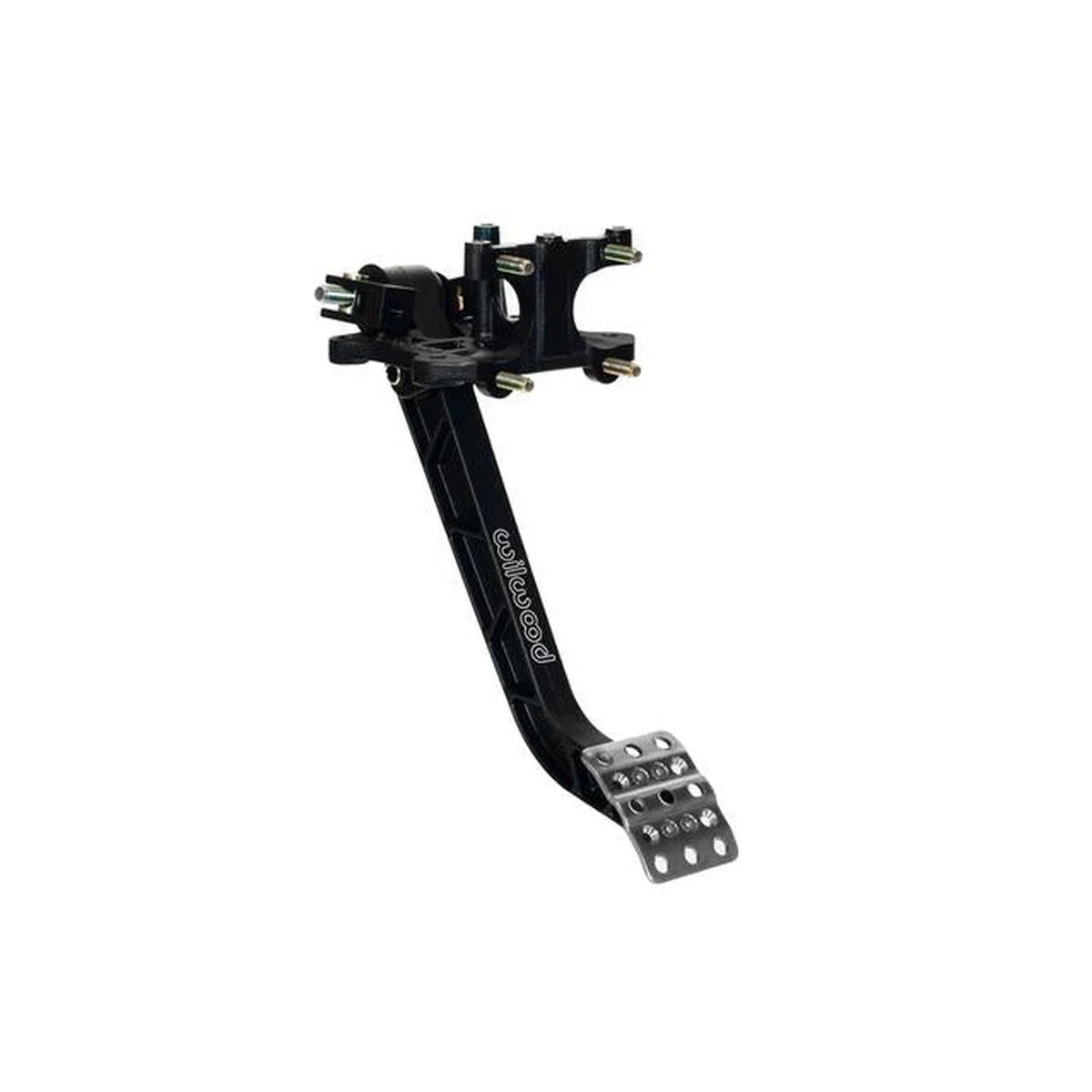

Wilwood 6.25:1 Reverse Swing Clutch & Brake Pedal Assembly 340-12509

Product Overview

The Wilwood clutch and brake pedal assembly with a 6.25:1 pedal ratio and reverse swing mount design provides a compact, high-leverage solution for custom brake and clutch installations. Part number 340-12509 is engineered for performance and precise pedal feel in motorsport and custom vehicle applications.

Key Features

• 6.25:1 pedal ratio for increased hydraulic leverage and improved control
• Reverse swing mount configuration for under-dash or firewall mounting
• Operates both clutch and brake master cylinders in a single assembly
• Compact layout suitable for custom, race, and retrofit installations
• Durable construction for consistent pedal feel and long service life

Part Details

• Part Number: 340-12509
• Type: Clutch and brake pedal assembly, reverse swing mount
• Pedal Ratio: 6.25:1
• Category: Transmission & drivetrain / braking control
• Application: Custom, motorsport, and retrofit installations

Fitment Notice

This is a universal-style performance component and is not supplied with specific vehicle compatibility data. Custom mounting and setup may be required. Always verify dimensions, clearances, and hydraulic requirements before purchase and installation.

Installation Recommendation

Professional installation is recommended. Correct mounting, pedal travel, pushrod alignment, and master cylinder selection are critical to brake and clutch performance and overall vehicle safety.
