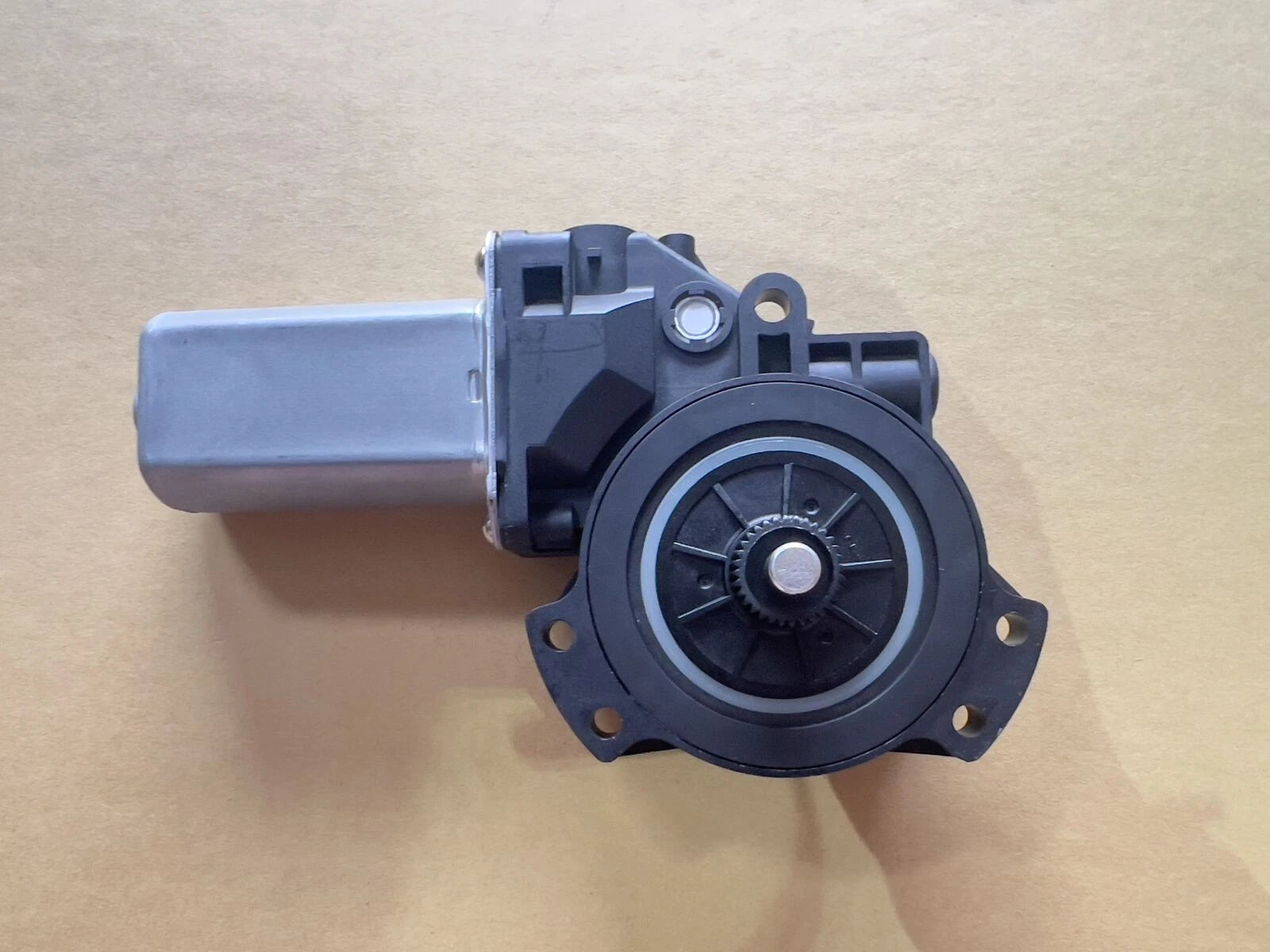

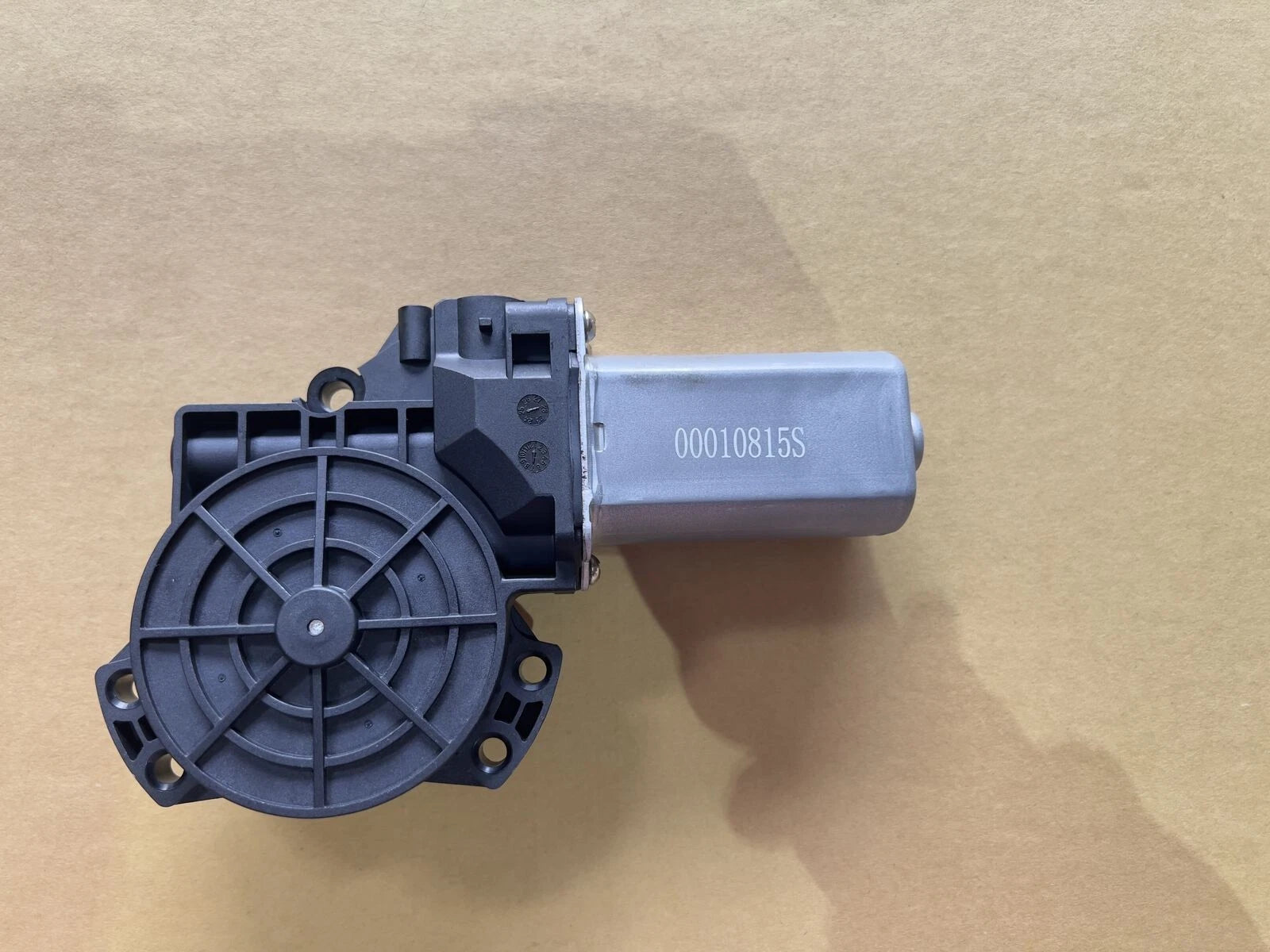

Window Lift Motor 2-Pin Rear for Hyundai ix35 LM & Santa Fe CM

PRODUCT OVERVIEW

This electric window lift motor is a high-quality aftermarket replacement designed for select Hyundai rear doors. It restores smooth and reliable power window operation.

KEY FEATURES

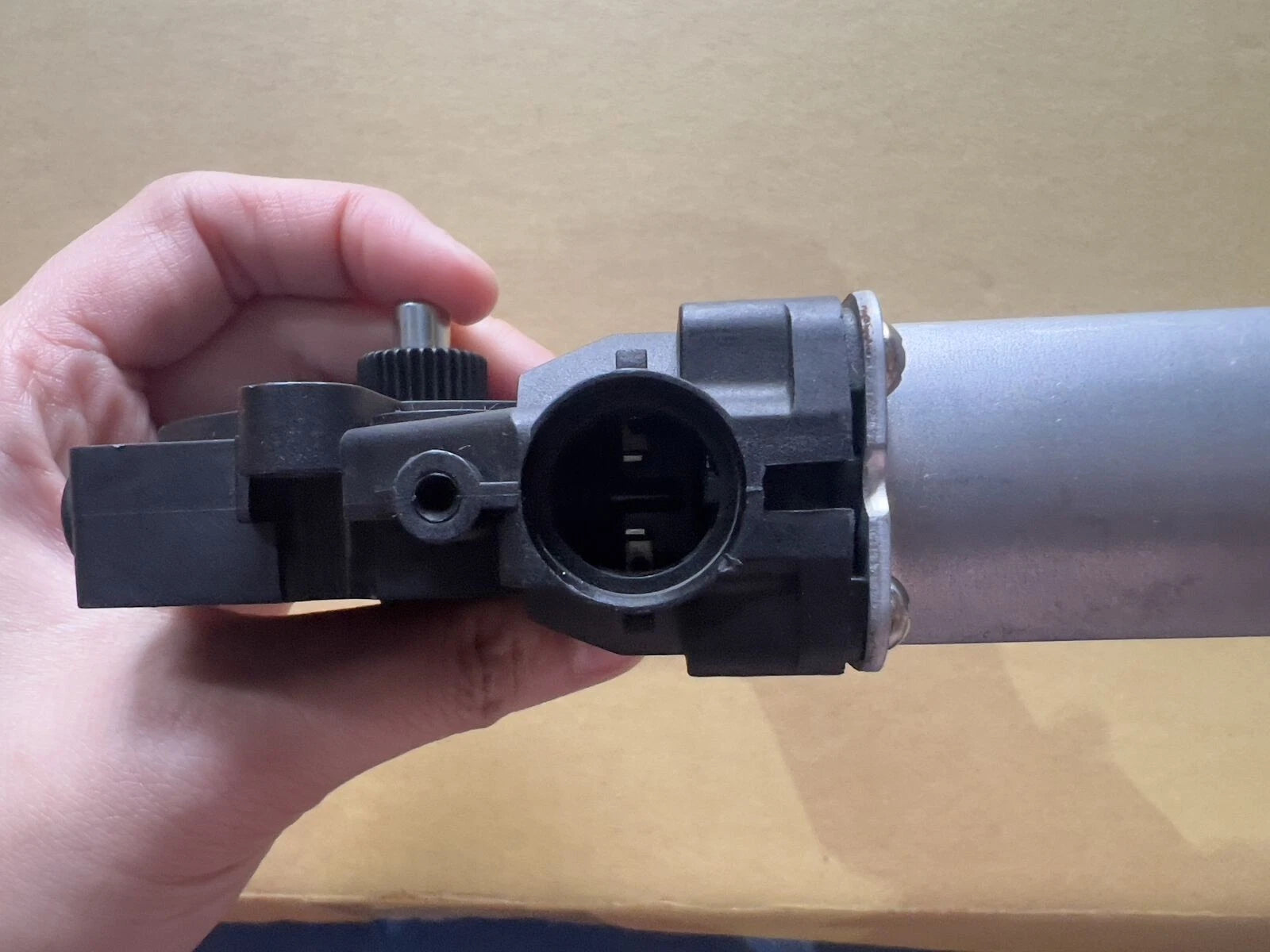

• Electric window lift motor with 2-pin connector
• Designed for rear door applications
• High-quality aftermarket construction
• Brand new component, not reconditioned
• Supplied as 1 piece
• Part number: 102634M2F
• 12-month manufacturer warranty (part only)

VEHICLE POSITION

• Rear left (rear passenger side)
• Rear right (rear driver side)

FITMENT

• Hyundai ix35 LM 11/2009 - 05/2015 (rear left)
• Hyundai Santa Fe CM 11/2005 - 09/2012 (rear right)

Always compare the part number, connector type, and product photos with your original motor before purchase.

ANTI-PINCH FUNCTION SETUP

If the vehicle uses an anti-pinch one-touch window system, the motor may require initialization after installation.

• Install the motor in the door and connect it to the one-touch window switch before testing.
• Operate the window up to the top. If the glass drops after reaching the top, perform a reset.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window fully to the top.
• Step 2: Hold the switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly to move the window fully to the bottom.
• Step 4: Hold the switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window back to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until successful.

INSTALLATION & NOTES

• Professional installation by a qualified automotive mechanic is recommended.
• Part is intended as a repair/replacement component.
• Colour and finish may vary slightly from images due to lighting and screen settings.
• Images are of the actual product supplied; match to your original part before ordering.
