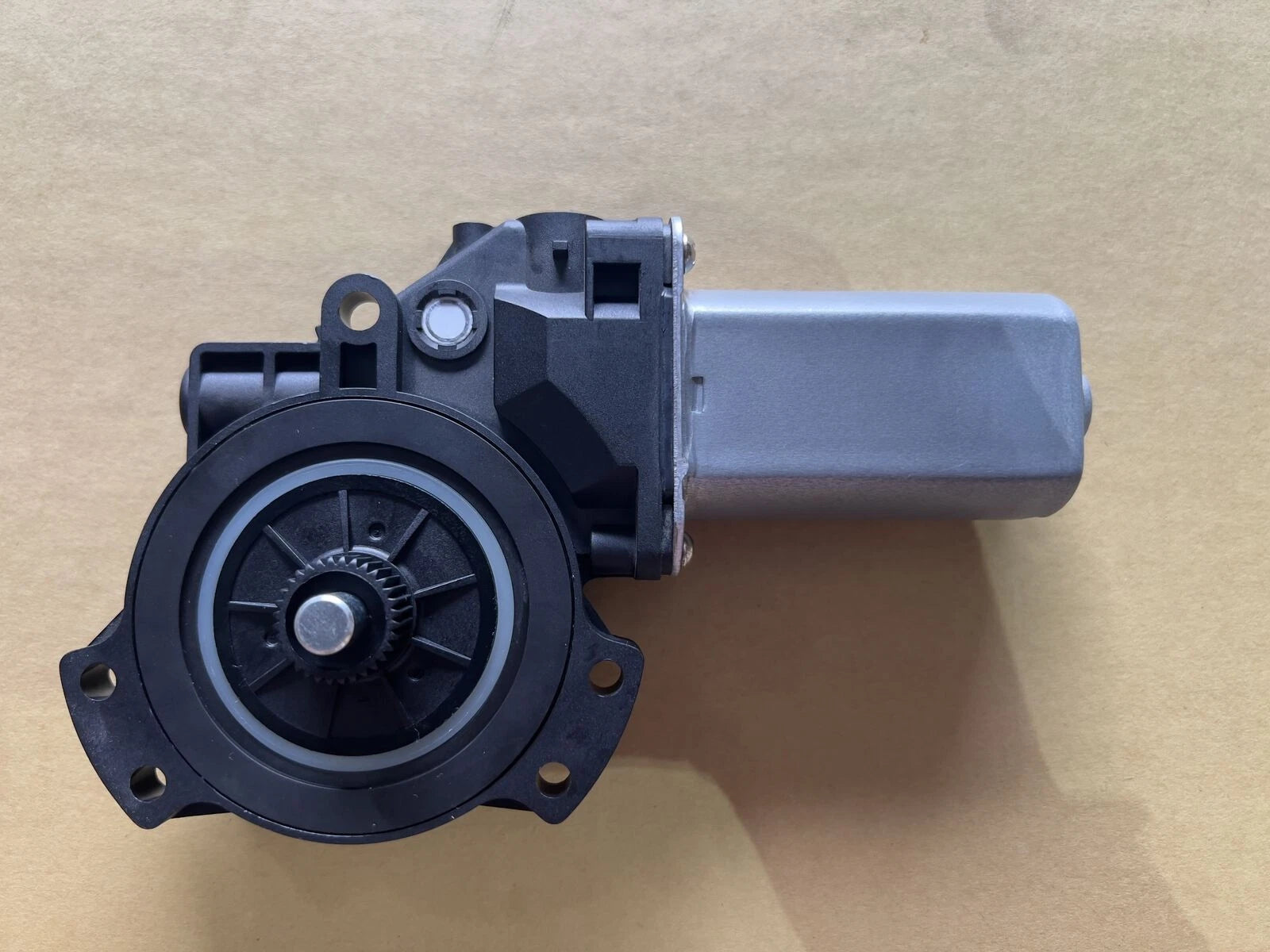

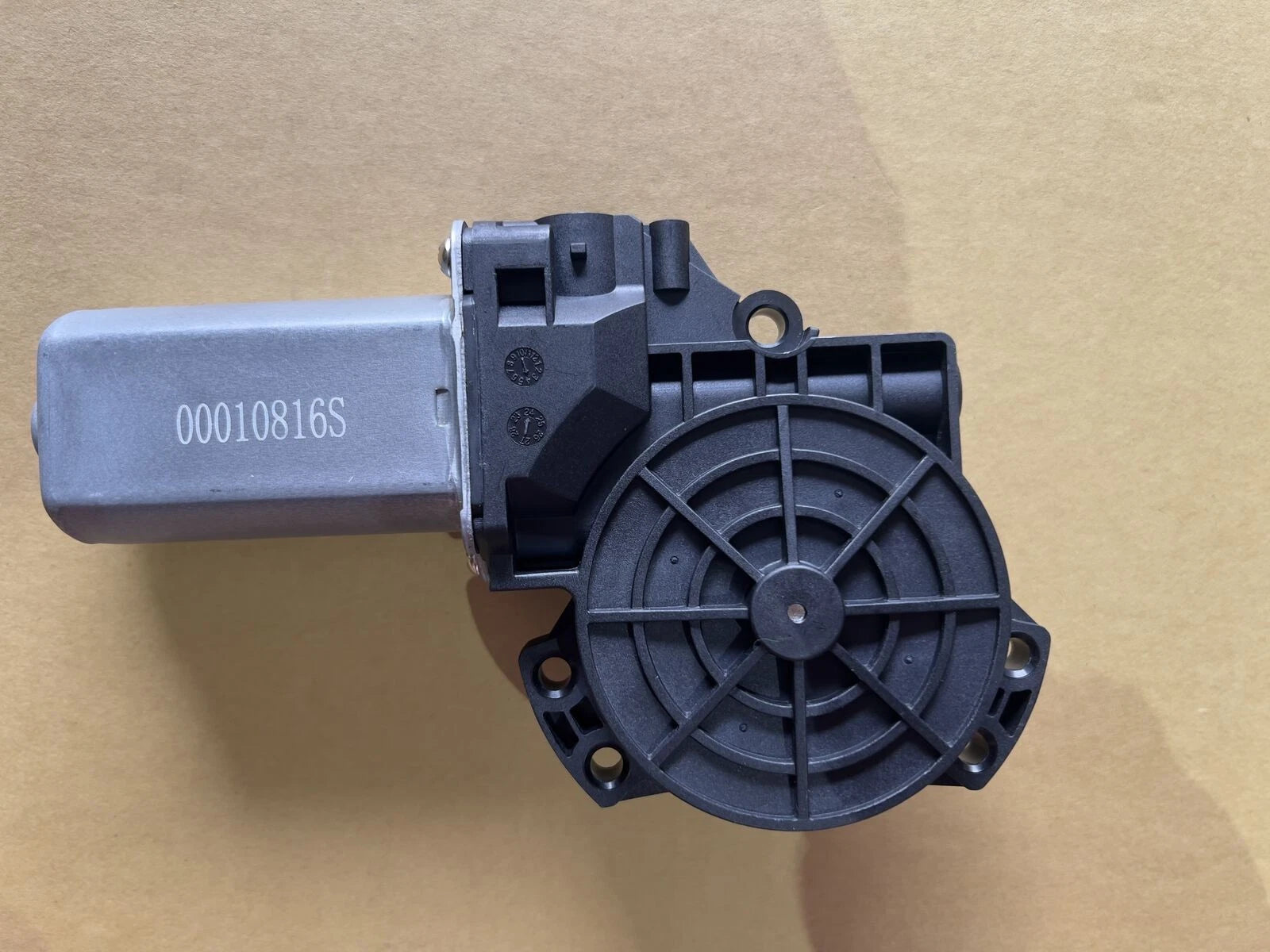

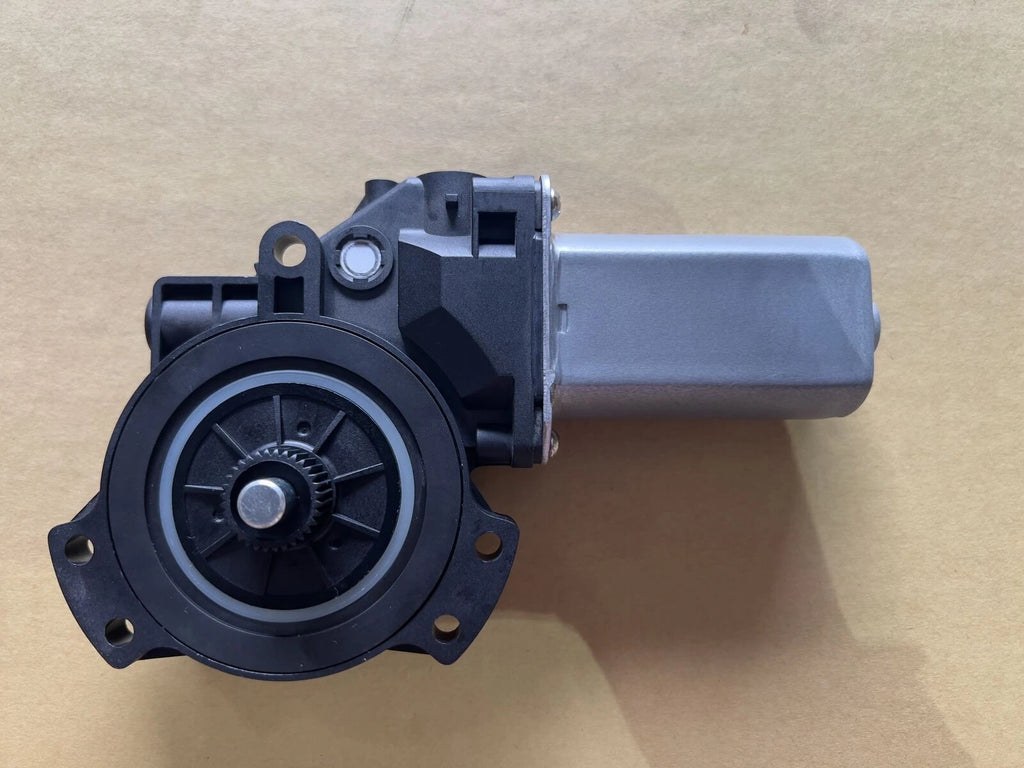

Rear Electric Window Lift Motor 2-Pin for Hyundai ix35 & Santa Fe

PRODUCT OVERVIEW

This brand new electric window lift motor is a high-quality aftermarket replacement for selected Hyundai rear doors. It features a 2-pin connector and is designed for reliable, smooth window operation.

KEY FEATURES

• Electric window lift motor for rear door applications
• 2-pin motor connector
• High-quality aftermarket construction
• Direct replacement for the original motor
• Supplied as 1 piece
• 12-month manufacturer warranty (part only)

SPECIFICATIONS

• Product: Window lift motor
• Operating mode: Electric

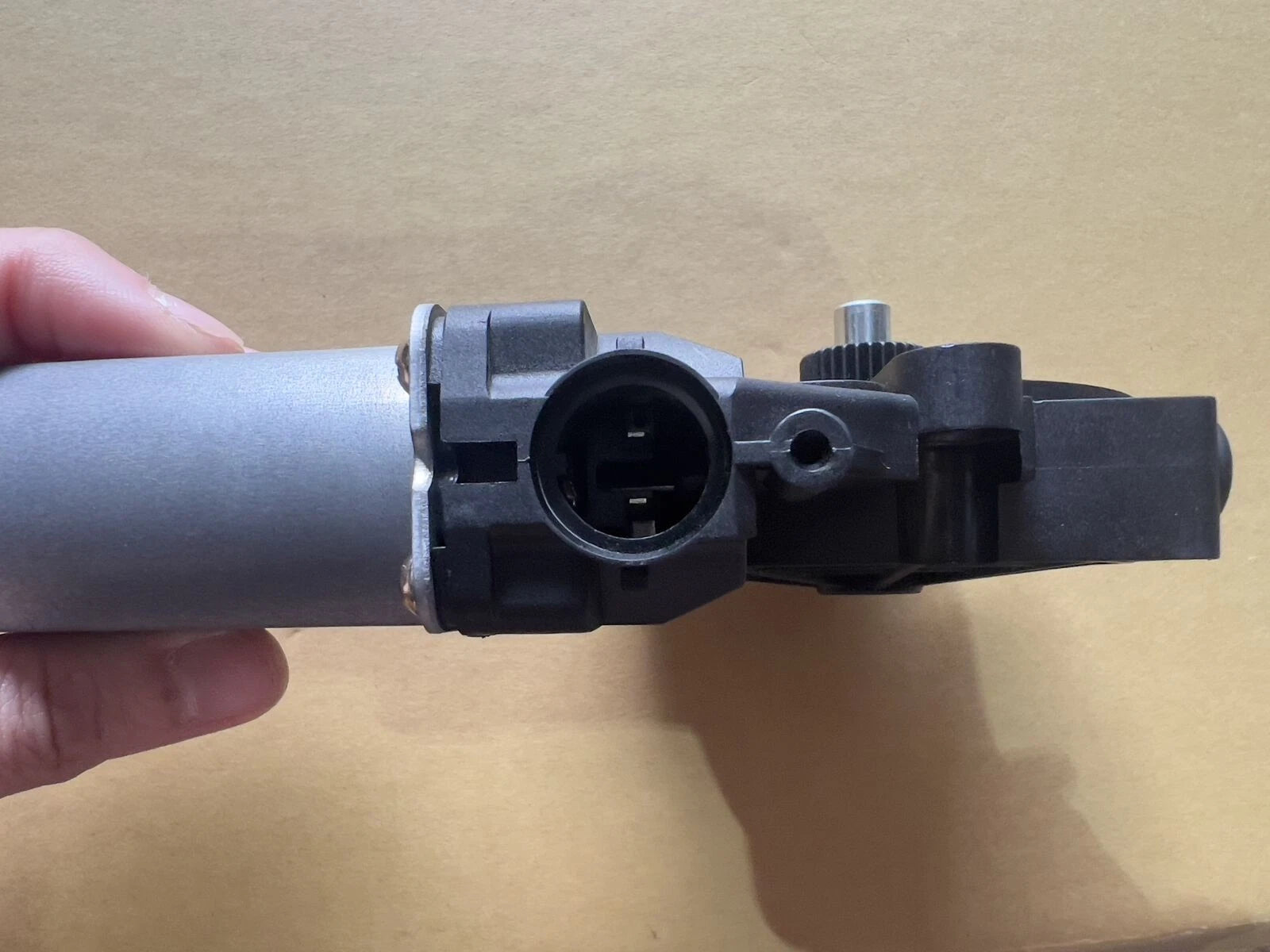

• Motor connector: 2 pins
• Condition: Brand new
• Part type: High-quality aftermarket
• MPN / Item No.: 102635M2F
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

PLACEMENT ON VEHICLE

• Rear left (rear passenger side)
• Rear right (rear driver side)

VEHICLE COMPATIBILITY

• Hyundai ix35 LM 10/2013 – 05/2015 (rear right)
• Hyundai Santa Fe CM 11/2005 – 09/2012 (rear left)

Always compare the product photos and part number (where available) with your original motor to confirm compatibility before purchase.

ANTI-PINCH FUNCTION RESET (WHERE APPLICABLE)

If your vehicle uses an anti-pinch one-touch window system, the motor may require resetting after installation.

• Do not test the motor before it is fully installed in the door.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up and check that the window travels fully to the top.
• If the window drops after reaching the top, perform the reset steps below.

• Step 1: Pull the window switch briefly to move the window slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch again to move the window to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset procedure until the anti-pinch function is correctly set.

INSTALLATION & NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Part is supplied for repair and replacement purposes only.
• Product colour and finish may appear slightly different due to screen and lighting variations.
• Images shown are of the actual style of product supplied.

Please ensure this window lift motor matches your existing part and vehicle specifications before ordering.
