MRBF Marine Rated Battery Fuse Block Kit, Single Stud M8, 250A

PRODUCT OVERVIEW

Marine Rated Battery Fuse (MRBF) block kit with single 5/16" (M8) terminal stud and 250A fuse. Designed for high-current DC applications including inverters, dual battery systems and main battery protection.

KEY FEATURES

• Reliable high-current protection for circuits up to 300A
• Compact, space-saving MRBF fuse block for tight installations

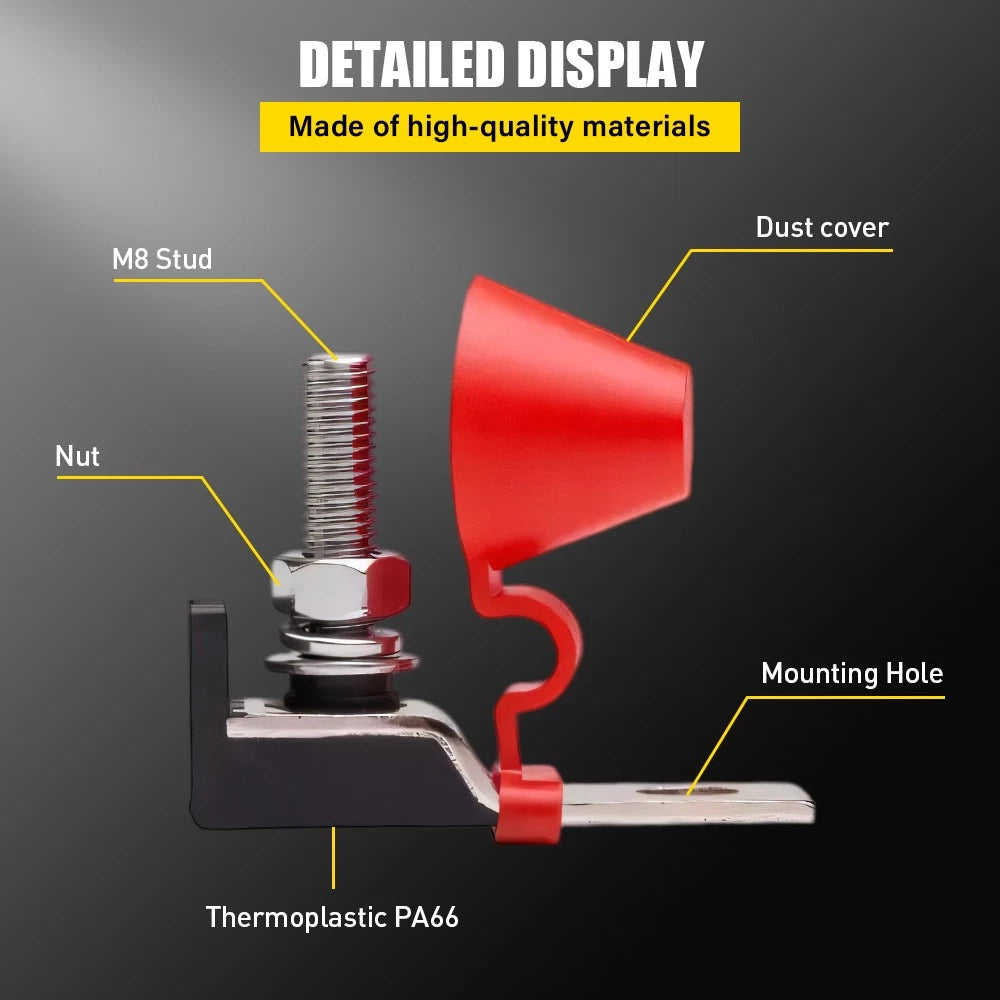

• Durable metal and plastic construction with insulating cap

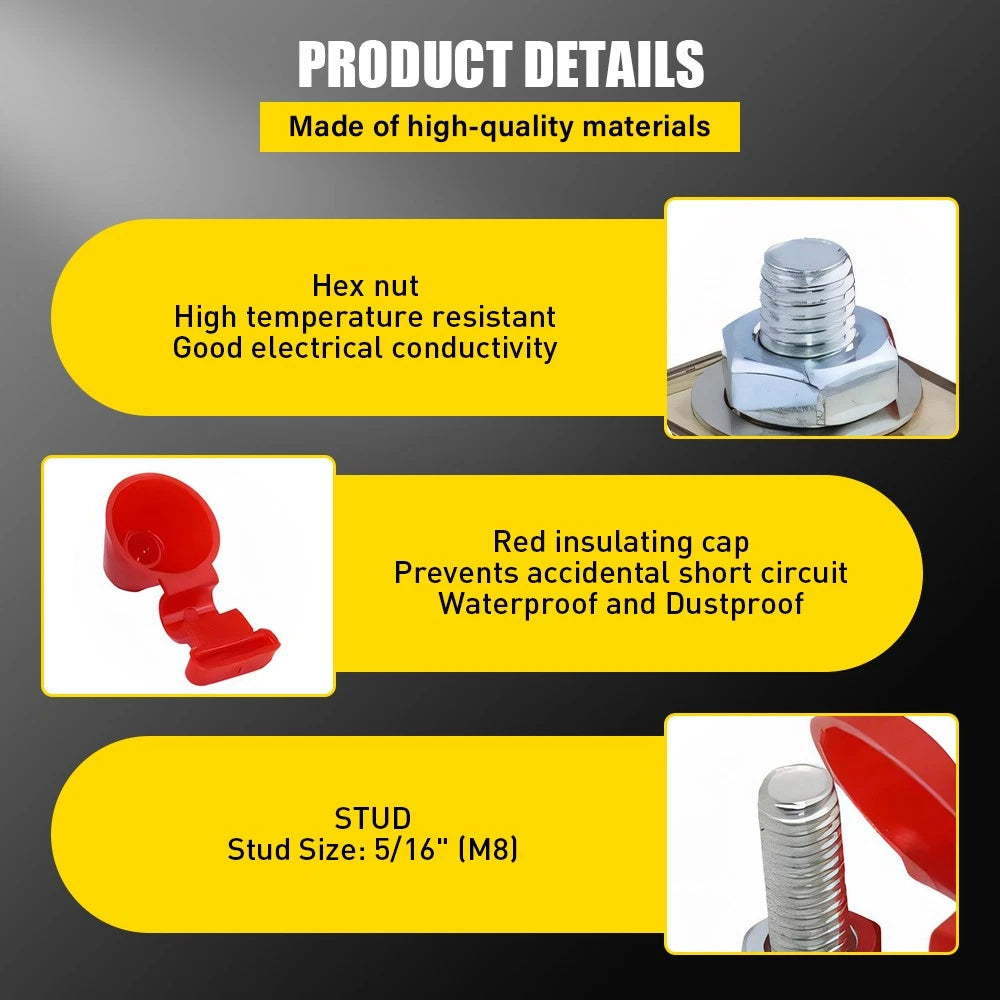

• Single 5/16" (M8) stud allows stacking of ring terminals
• Top post terminal style, universal fitment
• Stable performance for demanding marine and automotive DC systems

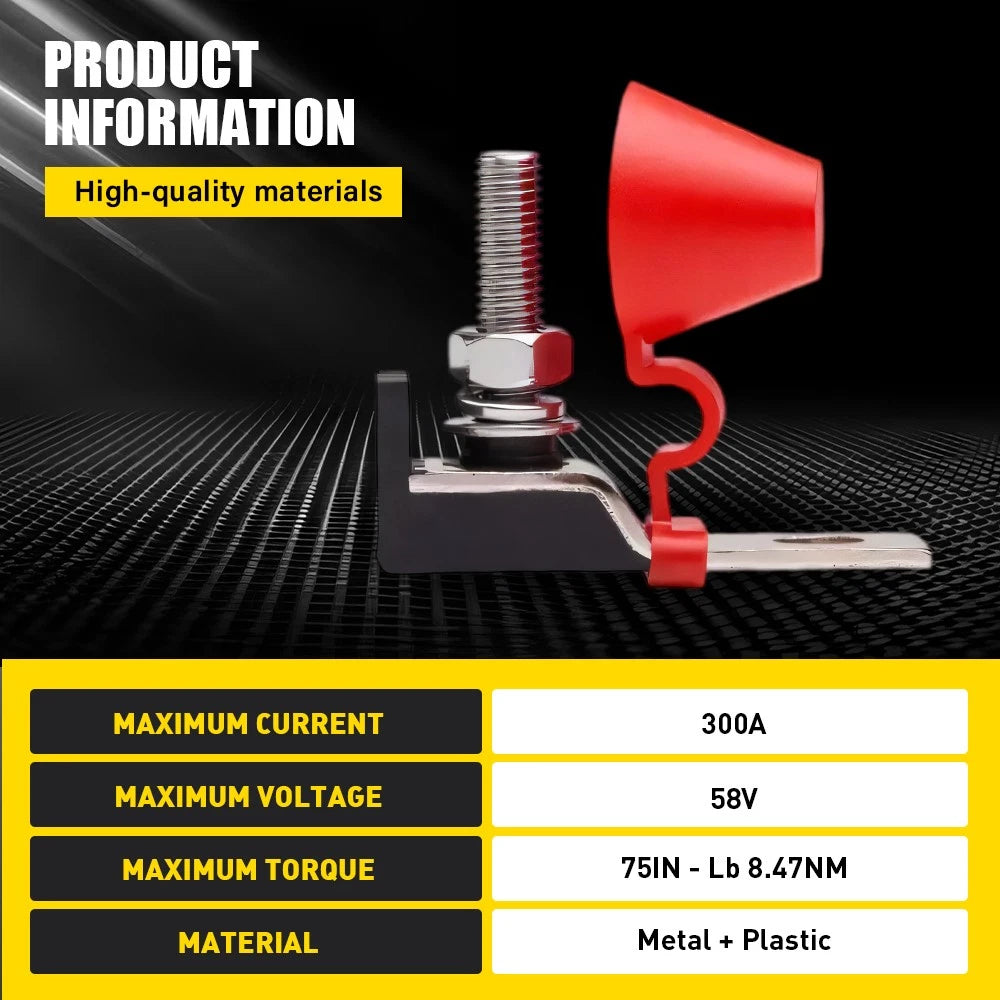

SPECIFICATIONS

• Type: MRBF battery terminal mount fuse block kit
• Included fuse rating: 250A
• Maximum current capacity (block): 300A
• Maximum voltage: 58V DC
• Terminal stud: Single 5/16" (M8), screw connector
• Material: Metal + plastic
• Colour: Silver, brushed finish
• Working temperature: -40 ~ 60℃
• Max torque: 75 in-lb (8.47 Nm)

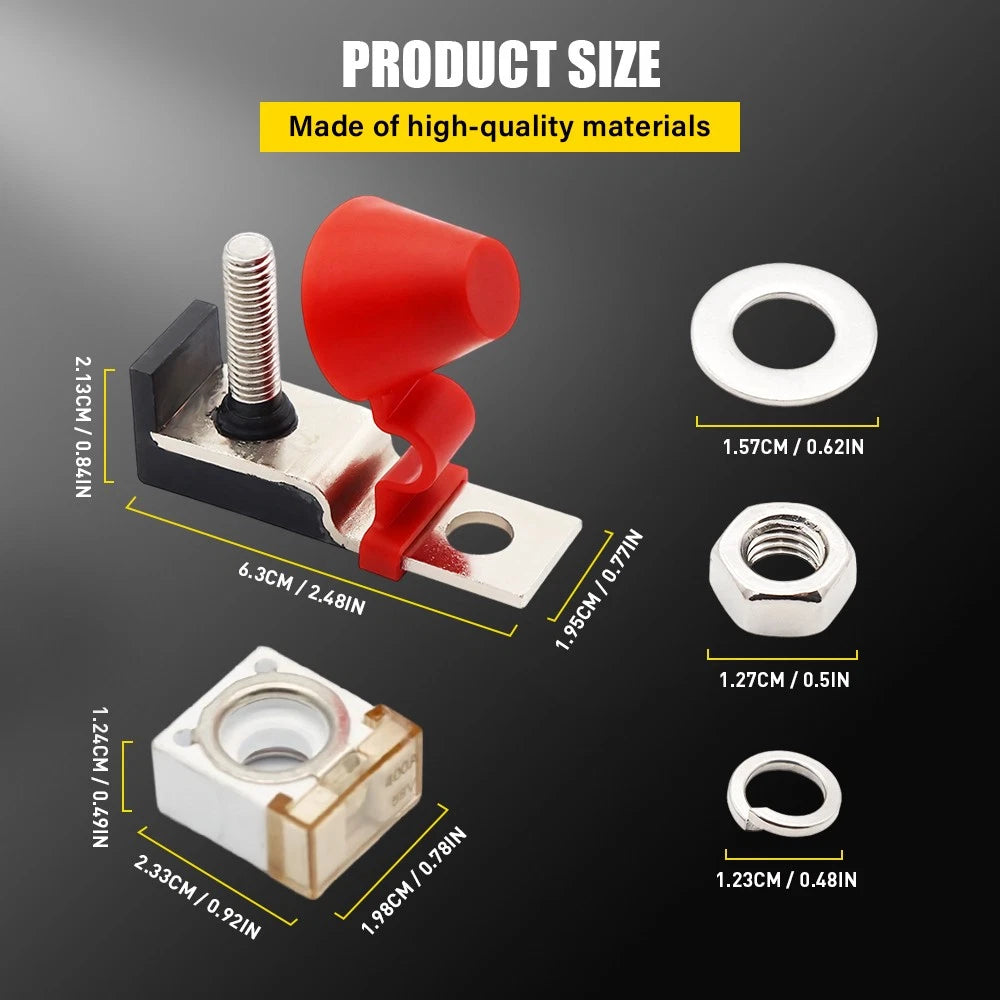

• Item length: 6.3 cm (2.48 in)
• Item width: 1.95 cm (0.77 in)
• Item height: 2.13 cm (0.84 in)
• Packaging weight: 90 g
• Packaging size: 19 x 14 x 3 cm
• Connector type: Screw
• Universal fitment: Yes

APPLICATIONS

• Battery terminal mount protection for main DC feeds
• Inverters and high-current auxiliary circuits
• Dual battery and split-charge systems
• Marine, RV, 4x4, caravan and general automotive DC power distribution

INSTALLATION

• Designed to mount directly on battery terminal
• Uses standard M8 hardware for easy fitment
• Supports stacking of multiple ring terminals on the single stud
• No modification required to install in most applications
• Professional installation recommended for optimal safety

PACKAGE CONTENTS

• 1 x 250A MRBF fuse
• 1 x MRBF fuse block with single 5/16" (M8) terminal stud

ALTERNATE NAMES

• Battery terminal mount MRBF fuse block kit
• Single stud terminal fuse block kit
• Battery fuse block
